固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

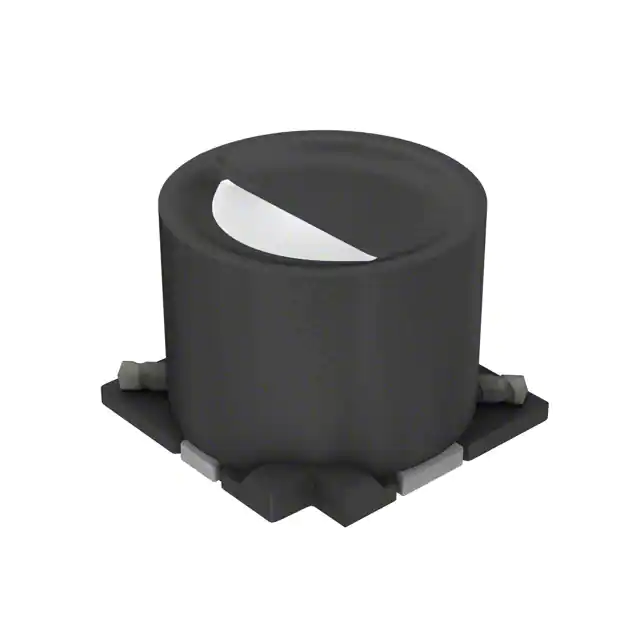

SLF7045T-680MR60-PFFIXED IND 68UH 770MA 210MOHM SMD TDK Corporation |
36,370 |
|
数据手册 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 770 mA | 600mA | Shielded | 210mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
CLF7045NIT-4R7N-DFIXED IND 4.7UH 4.1A 23MOHM SMD TDK Corporation |
25,518 |
|
数据手册 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 4.1A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|

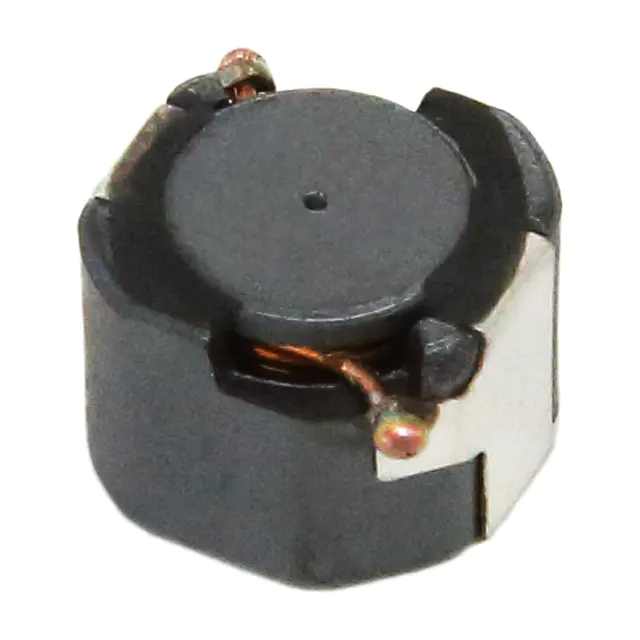

CLF6045T-221M-DFIXED IND 220UH 500MA 936MOHM SM TDK Corporation |
740 |
|
数据手册 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | 410mA | Shielded | 936mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-2R2N-DFIXED IND 2.2UH 4A 19.5 MOHM SMD TDK Corporation |
1,735 |
|
数据手册 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4 A | 3.9A | Shielded | 19.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|

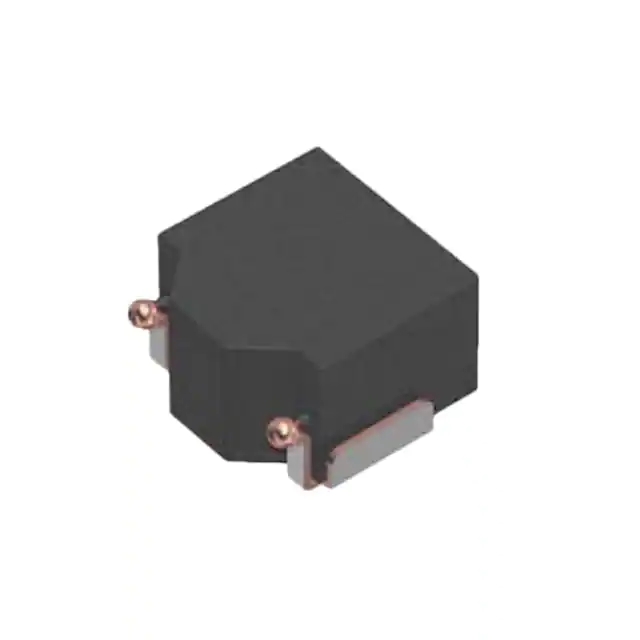

SPM3012T-1R5M-LRFIXED IND 1.5UH 2.9A 81.4MOHM SM TDK Corporation |
23,173 |
|
数据手册 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.9 A | 4.3A | Shielded | 81.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

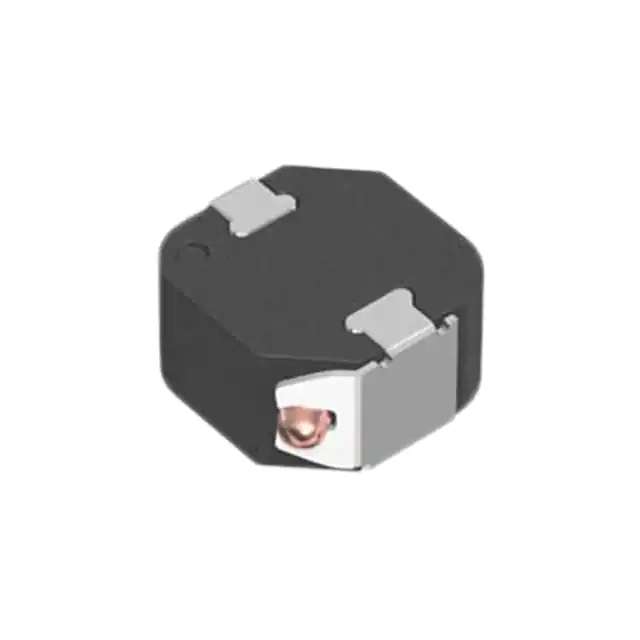

SPM5030T-1R0MFIXED IND 1UH 10.1A 11.44MOHM SM TDK Corporation |
1,341 |
|
数据手册 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 10.1 A | 8.5A | Shielded | 11.44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
ADL3225VM-2R2M-TL001FIXED IND 2.2UH 1.22A 180MOHM SM TDK Corporation |
11,008 |
|
数据手册 |
ADL-VM | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.22 A | 1.05A | Unshielded | 180mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
BCL322520RT-330M-DINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
2,035 |
|
数据手册 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 990 mA | 920mA | Shielded | 670mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
SPM7054VT-680M-DFIXED IND 68UH 2.1A 0.222OHM SMD TDK Corporation |
2,000 |
|
数据手册 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 68 µH | ±20% | 2.1 A | 3.1A | Shielded | 222mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
BCL322515RT-4R7M-DINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
7,266 |
|
数据手册 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.08 A | 1.71A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.059" (1.50mm) |
