固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMPLA5030S-4R7MTFIXED IND 4.7UH 4.6A 53 MOHM SMD Abracon LLC |
1,915 |
|
数据手册 |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 4.6 A | 6A | Shielded | 53mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLA5030S-3R3MTFIXED IND 3.3UH 5A 38 MOHM SMD Abracon LLC |
1,830 |
|
数据手册 |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 5 A | 8A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLA5030S-100MTFIXED IND 10UH 2.75A 128MOHM SMD Abracon LLC |
1,980 |
|
数据手册 |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 2.75 A | 3.5A | Shielded | 128mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
ASPIAIG-F6030-R56M-TFIXED IND 560NH 22A 3.31MOHM SMD Abracon LLC |
645 |
|
数据手册 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 22 A | 25A | Shielded | 3.31mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6030 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
ASPIAIG-F1040-R15N-TFIXED IND 150NH 43A 0.6 MOHM SMD Abracon LLC |
2,613 |
|
数据手册 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 43 A | 75A | Shielded | 0.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ASPIAIG-F1040-R68M-TFIXED IND 680NH 22A 2.7 MOHM SMD Abracon LLC |
440 |
|
数据手册 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 22 A | 39A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ASPIAIG-F1040-R30M-TFIXED IND 300NH 32A 1.1 MOHM SMD Abracon LLC |
424 |
|
数据手册 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 300 nH | ±20% | 32 A | 60A | Shielded | 1.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
AMPLA5030S-2R2MTFIXED IND 2.2UH 5.5A 35 MOHM SMD Abracon LLC |
1,933 |
|
数据手册 |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 5.5 A | 9A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
ASPI-1040HI-1R0M-T05FIXED IND 1UH 18A 3.3 MOHM SMD Abracon LLC |
1,229 |
|
数据手册 |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±20% | 18 A | 28A | Unshielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|

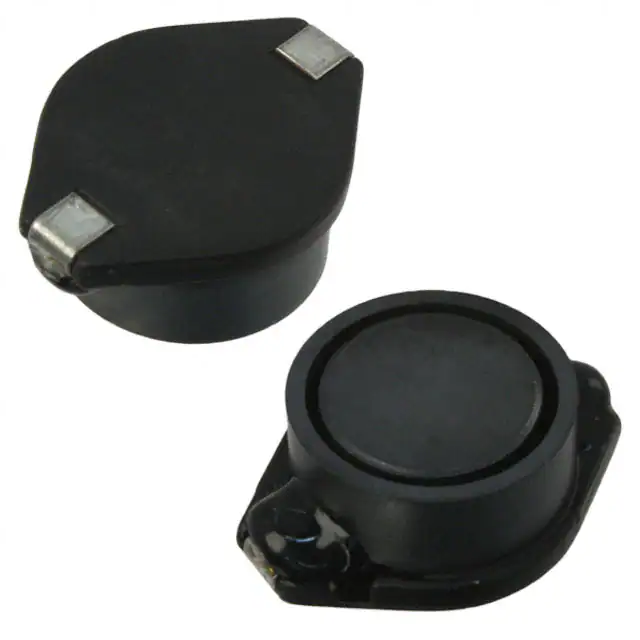

ASPI-1306S-102M-TFIXED IND 1MH 530MA 2.01 OHM SMD Abracon LLC |
1,512 |
|
数据手册 |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 530 mA | 800mA | Shielded | 2.01Ohm Max | - | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
