固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0603F-4R7J-TFIXED IND 4.7UH 160MA 2.7OHM SMD Abracon LLC |
1,035 |
|
数据手册 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 160 mA | - | Unshielded | 2.7Ohm Max | - | 50MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

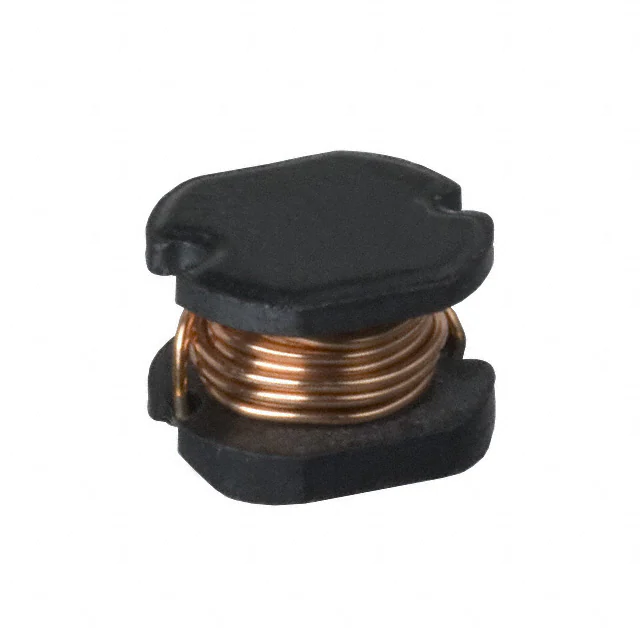

ASPI-0705-331K-TFIXED IND 330UH 400MA 1.26OHM SM Abracon LLC |
5,298 |
|
数据手册 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 400 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
AIUR-03-2R2MFIXED IND 2.2UH 3.2A 21 MOHM TH Abracon LLC |
1,719 |
|
数据手册 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.2 A | 6.5A | Unshielded | 21mOhm Max | 20 @ 7.96MHz | 100MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
ASPI-0705-101K-TFIXED IND 100UH 720MA 430MOHM SM Abracon LLC |
2,373 |
|
数据手册 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | - | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
ASPI-0705-390K-TFIXED IND 39UH 1.1A 160 MOHM SMD Abracon LLC |
1,981 |
|
数据手册 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 1.1 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
AIAP-02-681KFIXED IND 680UH 490MA 1.61OHM TH Abracon LLC |
1,010 |
|
数据手册 |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 680 µH | ±10% | 490 mA | - | Unshielded | 1.61Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
AIAC-1008C-27NK-TFIXED IND 27NH 600MA 13.9MOHM SM Abracon LLC |
3,284 |
|
数据手册 |
AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27 nH | ±10% | 600 mA | - | Unshielded | 13.9mOhm Max | 70 @ 300MHz | 1.6GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | 0.087" (2.20mm) |
|
|
AIAC-0805C-33NK-TFIXED IND 33NH 500MA 18.7MOHM SM Abracon LLC |
2,701 |
|
数据手册 |
AIAC-0805C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±10% | 500 mA | - | Unshielded | 18.7mOhm Max | 70 @ 300MHz | 1.6GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.112" L x 0.071" W (2.85mm x 1.80mm) | 0.083" (2.10mm) |
|
|
AIAC-1008C-6N8K-TFIXED IND 6.8NH 1.2A 4 MOHM SMD Abracon LLC |
2,170 |
|
数据手册 |
AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 6.8 nH | ±10% | 1.2 A | - | Unshielded | 4mOhm Max | 80 @ 300MHz | 3GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | 0.087" (2.20mm) |
|

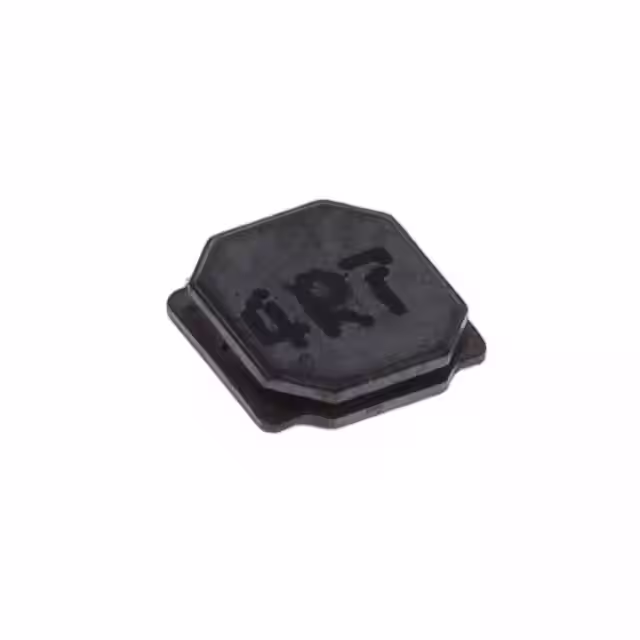

ASPI-0410FS-4R7M-TFIXED IND 4.7UH 900MA 210MOHM SM Abracon LLC |
4,450 |
|
数据手册 |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | - | Shielded | 210mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
