固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIUR-08-470KFIXED IND 47UH 2.5A 83 MOHM TH Abracon LLC |
1,208 |
|
数据手册 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.5 A | - | Unshielded | 83mOhm Max | - | - | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|

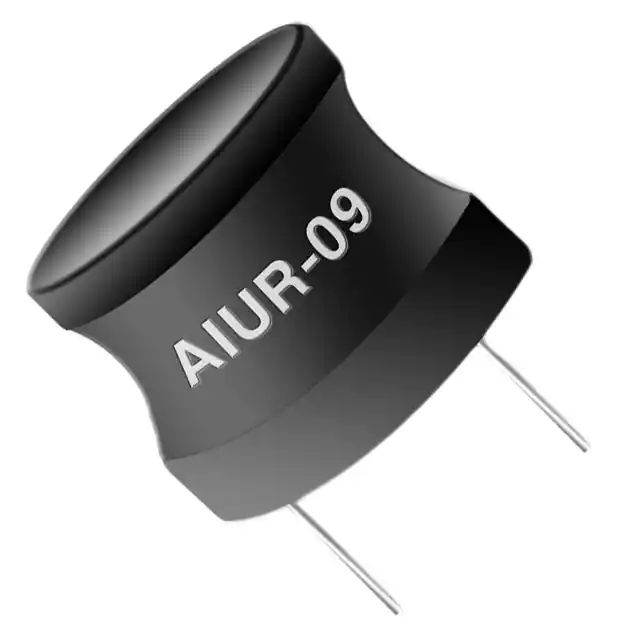

AIUR-09-181KFIXED IND 180UH 840MA 620MOHM TH Abracon LLC |
1,200 |
|
数据手册 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 840 mA | - | Unshielded | 620mOhm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-101KFIXED IND 100UH 1.3A 360 MOHM TH Abracon LLC |
1,194 |
|
数据手册 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.3 A | - | Unshielded | 360mOhm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|

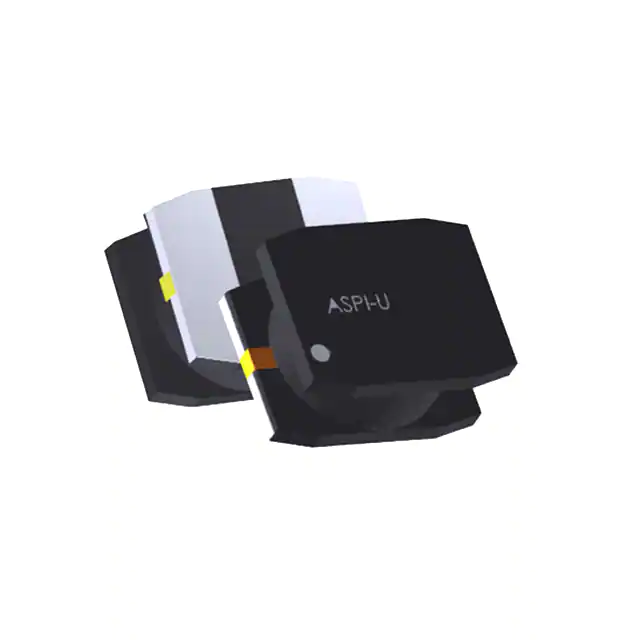

ASPI-U201610-R33M-TFIXED INDUCTOR 330NH 4.1A SMD Abracon LLC |
3,940 |
|
数据手册 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ASPI-2515-6R8M-T2FIXED IND 6.8UH 900MA 295MOHM SM Abracon LLC |
13,211 |
|
数据手册 |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 900 mA | 950mA | Shielded | 295mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
AISC-0603F-1R2J-TFIXED IND 1.2UH 260MA 1.1OHM SMD Abracon LLC |
7,959 |
|
数据手册 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 260 mA | - | Unshielded | 1.1Ohm Max | - | 370MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
AISC-0603F-R33J-TFIXED IND 330NH 510MA 290MOHM SM Abracon LLC |
7,145 |
|
数据手册 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±5% | 510 mA | - | Unshielded | 290mOhm Max | - | 730MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
AISC-0603F-1R5J-TFIXED IND 1.5UH 240MA 1.3OHM SMD Abracon LLC |
4,947 |
|
数据手册 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 240 mA | - | Unshielded | 1.3Ohm Max | - | 340MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
AISC-0603F-R27J-TFIXED IND 270NH 630MA 240MOHM SM Abracon LLC |
4,715 |
|
数据手册 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 630 mA | - | Unshielded | 240mOhm Max | - | 780MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
AISC-0603F-R12J-TFIXED IND 120NH 670MA 180MOHM SM Abracon LLC |
2,858 |
|
数据手册 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 670 mA | - | Unshielded | 180mOhm Max | - | 1.34GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
