固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPIAIG-F1040-330M-TFIXED IND 33UH 3.5A 112 MOHM SMD Abracon LLC |
480 |
|
数据手册 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ASPIAIG-F1040-100M-TFIXED IND 10UH 7.5A 30 MOHM SMD Abracon LLC |
1,960 |
|
数据手册 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

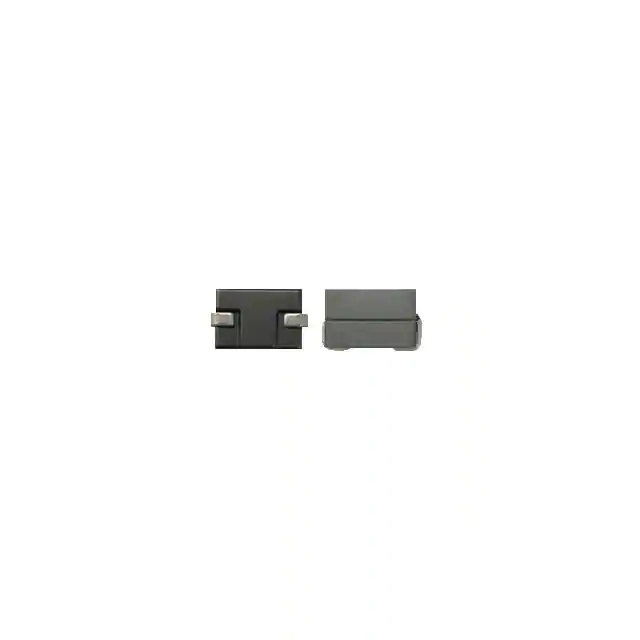

AMSLA-1280-R22K-TIND 0.22UH 50A 0.31M Abracon LLC |
1,918 |
|
数据手册 |
AMSLA-1280 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 220 nH | ±10% | 50 A | 54A | Shielded | 0.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.276" (7.00mm) |
|
ASPI-1306S-220M-TFIXED IND 22UH 3.1A 59 MOHM SMD Abracon LLC |
1,925 |
|
数据手册 |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.1 A | 6A | Shielded | 59mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
AMDLA1306S-3R3MTFIXED IND 3.3UH 19A 6.2MOHM SMD Abracon LLC |
847 |
|
数据手册 |
AMDLA1306S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 19 A | 22.5A | Shielded | 6.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|

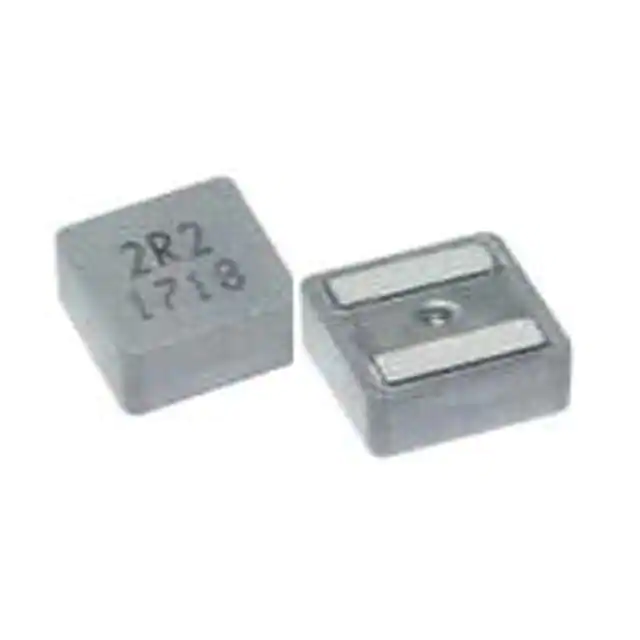

ASPIAIG-Q7050-2R2M-TFIXED IND 2.2UH 14A 6.4MOHM SMD Abracon LLC |
678 |
|
数据手册 |
ASPIAIG-Q7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 14 A | 17A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.201" (5.10mm) |
|

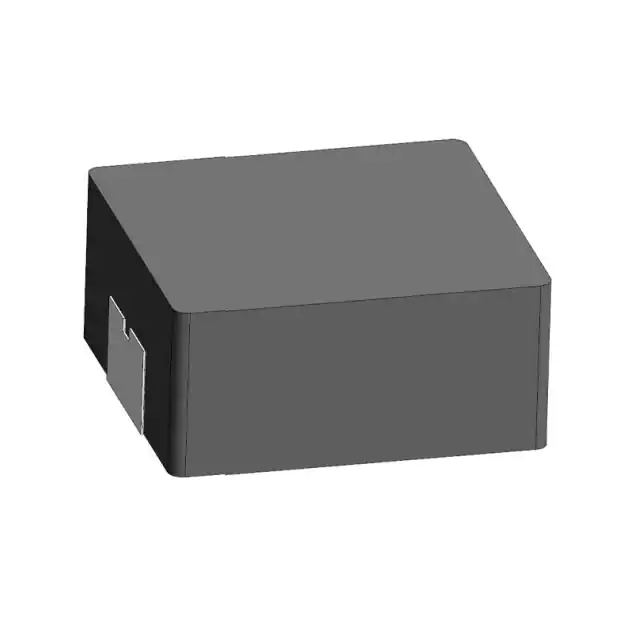

AMPLA1306S-100MTFIXED IND 10UH 10A 16.5 MOHM SMD Abracon LLC |
132 |
|
数据手册 |
AMPLA1306S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
AIUR-15-151KFIXED IND 150UH 2.7A 110 MOHM TH Abracon LLC |
954 |
|
数据手册 |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2.7 A | - | Unshielded | 110mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
.jpg)
|
AIRD-01-470KFIXED IND 47UH 2.8A 62 MOHM TH Abracon LLC |
364 |
|
数据手册 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.8 A | 11A | Unshielded | 62mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
|
ASPIAIG-F1265-100M-TFIXED IND 10UH 10A 16.5 MOHM SMD Abracon LLC |
996 |
|
数据手册 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1265 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
