固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-0.67-115FIXED IND 115UH 670MA 400MOHM SM Amgis, LLC |
4,365 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 115 µH | ±20% | 670 mA | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|
|
SWS-0.54-173FIXED IND 173UH 540MA 600MOHM SM Amgis, LLC |
3,992 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 173 µH | ±20% | 540 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|
|
SWS-0.44-252FIXED IND 252UH 440MA 900MOHM SM Amgis, LLC |
4,782 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 252 µH | ±20% | 440 mA | - | Unshielded | 900mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|
SH150S-0.44-252FIXED IND 252UH 440MA 900MOHM SM Amgis, LLC |
2,338 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 252 µH | ±20% | 440 mA | - | Unshielded | 900mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|

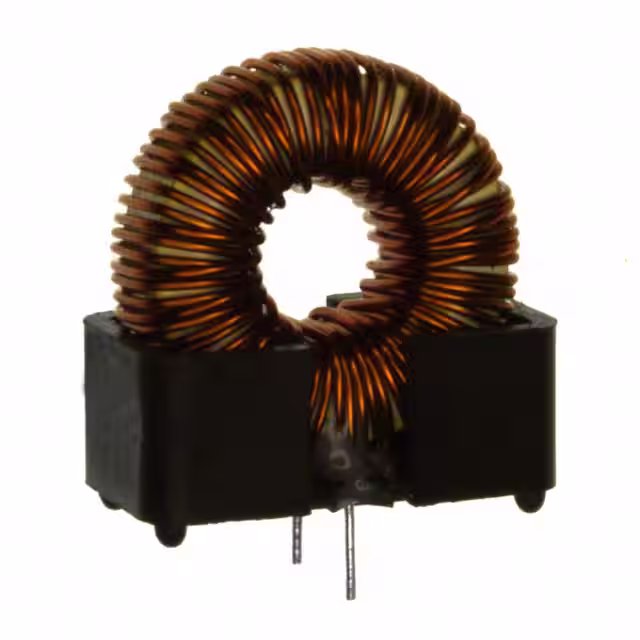

SH50C-0.9-267FIXED IND 267UH 900MA 180MOHM TH Amgis, LLC |
3,527 |
|
数据手册 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 267 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SWS-0.83-248FIXED IND 248UH 830MA 600MOHM SM Amgis, LLC |
2,290 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
|
SWS-0.68-377FIXED IND 377UH 680MA 1 OHM SMD Amgis, LLC |
4,221 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 377 µH | ±20% | 680 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
|
SH150S-0.68-377FIXED IND 377UH 680MA 1 OHM SMD Amgis, LLC |
2,713 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 377 µH | ±20% | 680 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|
|
SWS-1.81-18FIXED IND 18UH 1.81A 60 MOHM SMD Amgis, LLC |
2,080 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 18 µH | ±20% | 1.81 A | - | Unshielded | 60mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|
|
SH150S-1.81-18FIXED IND 18UH 1.81A 60 MOHM SMD Amgis, LLC |
2,794 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 18 µH | ±20% | 1.81 A | - | Unshielded | 60mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
