固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

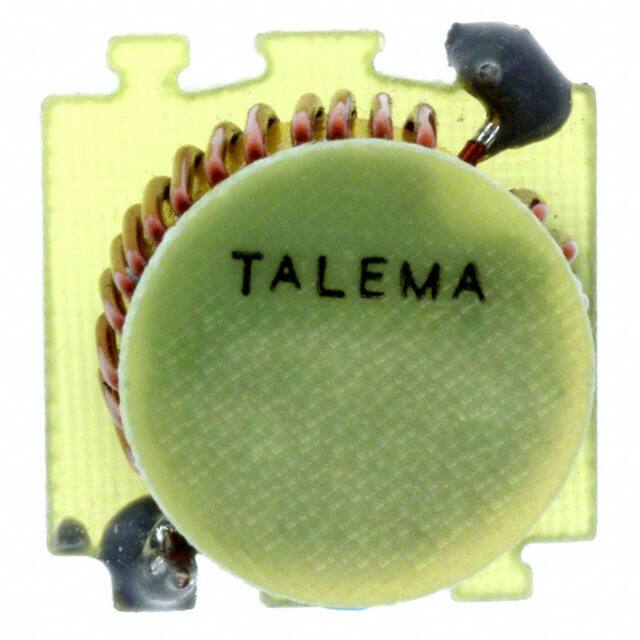

SWT-3.0-47FIXED IND 47UH 3A 50 MOHM TH Amgis, LLC |
1,767 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.422" (10.71mm) |
|
SWC-3.0-47FIXED IND 47UH 3A 50 MOHM TH Amgis, LLC |
2,824 |
|
数据手册 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
SWS-3.00-17FIXED IND 17UH 3A 50 MOHM SMD Amgis, LLC |
2,377 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
|
SWS-2.74-24FIXED IND 24UH 2.74A 70 MOHM SMD Amgis, LLC |
4,928 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 24 µH | ±20% | 2.74 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
SWC-2.0-150FIXED IND 150UH 2A 100 MOHM TH Amgis, LLC |
2,457 |
|
数据手册 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SWS-1.48-26FIXED IND 26UH 1.48A 100MOHM SMD Amgis, LLC |
1,156 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 26 µH | ±20% | 1.48 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|
SH150S-1.48-26FIXED IND 26UH 1.48A 100MOHM SMD Amgis, LLC |
2,566 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 26 µH | ±20% | 1.48 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
SWC-1.4-220FIXED IND 220UH 1.4A 140 MOHM TH Amgis, LLC |
2,324 |
|
数据手册 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
SWC-0.64-470FIXED IND 470UH 640MA 160MOHM TH Amgis, LLC |
3,747 |
|
数据手册 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 470 µH | ±20% | 640 mA | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SWT-0.34-39FIXED IND 39UH 340MA 800 MOHM TH Amgis, LLC |
1,620 |
|
数据手册 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 39 µH | ±20% | 340 mA | - | Unshielded | 800mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.217" (5.50mm) |
