固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150S-1.00-54FIXED IND 54UH 1A 200 MOHM SMD Amgis, LLC |
270 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 54 µH | ±20% | 1 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|

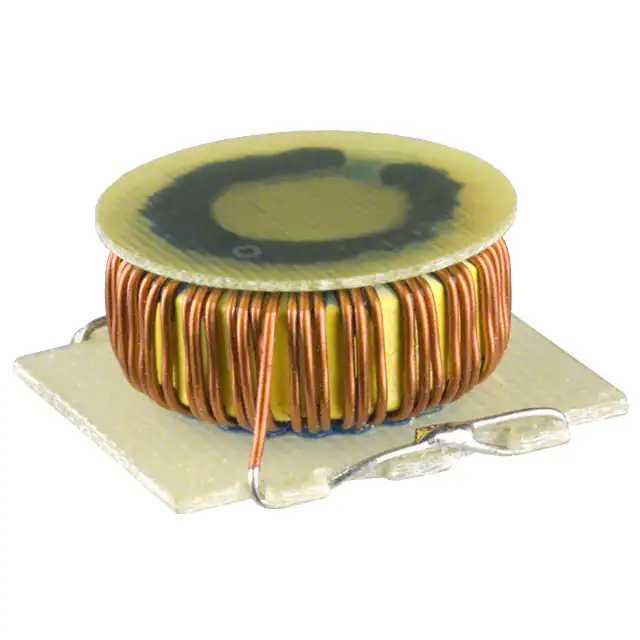

SWS-3.00-110FIXED IND 110UH 3A 90 MOHM SMD Amgis, LLC |
225 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
|
SH150S-3.00-17FIXED IND 17UH 3A 50 MOHM SMD Amgis, LLC |
1,103 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|

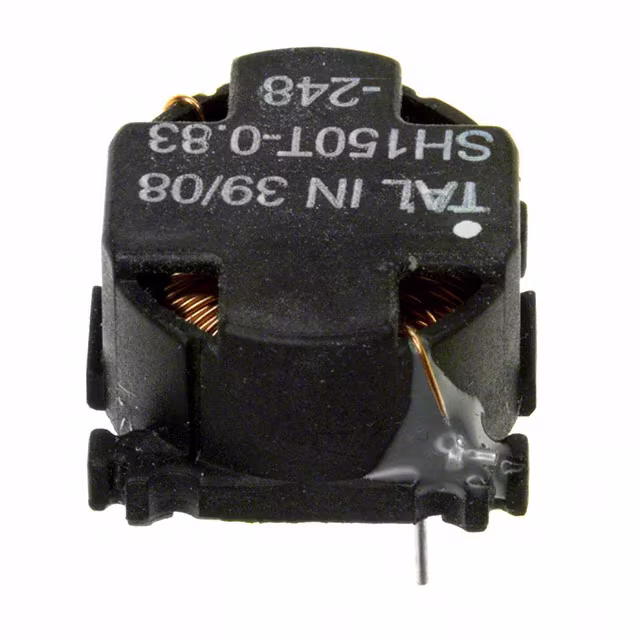

SH150T-0.83-248FIXED IND 248UH 830MA 600MOHM TH Amgis, LLC |
4,050 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH50F-0.85-680FIXED IND 680UH 850MA 1.25OHM TH Amgis, LLC |
100 |
|
数据手册 |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SH50C-3.0-330FIXED IND 330UH 3A 150 MOHM TH Amgis, LLC |
4,974 |
|
数据手册 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
SH50C-0.95-1000FIXED IND 1MH 950MA 240 MOHM TH Amgis, LLC |
4,824 |
|
数据手册 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
IND-10565AFIXED IND 1.8MH 175 MOHM TH Amgis, LLC |
1,858 |
|
数据手册 |
- | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Metal Composite | 1.8 mH | ±10% | - | - | Unshielded | 175mOhm | - | - | - | - | 15 kHz | - | Through Hole | - | 2.500" Dia x 0.750" L (63.50mm x 19.05mm) | - |
|
SWC-3.0-100FIXED IND 100UH 3A 40 MOHM TH Amgis, LLC |
100 |
|
数据手册 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±20% | 3 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|

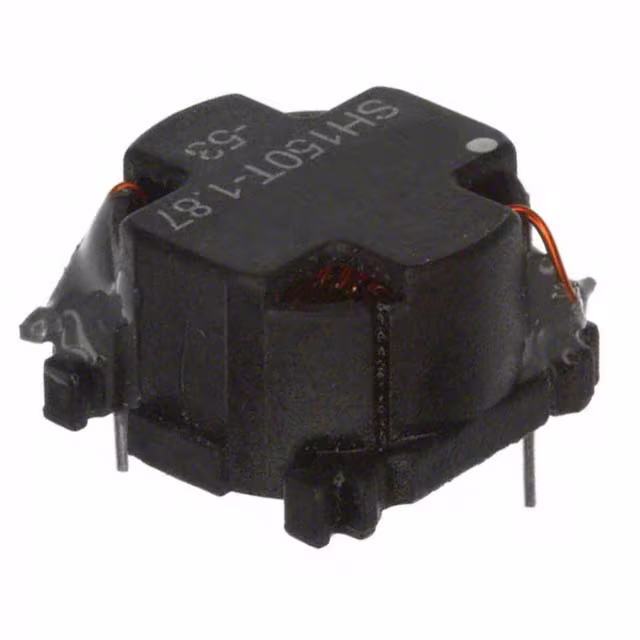

SH150T-1.87-53FIXED IND 53UH 1.87A 130 MOHM TH Amgis, LLC |
3,714 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 53 µH | ±20% | 1.87 A | - | Unshielded | 130mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
