上传BOM单
固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150S-3.00-25FIXED IND 25UH 3A 40 MOHM SMD Amgis, LLC |
3,545 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 25 µH | ±20% | 3 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.443" (11.25mm) |
|
|
SH150S-1.87-53FIXED IND 53UH 1.87A 130MOHM SMD Amgis, LLC |
293 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 53 µH | ±20% | 1.87 A | - | Unshielded | 130mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|

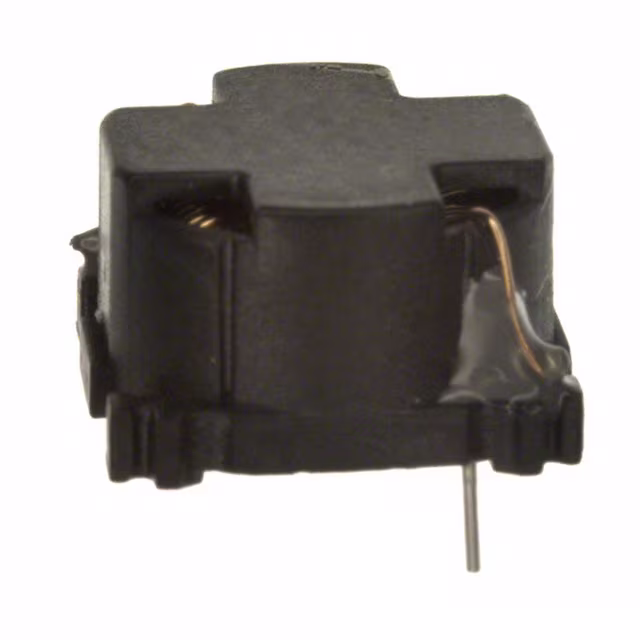

SH150T-1.26-112FIXED IND 112UH 1.26A 300MOHM TH Amgis, LLC |
109 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 112 µH | ±20% | 1.26 A | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH150C-4.50-19FIXED IND 19UH 4.5A 20 MOHM TH Amgis, LLC |
146 |
|
数据手册 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 19 µH | ±20% | 4.5 A | - | Unshielded | 20mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SH150S-3.00-38FIXED IND 38UH 3A 50 MOHM SMD Amgis, LLC |
2,836 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
SH150S-3.00-77FIXED IND 77UH 3A 80 MOHM SMD Amgis, LLC |
189 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 77 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
SH50V-0.9-330FIXED IND 330UH 900MA 740MOHM TH Amgis, LLC |
200 |
|
数据手册 |
SH50 | Radial, Vertical | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|

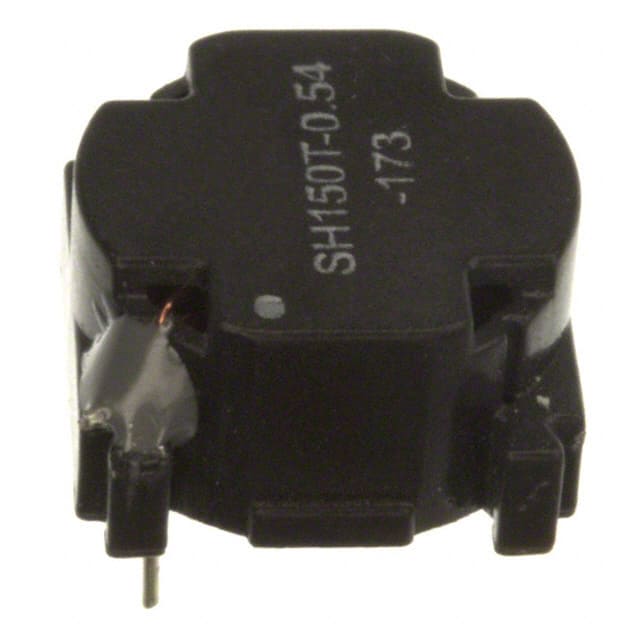

SH150T-0.54-173FIXED IND 173UH 540MA 600MOHM TH Amgis, LLC |
200 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 173 µH | ±20% | 540 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
DPV-0.5-330FIXED IND 330UH 500MA 265MOHM TH Amgis, LLC |
250 |
|
数据手册 |
DP | Radial, Vertical, 4 Leads | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 330 µH | ±15% | 500 mA | - | Unshielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.504" W (17.80mm x 12.80mm) | 0.787" (20.00mm) |
|
SH50F-0.9-330FIXED IND 330UH 900MA 740MOHM TH Amgis, LLC |
200 |
|
数据手册 |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
