固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH50S-1.4-176FIXED IND 176UH 1.4A 140MOHM SMD Amgis, LLC |
1,422 |
|
数据手册 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 176 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.411" (10.45mm) |
|
|
SH50S-1.4-220FIXED IND 220UH 1.4A 380MOHM SMD Amgis, LLC |
546 |
|
数据手册 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
|

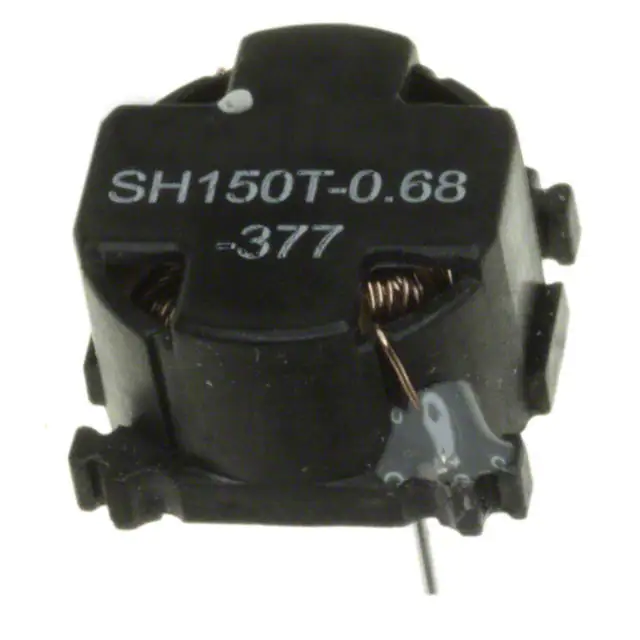

SH150T-0.68-377FIXED IND 377UH 680MA 1 OHM TH Amgis, LLC |
230 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 377 µH | ±20% | 680 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH50F-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH Amgis, LLC |
1,857 |
|
数据手册 |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SH50C-2.0-470FIXED IND 470UH 2A 170 MOHM TH Amgis, LLC |
36,038 |
|
数据手册 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 2 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|

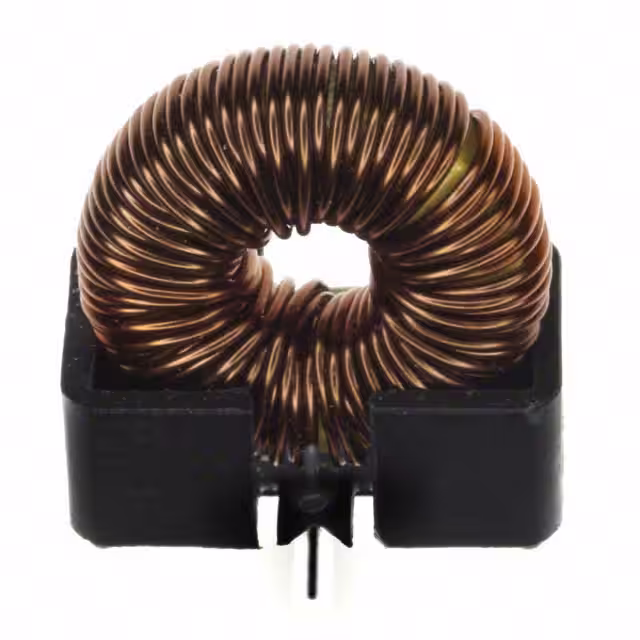

SH150C-2.22-114FIXED IND 114UH 2.22A 100MOHM TH Amgis, LLC |
3,838 |
|
数据手册 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 114 µH | ±20% | 2.22 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|

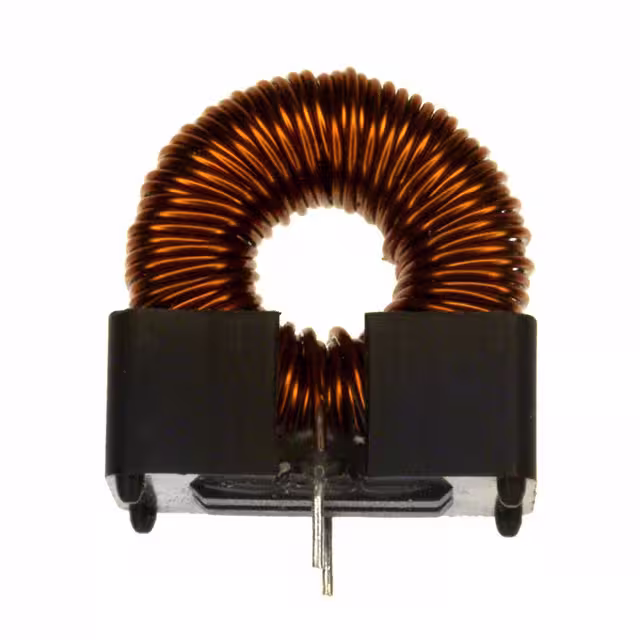

SH150C-3.00-110FIXED IND 110UH 3A 90 MOHM TH Amgis, LLC |
384 |
|
数据手册 |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
|
SH50S-2.0-150FIXED IND 150UH 2A 100 MOHM SMD Amgis, LLC |
471 |
|
数据手册 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.411" (10.45mm) |
|
SH150S-0.83-248FIXED IND 248UH 830MA 600MOHM SM Amgis, LLC |
279 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|

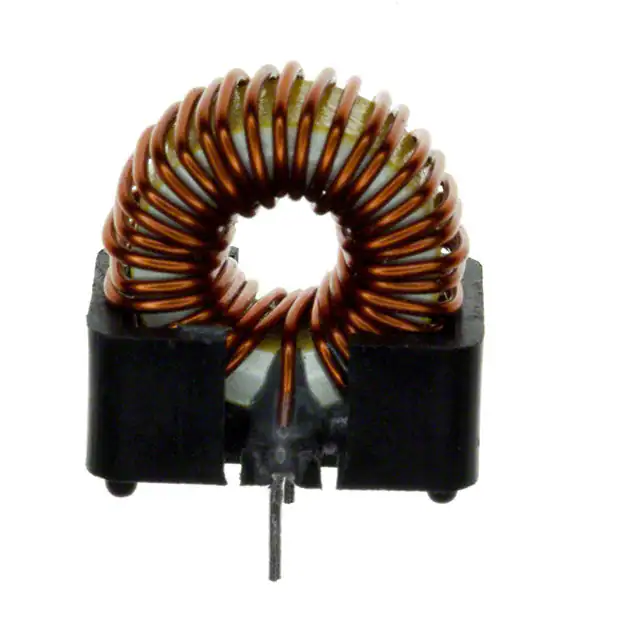

SH50C-3.0-47FIXED IND 47UH 3A 50 MOHM TH Amgis, LLC |
614 |
|
数据手册 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
