固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-14HY103BFIXED IND 10MH 170MA 10.86OHM TH KEMET |
973 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 170 mA | 310mA | Unshielded | 10.86Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SBCP-11HY470HFIXED IND 47UH 2A 100 MOHM TH KEMET |
1,957 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2 A | 4.4A | Unshielded | 100mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
SBC8-471-112FIXED IND 470UH 1.1A 420 MOHM TH KEMET |
249 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.1 A | 1.6A | Unshielded | 420mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|

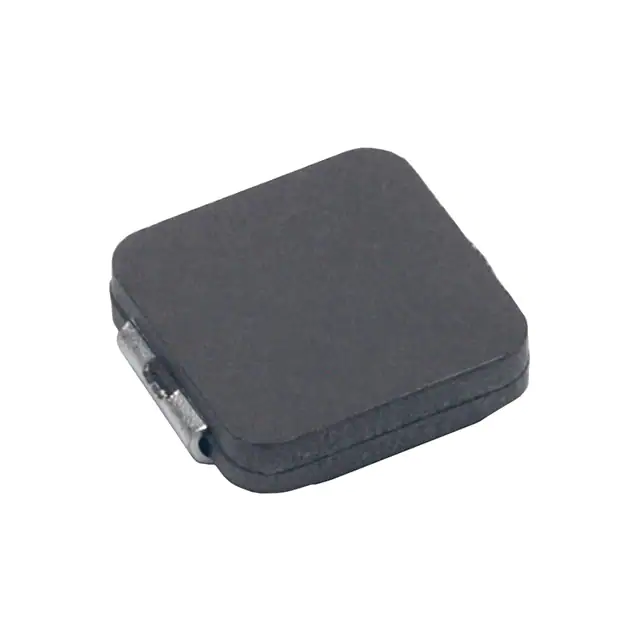

MPX1D1250L330FIXED IND 33UH 5.4A 72 MOHM SMD KEMET |
637 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 5.4 A | 7.5A | Shielded | 72mOhm Max | - | 5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
MPXV1D1250L680FIXED IND 68UH 3.6A 163MOHM SMD KEMET |
514 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 3.6 A | 4.5A | Shielded | 163mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPX1D1264L220FIXED IND 22UH 8.2A 35.1MOHM SMD KEMET |
1,391 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 8.2 A | 9.5A | Shielded | 35.1mOhm Max | - | 5.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPX1D1264L100FIXED IND 10UH 12.2A 16.1MOHM SM KEMET |
571 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 12.2 A | 14A | Shielded | 16.1mOhm Max | - | 8.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPXV1D1264L4R7FIXED IND 4.7UH 17.1A 8.2MOHM SM KEMET |
556 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 17.1 A | 19.5A | Shielded | 8.2mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPXV1D1264L100FIXED IND 10UH 12.2A 16.1MOHM SM KEMET |
251 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 12.2 A | 14A | Shielded | 16.1mOhm Max | - | 8.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPXV1D1250L150FIXED IND 15UH 8.2A 30.8MOHM SMD KEMET |
137 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 8.2 A | 11A | Shielded | 30.8mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
