固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNT-D20CMC 10UH 1.5A 2LN TH KEMET |
655 |
|
数据手册 |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 10 µH | - | 1.5 A | - | Unshielded | 45mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|
SBC8-222-471FIXED IND 2.2MH 470MA 1.8 OHM TH KEMET |
995 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 470 mA | 780mA | Unshielded | 1.8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-391-122FIXED IND 390UH 1.2A 370 MOHM TH KEMET |
783 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.2 A | 1.9A | Unshielded | 370mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-151-202FIXED IND 150UH 2A 150 MOHM TH KEMET |
274 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2 A | 3A | Unshielded | 150mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-820-262FIXED IND 82UH 2.6A 70 MOHM TH KEMET |
188 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 2.6 A | 4.1A | Unshielded | 70mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SNT-S20CMC 6UH 1.5A 2LN TH KEMET |
208 |
|
数据手册 |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 6 µH | - | 1.5 A | - | Unshielded | 35mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|

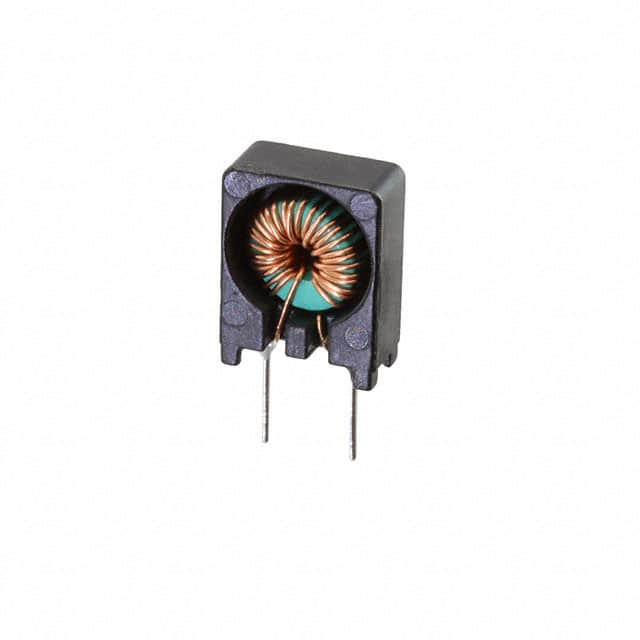

SNT-S30CMC 13UH 500MA 2LN TH KEMET |
143 |
|
数据手册 |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 13 µH | - | 500 mA | - | Unshielded | 95mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|
MPLCV0654L220FIXED IND 22UH 3A 94 MOHM SMD KEMET |
1,783 |
|
数据手册 |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 3 A | 4.2A | Shielded | 94mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.213" (5.40mm) |
|
|
SBC8-332-421FIXED IND 3.3MH 420MA 2.5 OHM TH KEMET |
875 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 420 mA | 630mA | Unshielded | 2.5Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.886" (22.50mm) |
|
MPLCV0645L100FIXED IND 10UH 4A 45 MOHM SMD KEMET |
6,409 |
|
数据手册 |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 4 A | 6.5A | Shielded | 45mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.177" (4.50mm) |
