固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPLCV0654L330FIXED IND 33UH 2.6A 140 MOHM SMD KEMET |
1,139 |
|
数据手册 |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 2.6 A | 4A | Shielded | 140mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.213" (5.40mm) |
|

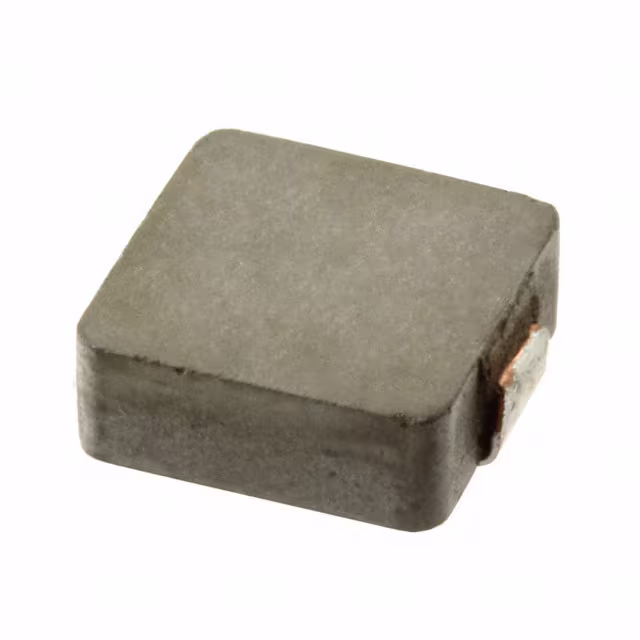

MPCG1040LR36FIXED IND 360NH 25A 1.05MOHM SMD KEMET |
3,001 |
|
数据手册 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 360 nH | ±20% | 25 A | 30A | Shielded | 1.05mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPCG1040LR88FIXED IND 880NH 17A 2.3 MOHM SMD KEMET |
818 |
|
数据手册 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 880 nH | ±20% | 17 A | 19A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
SHBC12-1R0A0051VCMC 51UH 5A 2LN TH KEMET |
2,766 |
|
数据手册 |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 51 µH | ±20% | 5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.024" Dia (26.00mm) | 1.024" (26.00mm) |
|
MPX1D1770L680FIXED IND 68UH 5.5A 79.5MOHM SMD KEMET |
342 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 68 µH | ±20% | 5.5 A | 8.5A | Shielded | 79.5mOhm Max | - | 2.3MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770LR47FIXED IND 470NH 52.5A 1.0005MOHM KEMET |
260 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 52.5 A | 108A | Shielded | 1.0005mOhm Max | - | 45MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
SHBC13-1R2A0127VCMC 127UH 6A 2LN TH KEMET |
179 |
|
数据手册 |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 127 µH | ±20% | 6 A | - | Unshielded | 31.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.181" Dia (30.00mm) | 1.181" (30.00mm) |
|
MPXV1D2213L330FIXED IND 33UH 17.5A 16 MOHM SMD KEMET |
251 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 17.5 A | 20.5A | Shielded | 16mOhm Max | - | 2.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
-0,60x0,30x0,33mm.jpg)
|
L0201C33NJRMSTFIXED IND 33NH 50MA 2.1 OHM SMD KEMET |
2,957 |
|
数据手册 |
L-RMS | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 50 mA | - | Unshielded | 2.1Ohm Max | 6 @ 100MHz | 2.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
SBC1-1R0-312FIXED IND 1UH 3.1A 30 MOHM TH KEMET |
2,587 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.1 A | 5.2A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.335" (8.50mm) |
