固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQ4120-R62MHF0.62UH, 0.95MOHM, 23A MAX. FLAT ITG Electronics, Inc. |
250 |
|
数据手册 |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 650 nH | ±20% | 23 A | 23A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-1R2MHF1.2UH, 0.95MOHM, 10A MAX. FLAT W ITG Electronics, Inc. |
250 |
|
数据手册 |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 23 A | 10A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-1R0MHF1.0UH, 0.95MOHM, 12.5A MAX. FLAT ITG Electronics, Inc. |
250 |
|
数据手册 |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 23 A | 12.5A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-R82MHF0.82UH, 0.95MOHM, 15A MAX. FLAT ITG Electronics, Inc. |
250 |
|
数据手册 |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 23 A | 15A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
SLC1611A-R022MHF0.022UH, 20%, 0.23MOHM, 41AMP MA ITG Electronics, Inc. |
2,400 |
|
数据手册 |
SLC1611 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 20 nH | ±20% | 22 A | 41A | - | 0.23mOhm | - | - | - | -55°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

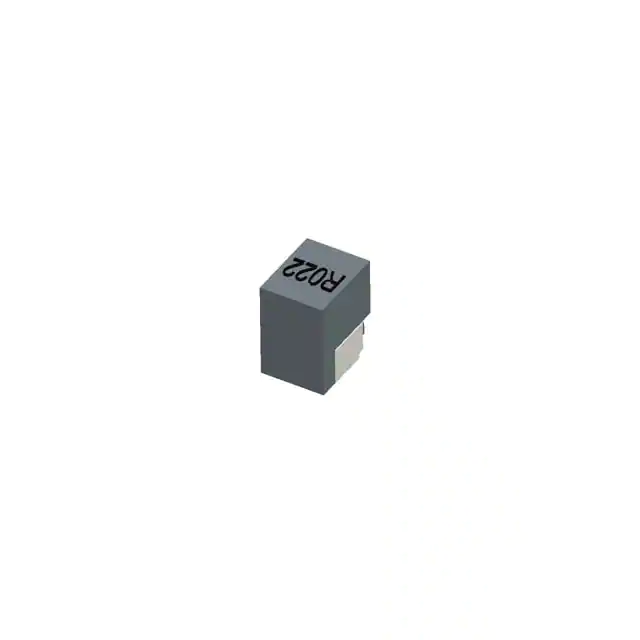

SLC1615A-R022LHF22.0NH, 10%, 0.23MOHM, 60.0A MAX ITG Electronics, Inc. |
400 |
|
数据手册 |
SLC1615 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 22 nH | ±10% | 22 A | 60A | - | 0.23mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.154" (3.90mm) |
|
AFA3732Q-100L100NH, 15%, 0.145MOHM, 95.0A MAX ITG Electronics, Inc. |
900 |
|
数据手册 |
AFA3732Q | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 75 A | 95A | - | 0.145mOhm | - | - | AEC-Q200 | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.315" (8.00mm) |
|
|
AFA3732Q-70L70NH, 15%, 0.145MOHM, 124.0A MAX ITG Electronics, Inc. |
150 |
|
数据手册 |
AFA3732Q | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±15% | 75 A | 124A | - | 0.145mOhm | - | - | AEC-Q200 | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.315" (8.00mm) |
|
AFA41405B-150L150.0NH, 15%, 0.23MOHM, 58.0A MA ITG Electronics, Inc. |
200 |
|
数据手册 |
AFA41405B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 85 A | 58A | Unshielded | 0.23mOhm Max | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.402" L x 0.189" W (10.20mm x 4.80mm) | 0.394" (10.00mm) |
|
SMHC2511-6R8MHFFIXED IND 6.8UH 4.5A 60MOHM SMD ITG Electronics, Inc. |
1,000 |
|
数据手册 |
SMHC2511 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
