上传BOM单
固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AF13A-220KFIXED IND 220NH 66A 0.17MOHM SMD ITG Electronics, Inc. |
1,100 |
|
数据手册 |
AF13A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 66 A | - | Shielded | 0.17mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.354" (9.00mm) |
|
AH3740A-180KFIXED IND 180NH 78A 0.145MOHM SM ITG Electronics, Inc. |
600 |
|
数据手册 |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 78 A | 49A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
AH3740A-150KFIXED IND 150NH 78A 0.145MOHM SM ITG Electronics, Inc. |
600 |
|
数据手册 |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 78 A | 60A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.374" W (9.60mm x 9.50mm) | 0.394" (10.00mm) |
|
|
AH3740A-330LFIXED IND 330NH 78A 0.145MOHM SM ITG Electronics, Inc. |
500 |
|
数据手册 |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 78 A | 20A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|

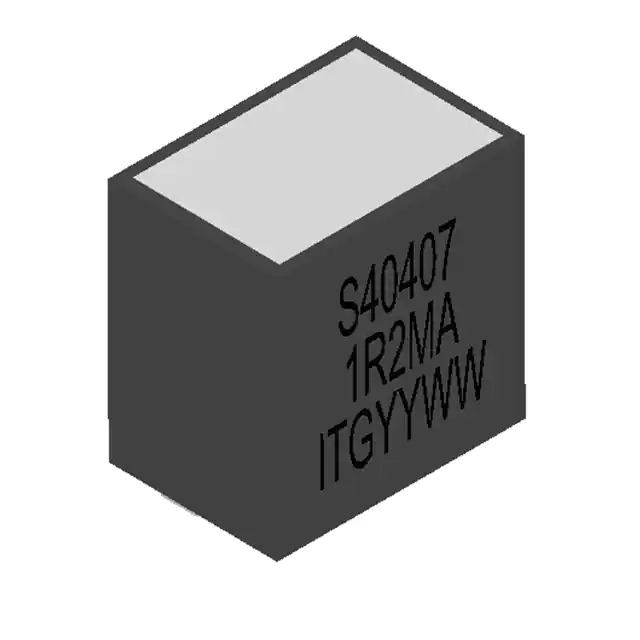

SLQ40407A-1R2MHFFIXED IND 1.2UH 31A 0.73MOHM SMD ITG Electronics, Inc. |
500 |
|
数据手册 |
SLQ40407A | 2-SMD | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 31 A | 13.5A | Shielded | 0.73mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" (10.00mm) |
|
|
AH3740A-70KFIXED IND 70NH 78A 0.145MOHM SMD ITG Electronics, Inc. |
400 |
|
数据手册 |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±10% | 78 A | 124A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.409" (10.40mm) |
|
|
AH3740A-120KFIXED IND 120NH 78A 0.145MOHM SM ITG Electronics, Inc. |
200 |
|
数据手册 |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 78 A | 78A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.398" (10.10mm) |
|
SLQ40407A-R47MHF0.47UH, 20%, 0.73MOHM, 42.0A MAX ITG Electronics, Inc. |
200 |
|
数据手册 |
SLQ40407A | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | 31 A | 42A | - | 0.73mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.275" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
AFA41405B-70L70.0NH, 15%, 0.23MOHM, 145.0A MA ITG Electronics, Inc. |
700 |
|
数据手册 |
AFA41405B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±15% | 85 A | 145A | Unshielded | 0.23mOhm Max | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.402" L x 0.189" W (10.20mm x 4.80mm) | 0.394" (10.00mm) |
|
|
AFA41405B-100L100.0nH, 15%, 0.23mOhm, 100.0A M ITG Electronics, Inc. |
200 |
|
数据手册 |
AFA41405B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 85 A | 100A | Unshielded | 0.23mOhm Max | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.402" L x 0.189" W (10.20mm x 4.80mm) | 0.394" (10.00mm) |
