固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFA41405Q-100L100.0NH, 15%, 0.23MOHM, 100.0A M ITG Electronics, Inc. |
200 |
|
数据手册 |
AFA41405Q | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 85 A | 100A | - | 230mOhm Max | - | - | AEC-Q200 | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.402" L x 0.189" W (10.20mm x 4.80mm) | 0.394" (10.00mm) |
|
AH3740A-100KFIXED IND 100NH 78A 0.145MOHM SM ITG Electronics, Inc. |
400 |
|
数据手册 |
AH3740 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 78 A | 95A | Shielded | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.402" (10.20mm) |
|
SM2011-R20MHF0.2UH, 20%, 4.2MOHM, 26.5AMP MAX ITG Electronics, Inc. |
8,000 |
|
数据手册 |
SM2011 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal | 200 nH | ±20% | 15 A | 26.5A | - | 4.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
SC2511-R47MHF0.47UH, 20%, 2.6mOhm, 28A Max. ITG Electronics, Inc. |
12,000 |
|
数据手册 |
SC2511 | - | Tray | Active | - | - | 0.47 µH | - | 28 A | - | - | 2.6mOhm | - | - | - | -55°C ~ 150°C | - | - | Surface Mount | - | 0.291" L x 0.268" W (7.40mm x 6.80mm) | 0.118" (3.00mm) |
|

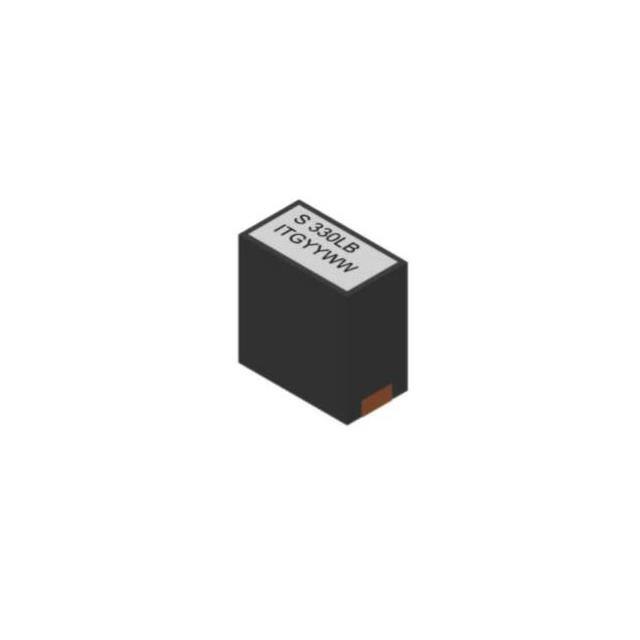

SLA36385B-210L210NH, 15%, 0.4MOHM, 38A MAX. PO ITG Electronics, Inc. |
6,000 |
|
数据手册 |
SLA36385B | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | ±15% | 38 A | 38A | - | 0.4mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.374" (9.50mm) |
|
SQ10B-1R0MHF-CT1uH, 20%, 4.05mOhm, 33Amp Max. ITG Electronics, Inc. |
300 |
|
数据手册 |
SQ10 | Nonstandard | Strip | Active | Molded | Ferrite | 1 µH | ±20% | 22 A | 33A | Unshielded | 4.05mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.327" W (12.50mm x 8.30mm) | 0.413" (10.50mm) |
|
|
SQ10A-R33MHF-CT0.33uH, 20%, 1.3mOhm, 50Amp Max ITG Electronics, Inc. |
300 |
|
数据手册 |
SQ10 | Nonstandard | Strip | Active | Molded | Ferrite | 330 nH | ±20% | 33 A | 50A | Unshielded | 1.3mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.339" W (12.50mm x 8.60mm) | 0.335" (8.50mm) |
|
AFA3732A-70L70NH, 15%, .0145MOHM, 124.0A MAX ITG Electronics, Inc. |
600 |
|
数据手册 |
AFA3732 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±15% | 75 A | 124A | - | 0.145mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.315" (8.00mm) |
|
SQ4120-R90MHF0.90UH, 0.95MOHM, 14.5A MAX. FLA ITG Electronics, Inc. |
250 |
|
数据手册 |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±20% | 23 A | 14.5A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-R72MHF0.72UH, 0.95MOHM, 19A MAX. FLAT ITG Electronics, Inc. |
250 |
|
数据手册 |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 720 nH | ±20% | 23 A | 19A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
