场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSM126CX RFGMOSFET N-CH 600V 30MA SOT23 Taiwan Semiconductor Corporation |
9,902 | - |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 600 V | 30mA (Tc) | 0V, 10V | 800Ohm @ 16mA, 10V | 1V @ 8µA | 1.18 nC @ 4.5 V | ±20V | 51.42 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
TSM250N02CX20V, 5.8A, SINGLE N-CHANNEL POWE Taiwan Semiconductor Corporation |
6,767 | - |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.8A (Tc) | 1.8V, 4.5V | 25mOhm @ 4A, 4.5V | 800mV @ 250µA | 7.7 nC @ 4.5 V | ±10V | 535 pF @ 10 V | - | 1.56W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
TSM2309CX-60V, -3.1A, SINGLE P-CHANNEL PO Taiwan Semiconductor Corporation |
3,289 | - |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 3.1A (Tc) | 4.5V, 10V | 190mOhm @ 3A, 10V | 2.5V @ 250µA | 8.2 nC @ 10 V | ±20V | 425 pF @ 30 V | - | 1.56W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
TSM650P03CX-30V, -4.1A, SINGLE P-CHANNEL PO Taiwan Semiconductor Corporation |
9,835 | - |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.1A (Tc) | 2.5V, 10V | 65mOhm @ 4A, 10V | 900mV @ 250µA | 8 nC @ 4.5 V | ±12V | 810 pF @ 15 V | - | 1.56W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
TSM2N7000KCT A3GMOSFET N-CHANNEL 60V 300MA TO92 Taiwan Semiconductor Corporation |
5,999 | - |
|
数据手册 |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 5V, 10V | 5Ohm @ 100mA, 10V | 2.5V @ 250µA | 0.4 nC @ 4.5 V | ±20V | 60 pF @ 25 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 |
|
TSM4NC60CI C0GMOSFET N-CH 600V 4A ITO220AB Taiwan Semiconductor Corporation |
8,026 | - |
|
数据手册 |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2.5Ohm @ 1.3A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±30V | 654 pF @ 50 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
|
TSM2N60ECH C5GMOSFET N-CHANNEL 600V 2A TO251 Taiwan Semiconductor Corporation |
8,846 | - |
|
数据手册 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Tc) | 10V | 4Ohm @ 1A, 10V | 5V @ 250µA | 9.5 nC @ 10 V | ±30V | 362 pF @ 25 V | - | 52.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|

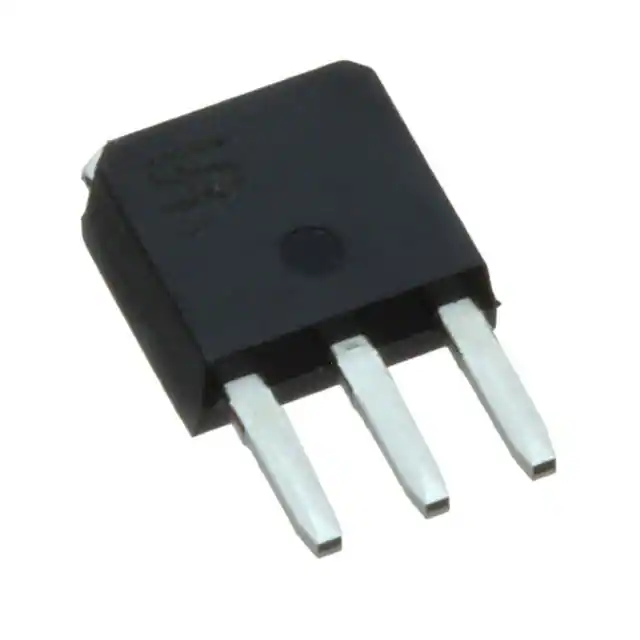

TSM900N10CH X0GMOSFET N-CH 100V 15A TO251 Taiwan Semiconductor Corporation |
7,604 | - |
|
数据手册 |
- | TO-251-3 Stub Leads, IPAK | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 4.5V, 10V | 90mOhm @ 5A, 10V | 2.5V @ 250µA | 9.3 nC @ 10 V | ±20V | 1480 pF @ 50 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
|
TSM3446CX620V, 5.3A, SINGLE N-CHANNEL POWE Taiwan Semiconductor Corporation |
7,709 | - |
|
数据手册 |
- | SOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.3A (Tc) | 2.5V, 4.5V | 33mOhm @ 5.3A, 4.5V | 1V @ 250µA | 12.5 nC @ 4.5 V | ±12V | 700 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
|
TSM240N03CX30V, 6.5A, SINGLE N-CHANNEL POWE Taiwan Semiconductor Corporation |
7,309 | - |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Tc) | 4.5V, 10V | 24mOhm @ 6A, 10V | 2.5V @ 250µA | 4.1 nC @ 4.5 V | ±20V | 345 pF @ 25 V | - | 1.56W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
