场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD6NF10T4MOSFET N-CH 100V 6A DPAK STMicroelectronics |
2,177 | - |
|
数据手册 |
STripFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 6A (Tc) | 10V | 250mOhm @ 3A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 280 pF @ 25 V | - | 30W (Tc) | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
STD2NK60Z-1MOSFET N-CH 600V 1.4A IPAK STMicroelectronics |
3,521 | - |
|
数据手册 |
SuperMESH™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.4A (Tc) | 10V | 8Ohm @ 700mA, 10V | 4.5V @ 50µA | 10 nC @ 10 V | ±30V | 170 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
STB4N62K3MOSFET N-CH 620V 3.8A D2PAK STMicroelectronics |
993 | - |
|
数据手册 |
SuperMESH3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 3.8A (Tc) | 10V | 1.95Ohm @ 1.9A, 10V | 4.5V @ 50µA | 14 nC @ 10 V | ±30V | 450 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
STU9HN65M2MOSFET N-CH 650V 5.5A IPAK STMicroelectronics |
2,345 | - |
|
数据手册 |
MDmesh™ M2 | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.5A (Tc) | 10V | 820mOhm @ 2.5A, 10V | 4V @ 250µA | 11.5 nC @ 10 V | ±25V | 325 pF @ 100 V | - | 60W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
STF4N52K3MOSFET N-CH 525V 2.5A TO220FP STMicroelectronics |
1,834 | - |
|
数据手册 |
SuperMESH3™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 20W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STB7N52K3MOSFET N-CH 525V 6A D2PAK STMicroelectronics |
4,761 | - |
|
数据手册 |
SuperMESH3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 6A (Tc) | 10V | 980mOhm @ 3.1A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 737 pF @ 100 V | - | 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STL35N15F3MOSFET N-CH 150V 33A POWERFLAT STMicroelectronics |
1,751 | - |
|
数据手册 |
STripFET™ III | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 33A (Tc) | 10V | 40mOhm @ 3.5A, 10V | 4V @ 250µA | 49.4 nC @ 10 V | ±20V | 1905 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
STB25NF06LAGMOSFET N-CHANNEL 60V 25A D2PAK STMicroelectronics |
1,578 | - |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 5V, 10V | - | - | 14 nC @ 10 V | - | - | - | - | - | - | - | Surface Mount | D2PAK |
|

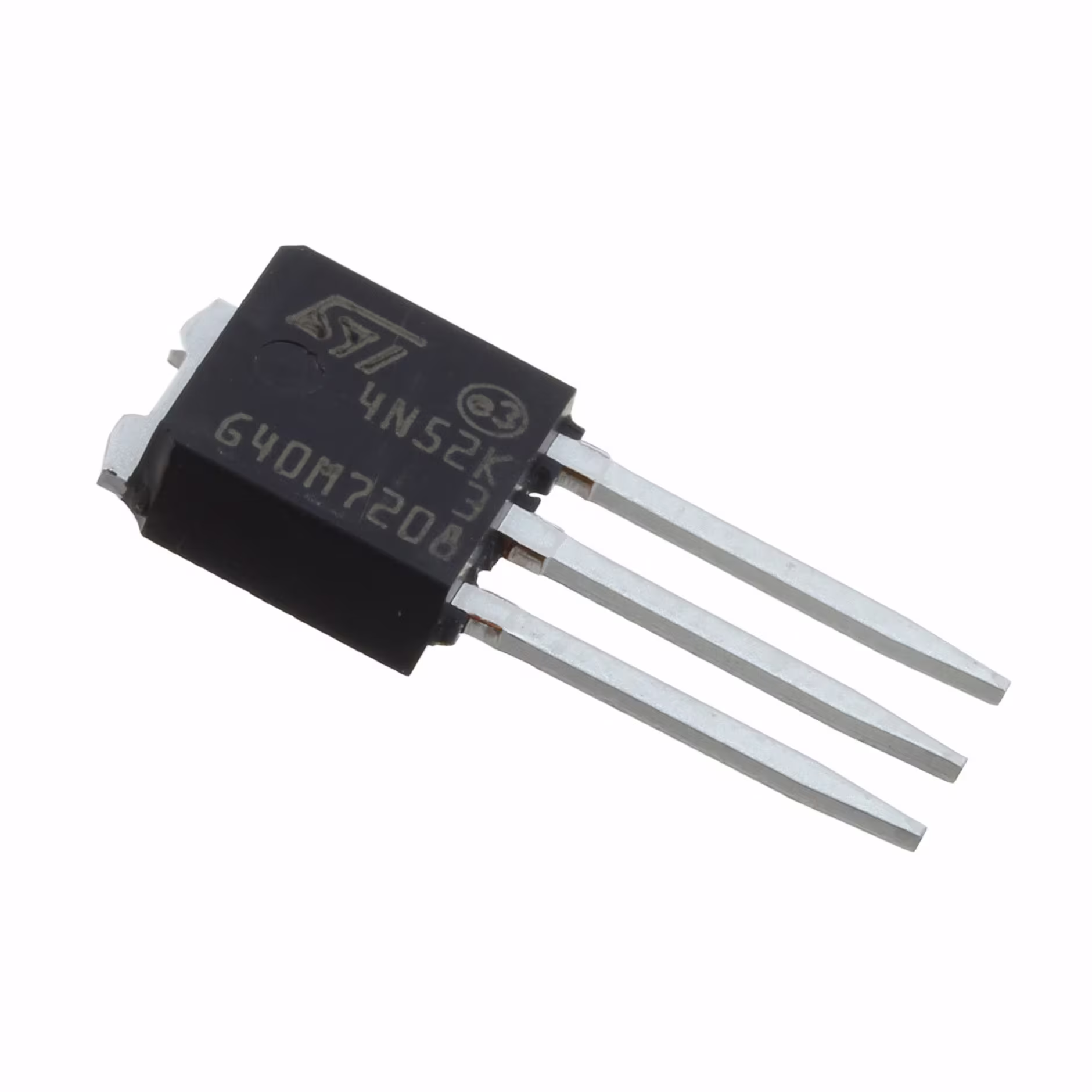

STU4N52K3MOSFET N-CH 525V 2.5A IPAK STMicroelectronics |
2,513 | - |
|
数据手册 |
SuperMESH3™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | IPAK |
|
STU7N60M2MOSFET N-CH 600V 5A IPAK STMicroelectronics |
3,000 | - |
|
数据手册 |
MDmesh™ II Plus | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 950mOhm @ 2.5A, 10V | 4V @ 250µA | 8.8 nC @ 10 V | ±25V | 271 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
