场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STWA65N023M9N-CHANNEL 650 V, 19.9 MOHM TYP., STMicroelectronics |
626 | - |
|
数据手册 |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 95A (Tc) | 10V | 23mOhm @ 48A, 10V | 4.2V @ 250µA | 230 nC @ 10 V | ±30V | 8844 pF @ 400 V | - | 463W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
SCTH100N65G2-7AGSICFET N-CH 650V 95A H2PAK-7 STMicroelectronics |
876 | - |
|
数据手册 |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 95A (Tc) | 18V | 26mOhm @ 50A, 18V | 5V @ 5mA | 162 nC @ 18 V | +22V, -10V | 3315 pF @ 520 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | H2PAK-7 |
|
STL12N3LLH5MOSFET N-CH 30V 12A POWERFLAT STMicroelectronics |
2,668 | - |
|
数据手册 |
STripFET™ V | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Tc) | 4.5V, 10V | 9mOhm @ 6A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±22V | 1500 pF @ 25 V | - | 2W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (3.3x3.3) |
|
STF7N60DM2MOSFET N-CH 600V 6A TO220FP STMicroelectronics |
1,959 | - |
|
数据手册 |
MDmesh™ DM2 | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 900mOhm @ 3A, 10V | 4.75V @ 250µA | 7.5 nC @ 10 V | ±25V | 324 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|

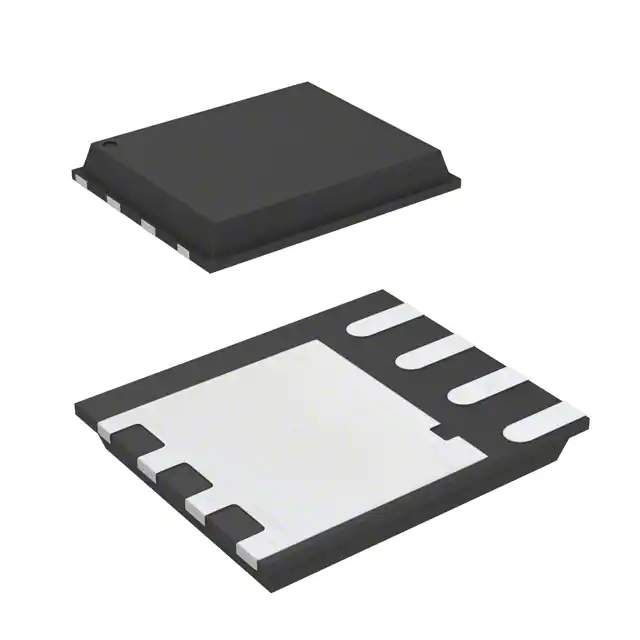

STL55NH3LLMOSFET N-CH 30V 55A POWERFLAT STMicroelectronics |
5,892 | - |
|
数据手册 |
STripFET™ | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 55A (Tc) | 4.5V, 10V | 8.8mOhm @ 7.5A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±16V | 965 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
STS14N3LLH5MOSFET N-CH 30V 14A 8SO STMicroelectronics |
5,822 | - |
|
数据手册 |
STripFET™ V | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Tc) | 4.5V, 10V | 6mOhm @ 7A, 10V | 1V @ 250µA | 12 nC @ 4.5 V | ±22V | 1500 pF @ 25 V | - | 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
STT5N2VH5MOSFET N-CH 20V SOT23-6 STMicroelectronics |
11,726 | - |
|
数据手册 |
STripFET™ V | SOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5A (Tj) | 2.5V, 4.5V | 30mOhm @ 2A, 4.5V | 700mV @ 250µA (Min) | 4.6 nC @ 4.5 V | ±8V | 367 pF @ 16 V | - | 1.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
;;2.jpg)
|
STD35NF3LLT4MOSFET N-CH 30V 35A DPAK STMicroelectronics |
3,869 | - |
|
数据手册 |
STripFET™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Tc) | 4.5V, 10V | 19.5mOhm @ 17.5A, 10V | 2.5V @ 250µA | 17 nC @ 5 V | ±16V | 800 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|

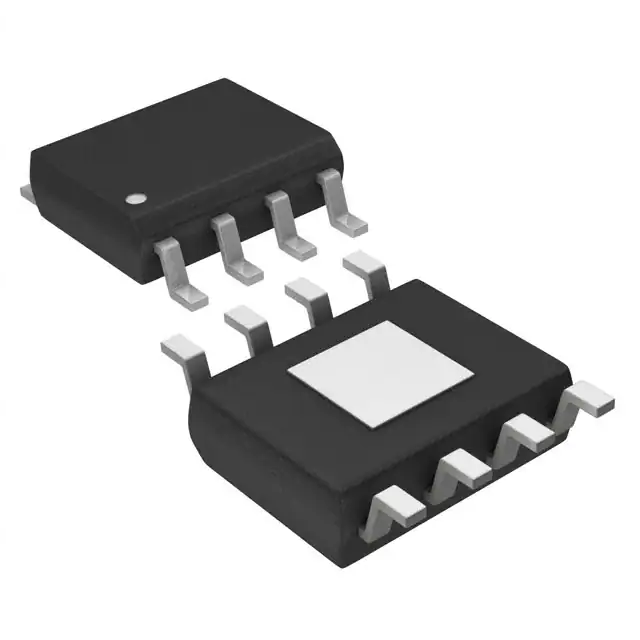

STSJ60NH3LLMOSFET N-CH 30V 60A 8SOIC STMicroelectronics |
3,885 | - |
|
数据手册 |
STripFET™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 5.7mOhm @ 7.5A, 10V | 1V @ 250µA | 24 nC @ 4.5 V | ±16V | 1810 pF @ 25 V | - | 3W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
STL120N2VH5MOSFET N-CH 20V 120A POWERFLAT STMicroelectronics |
2,596 | - |
|
数据手册 |
STripFET™ V | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 120A (Tc) | 2.5V, 4.5V | 3mOhm @ 14A, 4.5V | 700mV @ 250µA (Min) | 29 nC @ 2.5 V | ±8V | 4660 pF @ 15 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
