场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STF13N60DM2MOSFET N-CH 600V 11A TO220FP STMicroelectronics |
293 | - |
|
数据手册 |
MDmesh™ DM2 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 365mOhm @ 5.5A, 10V | 5V @ 250µA | 19 nC @ 10 V | ±25V | 730 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STP4NK80ZMOSFET N-CH 800V 3A TO220AB STMicroelectronics |
928 | - |
|
数据手册 |
SuperMESH™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 3A (Tc) | 10V | 3.5Ohm @ 1.5A, 10V | 4.5V @ 50µA | 22.5 nC @ 10 V | ±30V | 575 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STF7LN80K5MOSFET N-CH 800V 5A TO220FP STMicroelectronics |
3,132 | - |
|
数据手册 |
MDmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STD95P3LLH6AGMOSFET N-CH 30V 80A DPAK STMicroelectronics |
2,465 | - |
|
数据手册 |
STripFET™ H6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 6.9mOhm @ 40A, 10V | 2.5V @ 250µA | 113 nC @ 10 V | ±18V | 6250 pF @ 25 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|

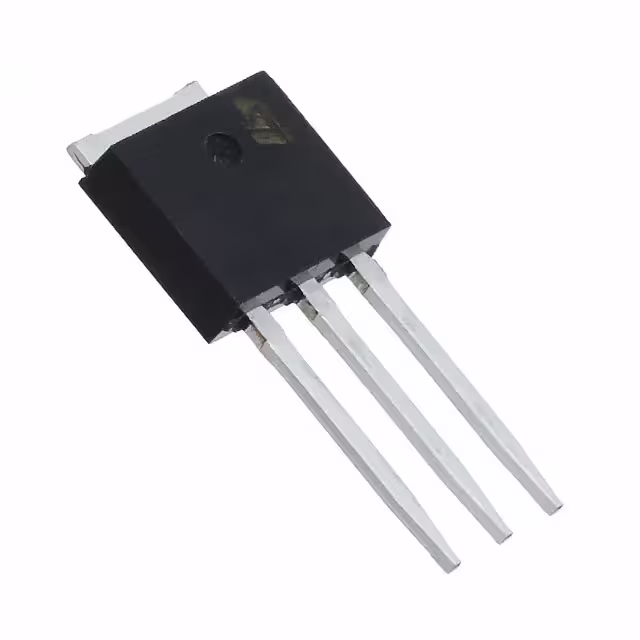

STU6N90K5MOSFET N-CH 900V 6A IPAK STMicroelectronics |
162 | - |
|
数据手册 |
MDmesh™ K5 | TO-251-3 Long Leads, IPak, TO-251AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 6A (Tc) | 10V | 1.1Ohm @ 3A, 10V | 5V @ 100µA | - | ±30V | - | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK (TO-251) |
|
STL92N10F7AGMOSFET N-CH 100V 16A POWERFLAT STMicroelectronics |
8,285 | - |
|
数据手册 |
STripFET™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 16A (Tc) | 10V | 9.5Ohm @ 8A, 10V | 4.5V @ 250µA | 45 nC @ 10 V | ±20V | 3100 pF @ 50 V | - | 5W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
;;2.jpg)
|
STD10NM60NDMOSFET N-CH 600V 8A DPAK STMicroelectronics |
2,100 | - |
|
数据手册 |
FDmesh™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 8A (Tc) | 10V | 600mOhm @ 4A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±25V | 577 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STP7LN80K5MOSFET N-CH 800V 5A TO220 STMicroelectronics |
454 | - |
|
数据手册 |
MDmesh™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STP20N65M5MOSFET N-CH 650V 18A TO220 STMicroelectronics |
939 | - |
|
数据手册 |
MDmesh™ V | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±25V | 1345 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STD15N60DM6MOSFET N-CH 600V 12A DPAK STMicroelectronics |
2,483 | - |
|
数据手册 |
MDmesh™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | - | 338mOhm @ 6A, 10V | 4.75V @ 250µA | 15.3 nC @ 10 V | ±25V | 607 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
