场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STF10LN80K5MOSFET N-CH 800V 8A TO220FP STMicroelectronics |
799 | - |
|
数据手册 |
MDmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 630mOhm @ 4A, 10V | 5V @ 100µA | 15 nC @ 10 V | ±30V | 427 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
;;2.jpg)
|
STD5N95K3MOSFET N-CH 950V 4A DPAK STMicroelectronics |
2,485 | - |
|
数据手册 |
SuperMESH3™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 4A (Tc) | 10V | 3.5Ohm @ 2A, 10V | 5V @ 100µA | 19 nC @ 10 V | ±30V | 460 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STF12N65M5MOSFET N-CH 650V 8.5A TO220FP STMicroelectronics |
128 | - |
|
数据手册 |
MDmesh™ V | TO-220-5 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.5A (Tc) | 10V | 430mOhm @ 4.3A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±25V | 900 pF @ 100 V | - | 25W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STB100NF04T4MOSFET N-CH 40V 120A D2PAK STMicroelectronics |
1,563 | - |
|
数据手册 |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 4.6mOhm @ 50A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 5100 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
STP25N60M2-EPMOSFET N-CH 600V 18A TO220 STMicroelectronics |
1,006 | - |
|
数据手册 |
MDmesh™ M2-EP | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 188mOhm @ 9A, 10V | 4.75V @ 250µA | 29 nC @ 10 V | ±25V | 1090 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STP7NK80ZMOSFET N-CH 800V 5.2A TO220AB STMicroelectronics |
992 | - |
|
数据手册 |
SuperMESH™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.2A (Tc) | 10V | 1.8Ohm @ 2.6A, 10V | 4.5V @ 100µA | 56 nC @ 10 V | ±30V | 1138 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STF24N60M6MOSFET N-CH 600V TO220FP STMicroelectronics |
914 | - |
|
数据手册 |
MDmesh™ M6 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tj) | 10V | 190mOhm @ 8.5A, 10V | 4.75V @ 250µA | 23 nC @ 10 V | ±25V | 960 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STB85NF55T4MOSFET N-CH 55V 80A D2PAK STMicroelectronics |
487 | - |
|
数据手册 |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 8mOhm @ 40A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 3700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
STH145N8F7-2AGMOSFET N-CH 80V 90A H2PAK-2 STMicroelectronics |
1,520 | - |
|
数据手册 |
STripFET™ F7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 90A (Tc) | 10V | 4mOhm @ 45A, 10V | 4.5V @ 250µA | 96 nC @ 10 V | ±20V | 6340 pF @ 40 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | H2PAK-2 |
|

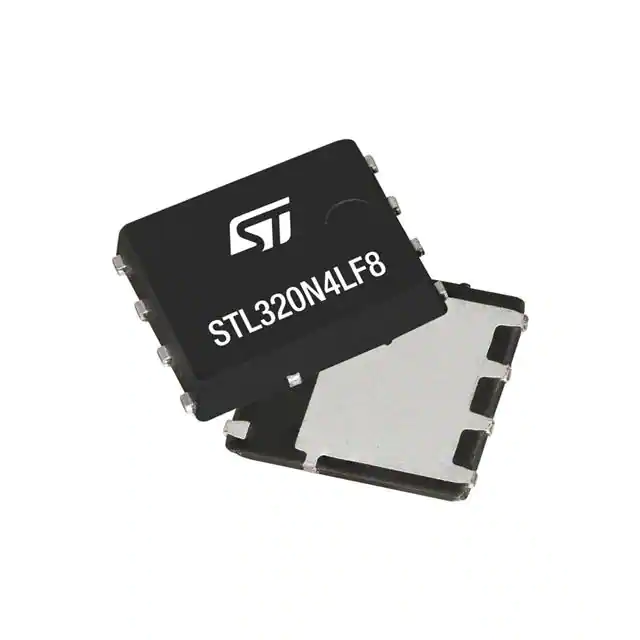

STL320N4LF8AUTOMOTIVE-GRADE N-CHANNEL 40 V STMicroelectronics |
5,965 | - |
|
数据手册 |
- | 8-PowerDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PowerFlat™ (5x6) |
