场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

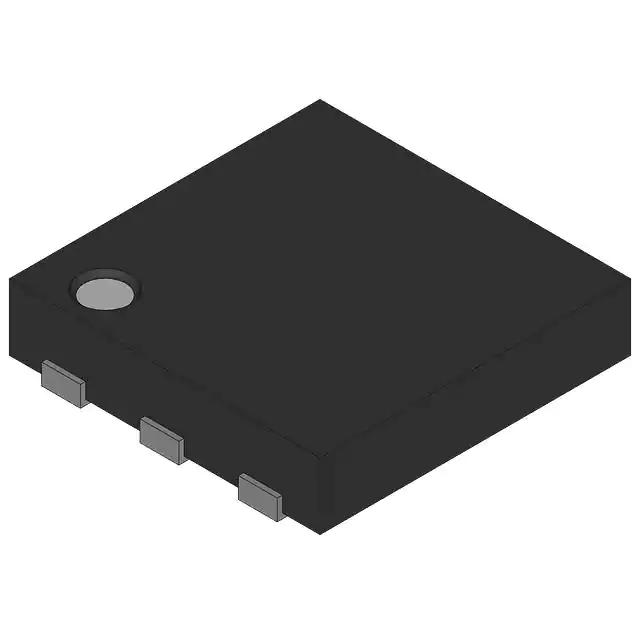

PMPB43XPE,115MOSFET P-CH 20V 5A DFN2020MD-6 Nexperia USA Inc. |
2,623 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5A (Ta) | 1.8V, 4.5V | 48mOhm @ 5A, 4.5V | 900mV @ 250µA | 23.4 nC @ 4.5 V | ±12V | 1550 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
BUK9Y2R4-40HXBUK9Y2R4-40H/SOT669/LFPAK Nexperia USA Inc. |
7,115 | - |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | 120A (Tc) | - | - | - | - | +16V, -10V | - | - | 163W (Tc) | - | Automotive | AEC-Q101 | - | - |
|
|
BUK763R4-30,118MOSFET N-CH 30V 75A D2PAK Nexperia USA Inc. |
6,476 | - |
|
数据手册 |
- | - | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 3.4mOhm @ 25A, 10V | 4V @ 1mA | 75 nC @ 10 V | ±20V | 4951 pF @ 25 V | - | 255W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | - | - |
|
BUK9237-55A,118MOSFET N-CH 55V 32A DPAK Nexperia USA Inc. |
3,437 | - |
|
数据手册 |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 32A (Tc) | 5V, 10V | 33mOhm @ 15A, 10V | 2V @ 1mA | 17.6 nC @ 5 V | ±15V | 1236 pF @ 25 V | - | 77W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
BUK965R4-40E,118MOSFET N-CH 40V 75A D2PAK Nexperia USA Inc. |
5,861 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 5V | 4.4mOhm @ 25A, 10V | 2.1V @ 1mA | 33.9 nC @ 5 V | ±10V | 4483 pF @ 25 V | - | 137W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
PMV27UPEARMOSFET P-CH 20V 4.5A TO236AB Nexperia USA Inc. |
1,461 | - |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 1.8V, 4.5V | 32mOhm @ 4.5A, 4.5V | 950mV @ 250µA | 22.1 nC @ 4.5 V | ±8V | 1820 pF @ 10 V | - | 490mW (Ta), 4.15W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
PSMN8R5-100ESFQMOSFET N-CHANNEL 100V 97A I2PAK Nexperia USA Inc. |
2,651 | - |
|
数据手册 |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 97A (Tc) | 7V, 10V | 8.8mOhm @ 25A, 10V | 4V @ 1mA | 44.5 nC @ 10 V | ±20V | 3181 pF @ 50 V | - | 183W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
|
|
BUK6218-40C,118MOSFET N-CH 40V 42A DPAK Nexperia USA Inc. |
3,510 | - |
|
数据手册 |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 42A (Tc) | 10V | 16mOhm @ 10A, 10V | 2.8V @ 1mA | 22 nC @ 10 V | ±16V | 1170 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
PMPB15XPHMOSFET P-CH 12V 8.2A DFN2020MD-6 Nexperia USA Inc. |
2,950 | - |
|
数据手册 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8.2A (Ta) | 1.8V, 4.5V | 19mOhm @ 8.2A, 4.5V | 900mV @ 250µA | 100 nC @ 4.5 V | ±12V | 2875 pF @ 6 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
|
BUK9629-100B,118MOSFET N-CH 100V 46A D2PAK Nexperia USA Inc. |
1,600 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 46A (Tc) | 5V, 10V | 27mOhm @ 25A, 10V | 2V @ 1mA | 33 nC @ 5 V | ±15V | 4360 pF @ 25 V | - | 157W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
