场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMPB14R0EPXMOSFET P-CH 30V 9A DFN2020M-6 Nexperia USA Inc. |
2,193 | - |
|
数据手册 |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | - | 16mOhm @ 8.5A, 10V | 2V @ 250µA | 40 nC @ 10 V | ±20V | 227 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
PH1730AL,115MOSFET N-CH 30V 100A LFPAK56 Nexperia USA Inc. |
2,766 | - |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | - | 1.7mOhm @ 15A, 10V | 2.15V @ 1mA | 77.9 nC @ 10 V | - | 5057 pF @ 12 V | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
BUK762R7-30B,118MOSFET N-CH 30V 75A D2PAK Nexperia USA Inc. |
2,949 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 2.7mOhm @ 25A, 10V | 4V @ 1mA | 91 nC @ 10 V | ±20V | 6212 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK9620-100B,118MOSFET N-CH 100V 63A D2PAK Nexperia USA Inc. |
3,200 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 63A (Tc) | 4.5V, 10V | 18.5mOhm @ 25A, 10V | 2V @ 1mA | 53.4 nC @ 5 V | ±15V | 5657 pF @ 25 V | - | 203W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
PHB33NQ20T,118MOSFET N-CH 200V 32.7A D2PAK Nexperia USA Inc. |
5,600 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 32.7A (Tc) | 10V | 77mOhm @ 15A, 10V | 4V @ 1mA | 32.2 nC @ 10 V | ±20V | 1870 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
_SOT226 Pkg.jpg)
|
BUK7E3R5-60E,127MOSFET N-CH 60V 120A I2PAK Nexperia USA Inc. |
2,273 | - |
|
数据手册 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.5mOhm @ 25A, 10V | 4V @ 1mA | 114 nC @ 10 V | ±20V | 8920 pF @ 25 V | - | 293W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|

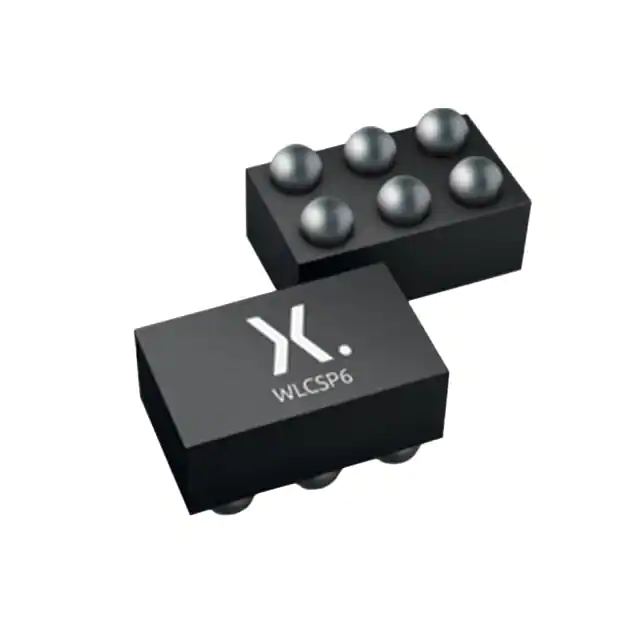

PMCM6501UPEZMOSFET P-CH 20V 6WLCSP Nexperia USA Inc. |
11,299 | - |
|
数据手册 |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.3A (Tj) | 2.5V, 4.5V | - | - | 19.1 nC @ 4.5 V | ±8V | - | - | 556mW | 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.48x0.98) |
|
PMCM6501VPEZMOSFET P-CH 12V 6.2A 6WLCSP Nexperia USA Inc. |
4,435 | - |
|
数据手册 |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 6.2A (Ta) | 1.8V, 4.5V | 25mOhm @ 3A, 4.5V | 900mV @ 250µA | 29.4 nC @ 4.5 V | ±8V | 1400 pF @ 6 V | - | 556mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.48x0.98) |
|
PMCM6501UNEZMOSFET N-CH 20V 8.7A 6WLCSP Nexperia USA Inc. |
3,150 | - |
|
数据手册 |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 8.7A (Ta) | 1.5V, 4.5V | 21mOhm @ 3A, 4.5V | 900mV @ 250µA | 6.2 nC @ 4.5 V | ±8V | 1050 pF @ 10 V | - | 400mW | 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.48x0.98) |
|
BUK9245-55A,118MOSFET N-CH 55V 28A DPAK Nexperia USA Inc. |
4,687 | - |
|
数据手册 |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 28A (Tc) | 4.5V, 10V | 40mOhm @ 5A, 10V | 2V @ 1mA | 14 nC @ 5 V | ±15V | 1006 pF @ 25 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
