穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4400-008LFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,122 |
|
数据手册 |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 5dB @ 1GHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|
4400-032LFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,470 |
|
数据手册 |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 20dB @ 100MHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|

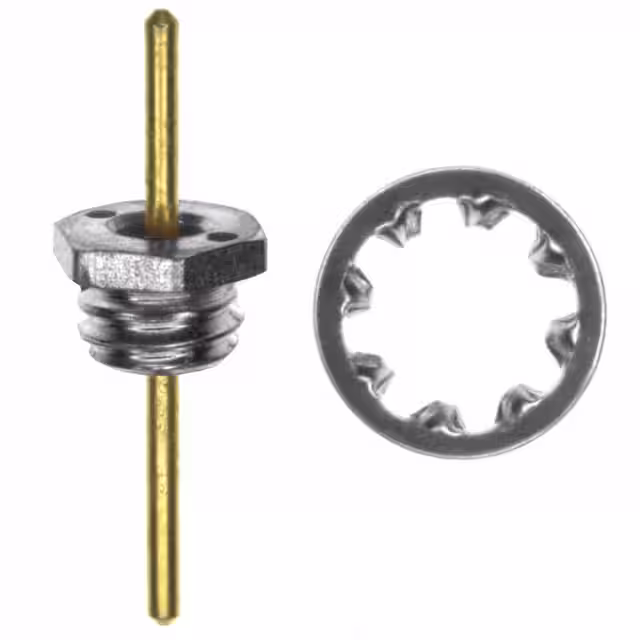

4401-014LFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,988 |
|
数据手册 |
4401 | Axial, Bushing | Tray | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.187" Dia x 0.130" L (4.75mm x 3.31mm) | - | 8-36 |
|

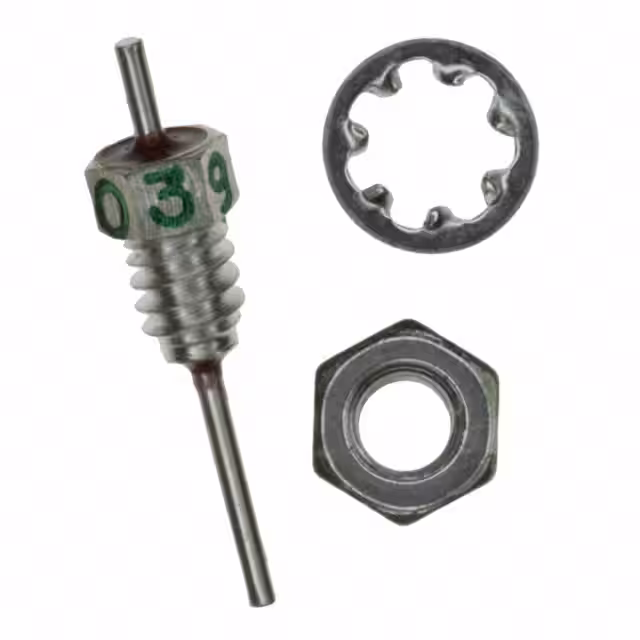

4403-039LFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,529 |
|
数据手册 |
4403 | Axial, Bushing | Tray | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 10dB @ 1GHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|

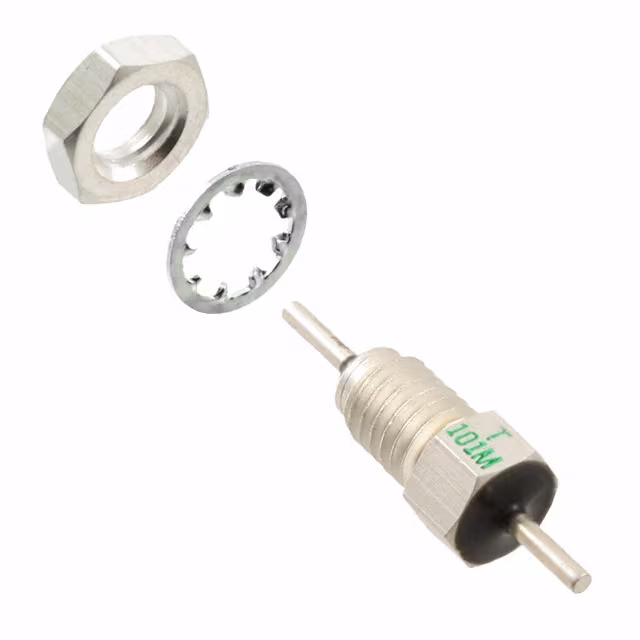

2499-003-X7R0-101MLFCAP FEEDTHRU 100PF 250V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,950 |
|
数据手册 |
2499 | Axial, Bushing | Bulk | Active | 100 pF | ±20% | 250V | 20 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
|
2499-540-X7R0-102PLFCAP FEEDTHRU 1000PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,201 |
|
数据手册 |
2499 | Axial, Bushing | Bulk | Active | 1000 pF | 0%, +100% | 500V | 10 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.236" Dia x 0.610" L (6.00mm x 15.50mm) | - | M5x0.8 |
|
0327-010-X5U0-502PCAP FEEDTHRU 5000PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,658 |
|
数据手册 |
0327 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 5000 pF | 0%, +100% | 500V | 20 A | - | -55°C ~ 85°C | 30dB @ 100MHz | X5U | - | - | 0.312" Dia x 0.750" L (7.92mm x 19.05mm) | - | 5/16 |
|
|
0357-001-X5W0-103ZCAP FEEDTHRU 0.01UF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,158 |
|
数据手册 |
0357 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 10000 pF | -20%, +80% | 500V | 20 A | - | -55°C ~ 85°C | 35dB @ 100MHz | X5W | - | - | 0.313" Dia x 0.625" L (7.95mm x 15.87mm) | - | 12-28 |
|
|
0357-001-X5W0-103ZLFCAP FEEDTHRU 0.01UF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,815 |
|
数据手册 |
0357 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 10000 pF | -20%, +80% | 500V | 20 A | - | -55°C ~ 85°C | 35dB @ 100MHz | X5W | - | - | 0.313" Dia x 0.625" L (7.95mm x 15.87mm) | - | 12-28 |
|
|
2425-000-X5U0-102ZLFCAP FEEDTHRU 1000PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,601 |
|
数据手册 |
2425 | Axial, Bushing - 2 Notched Leads | Bulk | Active | 1000 pF | -20%, +80% | 200V | 20 A | - | -55°C ~ 85°C | - | X5U | - | Chassis Mount | 0.312" Dia x 0.348" L (7.92mm x 8.84mm) | - | 12-32 |
