穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2425-001-X5U0-152AALFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
2,331 |
|
数据手册 |
2425 | Axial, Bushing, 1 Turret Lead | Bulk | Active | - | - | 200V | 20 A | - | -55°C ~ 85°C | - | X5U | - | - | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - | 8-32 |
|
2443-007-X5S0-102MLFCAP FEEDTHRU 1000PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,476 |
|
数据手册 |
2443 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 1000 pF | ±20% | 500V | - | - | -55°C ~ 85°C | - | X5S | - | - | 0.312" Dia x 0.886" L (7.92mm x 22.51mm) | - | 1/4"-28 |
|

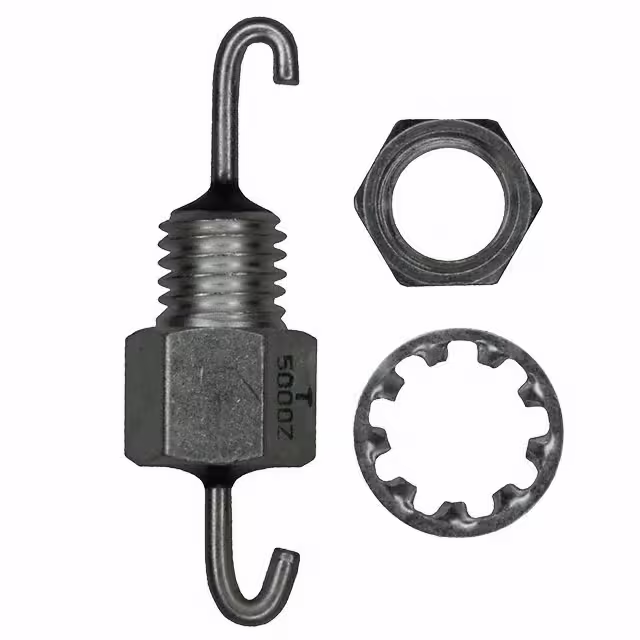

2443-007-X5W0-502ZLFCAP FEEDTHRU 5000PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,391 |
|
数据手册 |
2443 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 5000 pF | -20%, +80% | 500V | - | - | -55°C ~ 85°C | 30dB @ 100MHz | X5W | - | - | 0.312" Dia x 0.668" L (7.92mm x 16.97mm) | - | 1/4"-28 |
|
2461-000-X7V0-152PLFCAP FEEDTHRU 1500PF 100V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,527 |
|
数据手册 |
2461 | Axial, Shoulder - No Leads | Bulk | Active | 1500 pF | 0%, +100% | 100V | - | - | -55°C ~ 125°C | - | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
|

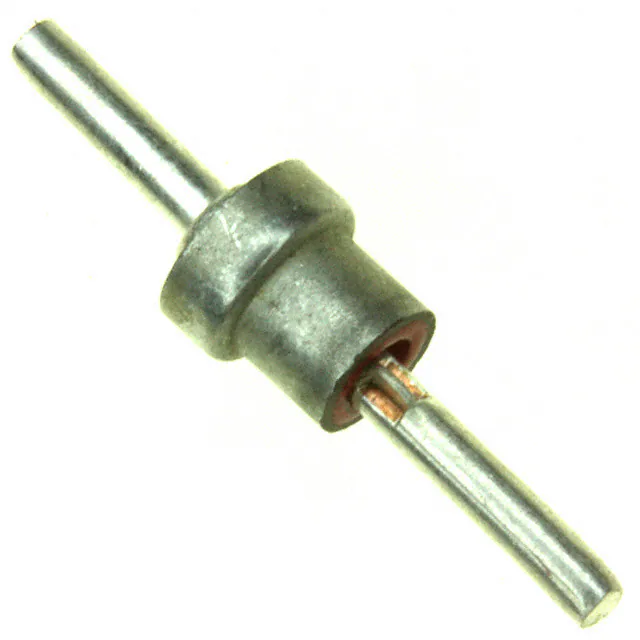

2461-001-X7V0-152PLFCAP FEEDTHRU 1500PF 100V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,462 |
|
数据手册 |
2461 | Axial, Shoulder | Bulk | Active | 1500 pF | 0%, +100% | 100V | 20 A | - | -55°C ~ 125°C | - | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
|

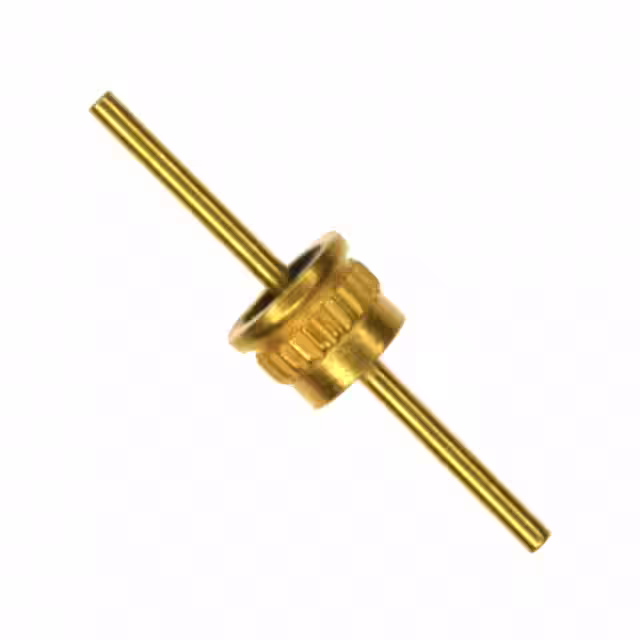

4304-003LFCAP FEEDTHRU 100PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
2,729 |
|
数据手册 |
4304 | Axial, Press Fit | Bulk | Active | 100 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|

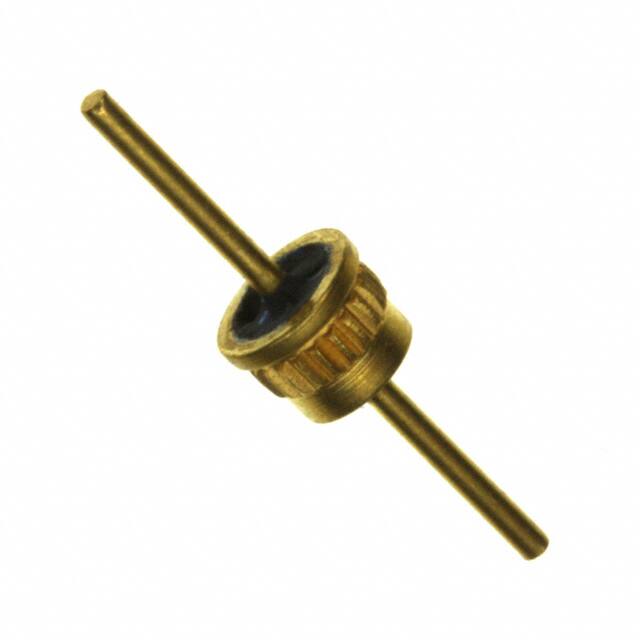

4304-011LFCAP FEEDTHRU 0.05UF 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,261 |
|
数据手册 |
4304 | Axial, Press Fit | Bulk | Active | 0.05 µF | 0%, +100% | 50V | 5 A | - | -55°C ~ 125°C | 45dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4306-005LFCAP FEEDTHRU 50PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,120 |
|
数据手册 |
4306 | Axial, Press Fit | Bulk | Active | 50 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 10dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-018LFCAP FEEDTHRU 50PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,814 |
|
数据手册 |
4306 | Axial, Press Fit | Bulk | Active | 50 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 10dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-681LFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,713 |
|
数据手册 |
4306 | Axial, Press Fit | Bulk | Active | - | - | 200V | 5 A | - | -55°C ~ 125°C | - | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
