穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4401-000DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components |
2,616 |
|
数据手册 |
4401 | Axial, Bushing | Bulk | Active | 100 pF | - | 200V | 10 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | Chassis Mount | 0.187" Dia x 0.130" L (4.75mm x 3.31mm) | - | - |
|
|
4311-006DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components |
4,030 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4311-005DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components |
3,302 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4311-008DISCOIDAL FILTER Tusonix a Subsidiary of CTS Electronic Components |
3,423 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

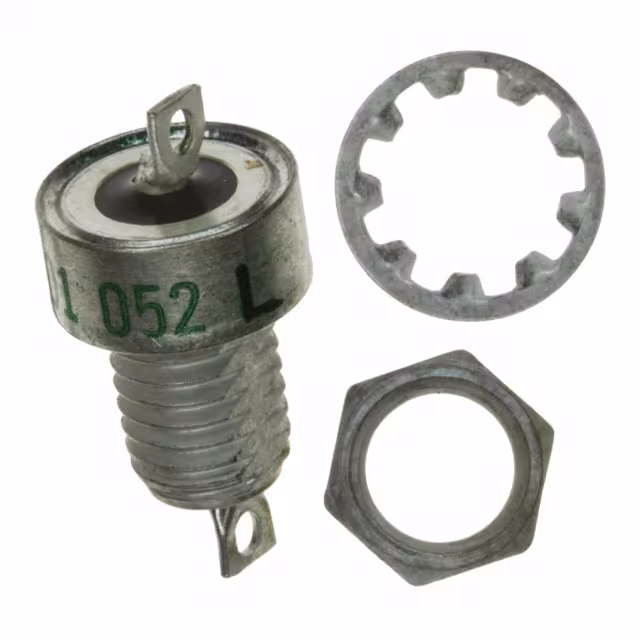

4601-052LFCAP FEEDTHRU 70V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
2,207 |
|
数据手册 |
4601 | Axial, Bushing - 2 Solder Eyelets | Tray | Active | - | - | 70V | 15 A | - | - | 70dB @ 1GHz | X7W | - | - | 0.385" Dia x 0.487" L (9.78mm x 12.37mm) | - | 1/4"-28 |
|
|
4601-052CAP FEEDTHRU 1.4UF 70V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,766 |
|
数据手册 |
4601 | Axial, Bushing - 2 Solder Eyelets | Bulk | Active | 1.4 µF | - | 70V | 15 A | - | - | 70dB @ 1GHz | X7W | - | - | 0.385" Dia x 0.487" L (9.78mm x 12.37mm) | - | 1/4"-28 |
|

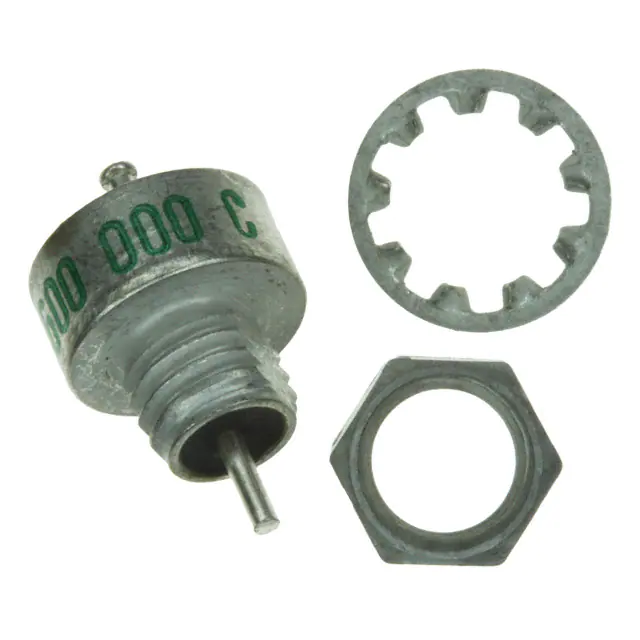

4600-000LFFILTER EMI 1.4 UF C TYPE Tusonix a Subsidiary of CTS Electronic Components |
3,211 |
|
数据手册 |
- | Axial, Bushing, 1 Turret Lead | Tray | Active | 1.4 µF | - | - | 15 A | - | -55°C ~ 125°C | - | - | - | - | 0.385" Dia x 0.362" L (9.78mm x 9.20mm) | - | 1/4"-28 |
|

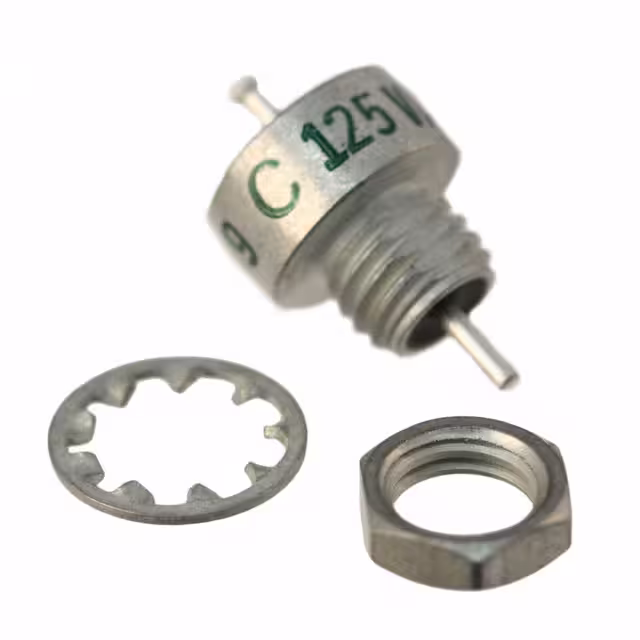

4600-009LFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,758 |
|
数据手册 |
4600 | Axial, Bushing, 1 Turret Lead | Tray | Active | - | - | 200V | 15 A | - | -55°C ~ 125°C | 60dB @ 1GHz | X7R | - | - | 0.385" Dia x 0.362" L (9.78mm x 9.20mm) | - | 1/4"-28 |
|

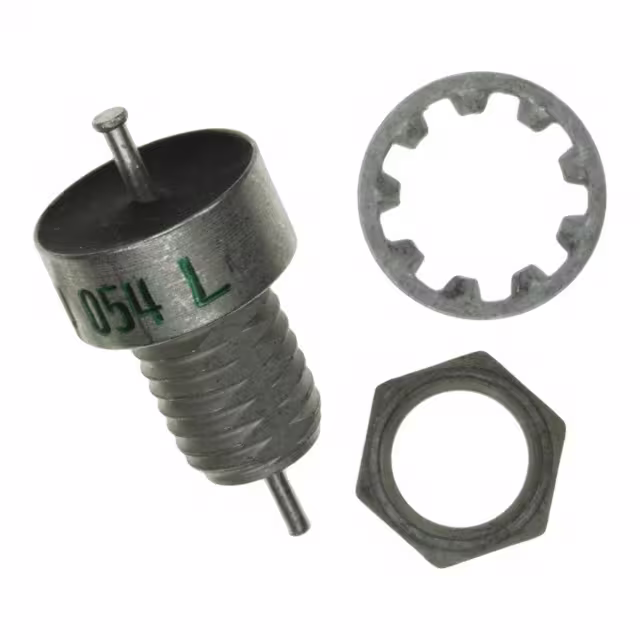

4600-054LFCAP FEEDTHRU 1.4UF 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,159 |
|
数据手册 |
4600 | Axial, Bushing, 1 Turret Lead | Tray | Active | 1.4 µF | - | 50V | 15 A | - | -55°C ~ 125°C | 70dB @ 1GHz | X7R | - | Chassis Mount | 0.385" Dia x 0.487" L (9.78mm x 12.38mm) | - | 1/4"-28 |
|
|
0327-042-X5U0-102MCAP FEEDTHRU 1000PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,519 |
|
数据手册 |
0327 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 1000 pF | ±20% | 500V | - | - | -55°C ~ 85°C | - | X5U | - | Chassis Mount | 0.312" Dia x 0.750" L (7.92mm x 19.05mm) | - | 1/4"-28 |
