直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8412NGLFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
1,911 |
|
数据手册 |
8400N | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 19.0 CFM (0.532m³/min) | - | Sintec | Tubeaxial | - | 12.0dB(A) | 600 mW | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.31 lb (140.61 g) |
|
|
8412NGMFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
1,607 |
|
数据手册 |
8400N | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 34.0 CFM (0.952m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 1.3 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.31 lb (140.61 g) |
|
3412GFAN AXIAL 92X25.4MM 12VDC WIRE ebm-papst Inc. |
1,329 |
|
数据手册 |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.0 CFM (1.37m³/min) | - | Sleeve | Tubeaxial | - | 36.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
3412GHFAN AXIAL 92X25.4MM 12VDC WIRE ebm-papst Inc. |
3,031 |
|
数据手册 |
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 55.0 CFM (1.54m³/min) | - | Sleeve | Tubeaxial | - | 39.0dB(A) | 3.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
3414HFAN AXIAL 92X25.4MM 24VDC WIRE ebm-papst Inc. |
2,168 |
|
数据手册 |
3400 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 55.0 CFM (1.54m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 3.8 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
614MFAN AXIAL 60X25.4MM 24VDC WIRE ebm-papst Inc. |
2,784 |
|
数据手册 |
600 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 18.0 CFM (0.504m³/min) | - | Ball | Tubeaxial | - | 33.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|

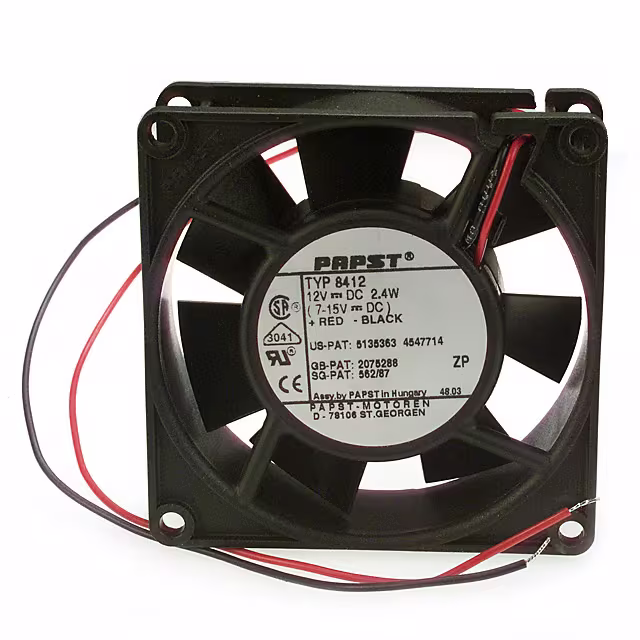

8412FAN AXIAL 80X25MM 12VDC WIRE ebm-papst Inc. |
4,260 |
|
数据手册 |
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
8412MFAN AXIAL 80X25MM 12VDC WIRE ebm-papst Inc. |
3,158 |
|
数据手册 |
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

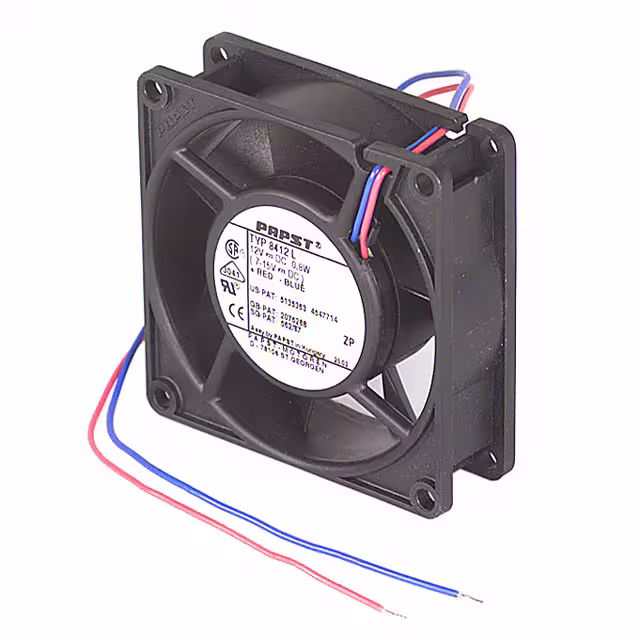

8412LFAN AXIAL 80X25MM 12VDC WIRE ebm-papst Inc. |
2,011 |
|
数据手册 |
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 21.0 CFM (0.588m³/min) | - | Ball | Tubeaxial | - | 21.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
8412/2FAN AXIAL 80X25MM 12VDC WIRE ebm-papst Inc. |
4,853 |
|
数据手册 |
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | - | 3 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
