直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
618NMFAN AXIAL 60X25.4MM 48VDC WIRE ebm-papst Inc. |
3,301 |
|
数据手册 |
600N | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.9 W | 4100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
3252J/2H3PFAN AXIAL 92X38MM 12VDC WIRE ebm-papst Inc. |
4,559 |
|
数据手册 |
S-Panther 3250J | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 158.0 CFM (4.42m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 64.0dB(A) | 35 W | 7450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.529 lb (239.95 g) |
|
4312/17MTFAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
1,102 |
|
数据手册 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 81.0 CFM (2.27m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 3.3 W | 2300 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | - |
|
3214J/39NRFAN AXIAL 92X38MM 24VDC WIRE ebm-papst Inc. |
4,175 |
|
数据手册 |
3200J, S-Force | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | - | Ball | Tubeaxial | Alarm Sensor | 51.0dB(A) | 6.5 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
5212NHFAN AXIAL 127X38MM 12VDC WIRE ebm-papst Inc. |
3,861 |
|
数据手册 |
5200N | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.3 CFM (4.15m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 9.8 W | 3650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|

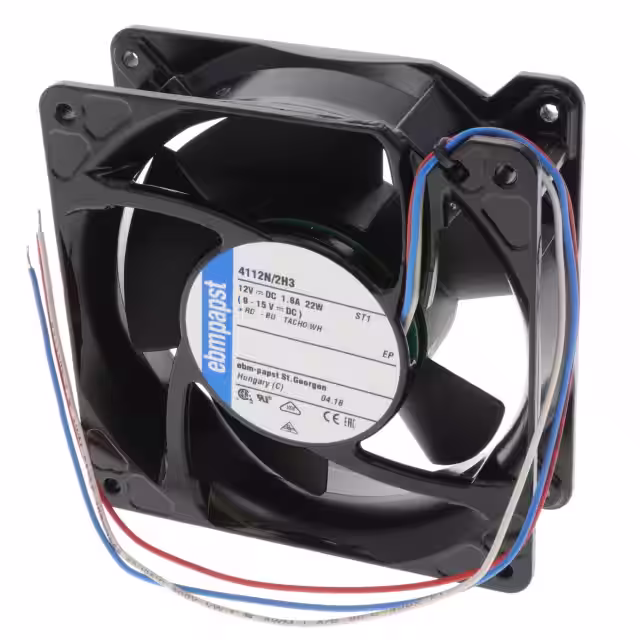

4112N/2H3FAN AXIAL 119X38MM 12VDC WIRE ebm-papst Inc. |
4,682 |
|
数据手册 |
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 182.0 CFM (5.10m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 21.6 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL | - |
|
W2G115-AE31-01FAN AXIAL 127X38MM 24VDC WIRE ebm-papst Inc. |
1,231 |
|
数据手册 |
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 130.0 CFM (3.64m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 5.7 W | - | 2 Wire Leads | - | - | - | 1.6 lbs (725.7 g) |
|
4114NXHHU-233FAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
3,921 |
|
数据手册 |
4100NU | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | 0.819 in H2O (204.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 60.0dB(A) | 13.6 W | 4900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -13 ~ 131°F (-25 ~ 55°C) | UL | 0.882 lb (400.07 g) |
_Series.JPG)
|
6224NMUFAN AXIAL 171.5X50.8MM 24VDC ebm-papst Inc. |
4,126 |
|
数据手册 |
6200NU | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | - | 50.0dB(A) | 11.6 W | 2950 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | UL | 1.9 lbs (861.8 g) |
|
R1G133-AA65-02FAN IMP MTRZD 133X91MM 48VDC ebm-papst Inc. |
2,793 |
|
数据手册 |
R1G133AA | Bulk | Active | 48VDC | Round - 133mm Dia | 91.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 28 W | 3900 RPM | 4 Wire Leads | - | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, UL | 1.5 lbs (680.4 g) |
