直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1G133-AA65-36FAN IMP MTRZD 133X91MM 48VDC ebm-papst Inc. |
2,698 |
|
数据手册 |
R1G133AA | Bulk | Active | 48VDC | Round - 133mm Dia | 91.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 28 W | 3900 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, UL | - |
|
G1G140-AV17-02FAN BLOWER 226.3X130.0MM 24VDC ebm-papst Inc. |
1,575 |
|
数据手册 |
G1G140 | Bulk | Active | 24VDC | Rectangular/Rounded - 226.3mm L x 261.5mm H | 130.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 54 W | 1750 RPM | 4 Wire Leads with Splice Terminals | IP22 | -13 ~ 140°F (-25 ~ 60°C) | EAC | - |
|
R1G280-AE45-52FAN IMP MTRZD 281X125.0MM 24VDC ebm-papst Inc. |
2,462 |
|
数据手册 |
R1G280 | Bulk | Active | 24VDC | Round - 281mm Dia | 125.0mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 95 W | 1710 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
8414GFAN AXIAL 80X25MM 24VDC WIRE ebm-papst Inc. |
4,610 |
|
数据手册 |
8400 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 2.3 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
8412GFAN AXIAL 80X25MM 12VDC WIRE ebm-papst Inc. |
3,520 |
|
数据手册 |
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 2.3 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
8412GLFAN AXIAL 80X25MM 12VDC WIRE ebm-papst Inc. |
4,530 |
|
数据手册 |
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 21.0 CFM (0.588m³/min) | - | Sintec | Tubeaxial | - | 20.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
8412GMFAN AXIAL 80X25MM 12VDC WIRE ebm-papst Inc. |
3,089 |
|
数据手册 |
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | - | Sintec | Tubeaxial | - | 29.0dB(A) | 1.2 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
8412NGMLFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
2,565 |
|
数据手册 |
8400N | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 27.0 CFM (0.756m³/min) | - | Sintec | Tubeaxial | - | 19.0dB(A) | 900 mW | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.31 lb (140.61 g) |
|

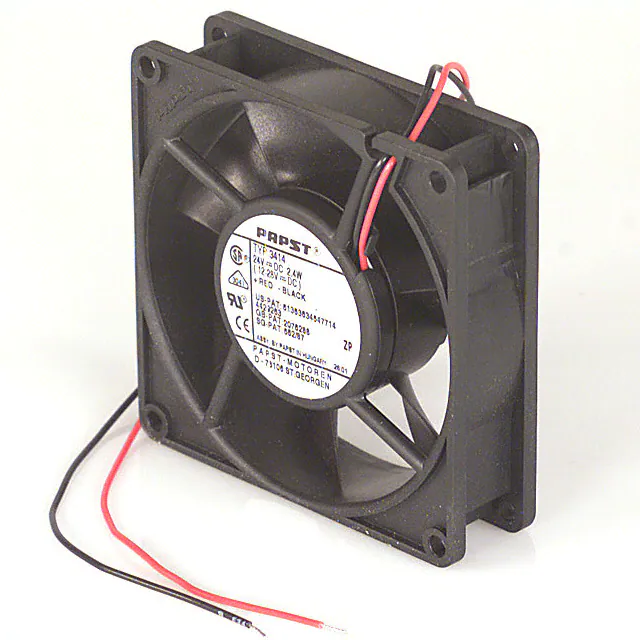

3414FAN AXIAL 92X25.4MM 24VDC WIRE ebm-papst Inc. |
3,482 |
|
数据手册 |
3400 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 49.0 CFM (1.37m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.6 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
3414LFAN AXIAL 92X25.4MM 24VDC WIRE ebm-papst Inc. |
4,418 |
|
数据手册 |
3400 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 36.0 CFM (1.01m³/min) | - | Ball | Tubeaxial | - | 27.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
