直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE1205PHS3FAN AXIAL 52X15.5MM 12VDC WIRE Sunon Fans |
3,596 |
|
数据手册 |
KDE | - | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.50mm | 7.6 CFM (0.213m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 24.0dB(A) | 900 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
|
|
KD1205PHS3 HFAN AXIAL 52X15MM 12VDC WIRE Sunon Fans |
3,724 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 7.6 CFM (0.213m³/min) | - | Sleeve | Tubeaxial | - | - | 900 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|

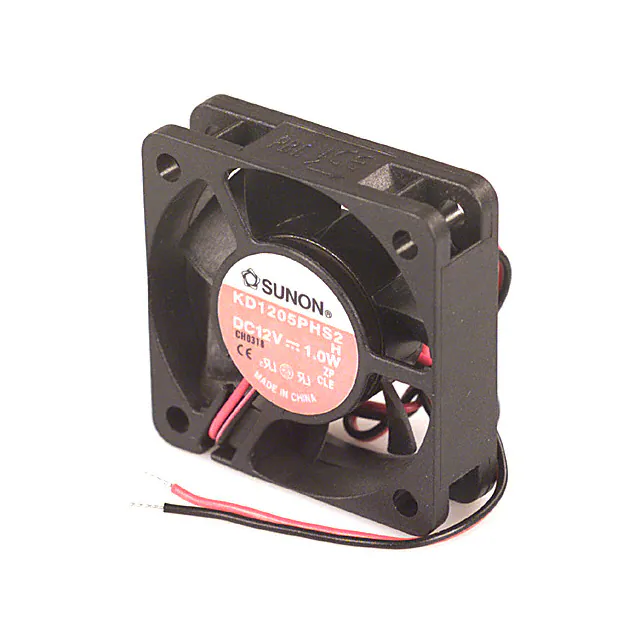

KD1205PHS2 HFAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
2,832 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 1 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
|

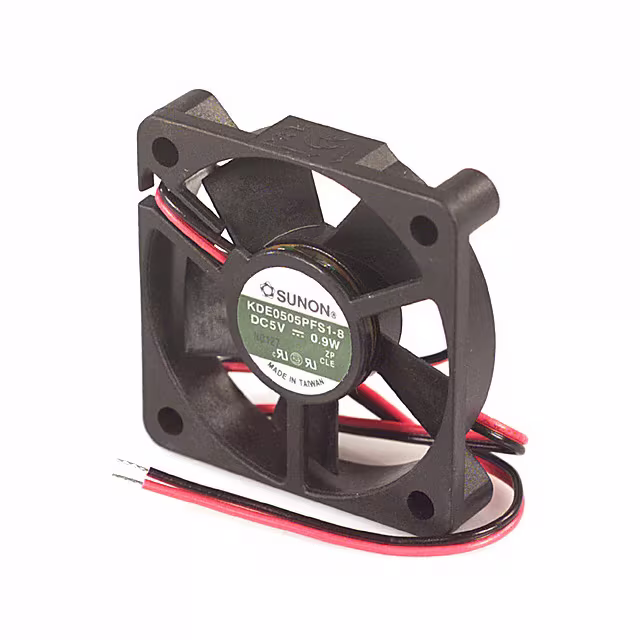

KDE0505PFS1-8FAN AXIAL 50X10.5MM 5VDC WIRE Sunon Fans |
1,991 |
|
数据手册 |
KDE | - | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.50mm | 9.6 CFM (0.269m³/min) | 0.105 in H2O (26.1 Pa) | Sleeve | Tubeaxial | - | 30.5dB(A) | 900 mW | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.053 lb (24.04 g) |
|
KDE0505PFS2-8FAN AXIAL 50X10MM 5VDC WIRE Sunon Fans |
4,457 |
|
数据手册 |
KDE | - | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 600 mW | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.053 lb (24.04 g) |
|

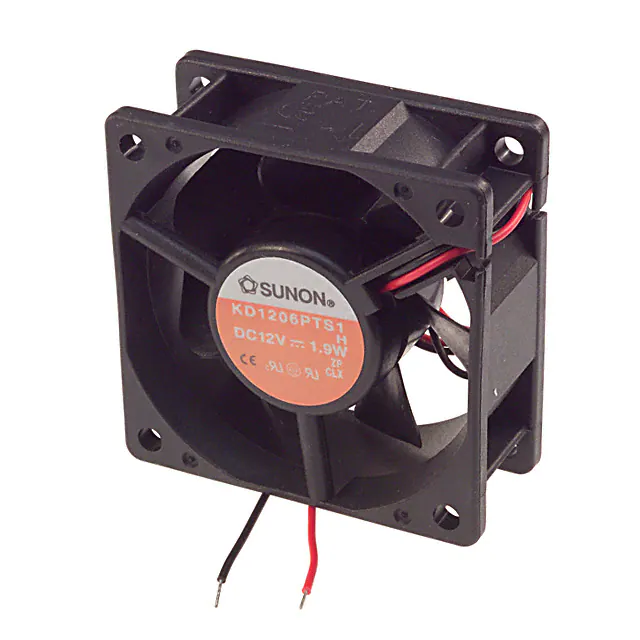

KD1206PTS1 HFAN AXIAL 60X25.5MM 12VDC WIRE Sunon Fans |
3,313 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 22.5 CFM (0.630m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | - | 33.5dB(A) | 1.9 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|
|
KD1206PTS2 HFAN AXIAL 60X25.5MM 12VDC WIRE Sunon Fans |
2,196 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 18.0 CFM (0.504m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 1.3 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|
|
KD1206PTS3. HFAN AXIAL 60X25.5MM 12VDC WIRE Sunon Fans |
4,040 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 800 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|

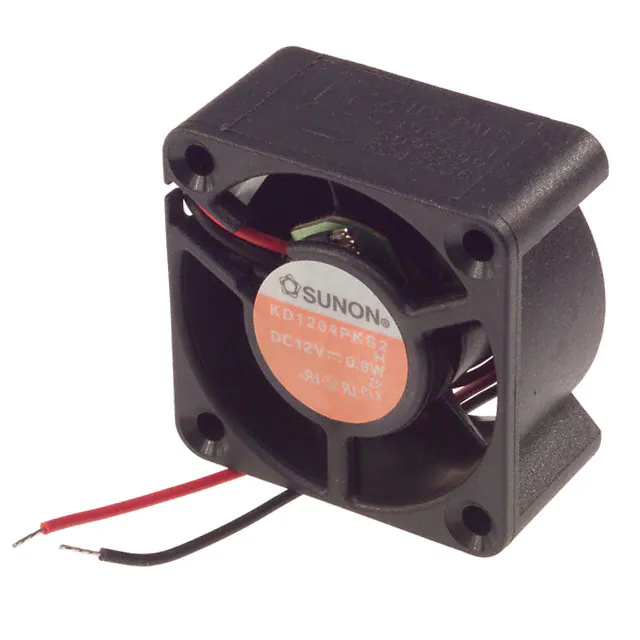

KD1204PKS2 HFAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
4,614 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 21.0dB(A) | 800 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.062 lb (28.12 g) |
|
|
KD1206PHS1 HFAN AXIAL 60X15MM 12VDC WIRE Sunon Fans |
1,949 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 36.0dB(A) | 1.8 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.086 lb (39.01 g) |
