直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KD1204PFB3 HFAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
4,428 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.7 CFM (0.132m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 600 mW | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|

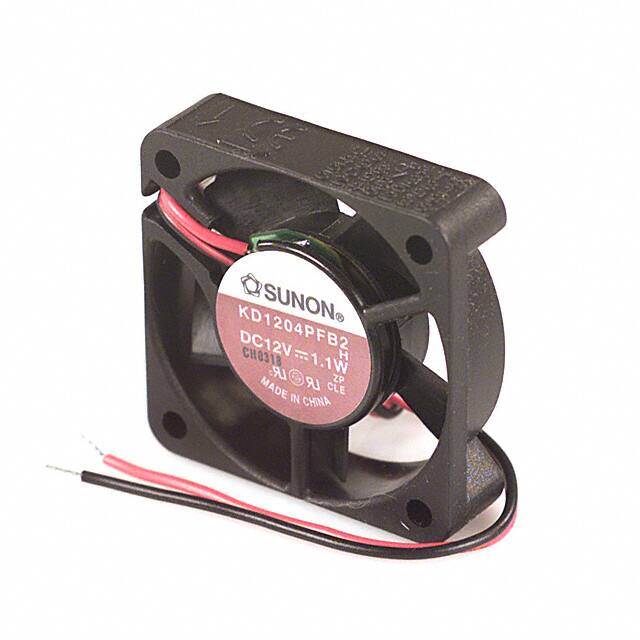

KD1204PFB2 HFAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
4,818 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 6.5 CFM (0.182m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 1.1 W | 6600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|
EB45101S2-000U-999FAN Sunon Fans |
1,808 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE45101S1-000U-999FAN Sunon Fans |
1,586 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

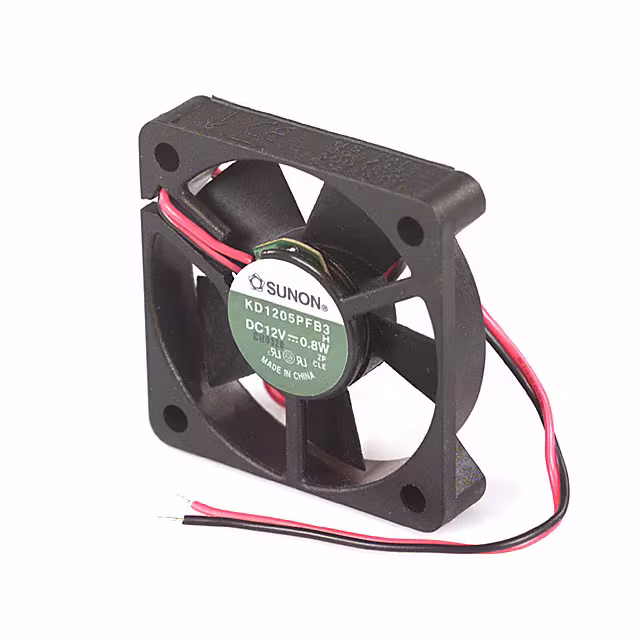

KD1205PFB3 HFAN AXIAL 50X10.5MM 12VDC WIRE Sunon Fans |
1,508 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 8.0 CFM (0.224m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 24.3dB(A) | 800 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|

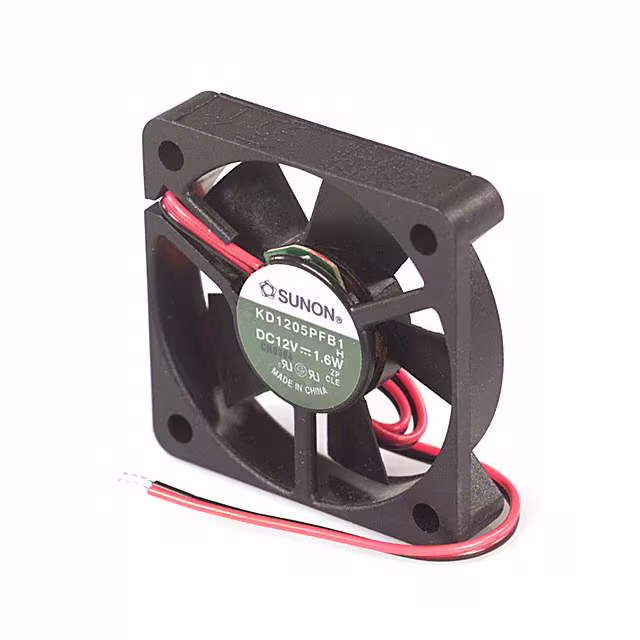

KD1205PFB1 HFAN AXIAL 50X10.5MM 12VDC WIRE Sunon Fans |
1,781 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.4 CFM (0.319m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 34.7dB(A) | 1.6 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|

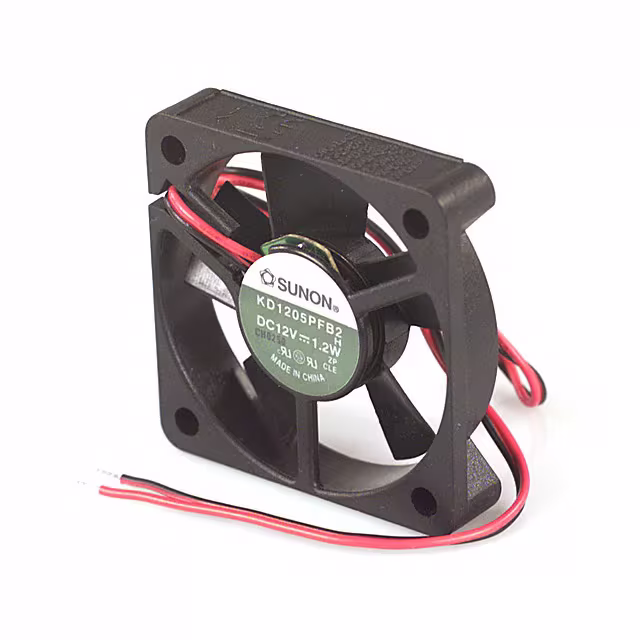

KD1205PFB2 HFAN AXIAL 50X10.5MM 12VDC WIRE Sunon Fans |
3,380 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 9.5 CFM (0.266m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.9dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|
KDE1204PFV3 11.MS.B981.A.GNFAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
2,557 |
|
数据手册 |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 20.0dB(A) | 600 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.04 lb (18.14 g) |
|
EE80251B2-000U-999FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
1,648 |
|
数据手册 |
EE | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
HAC0251S4-000U-999FAN AXIAL 120X25MM 12VDC WIRE Sunon Fans |
3,571 |
|
数据手册 |
HAC | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | - | 29.6dB(A) | 1.9 W | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.218 lb (98.88 g) |
