直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

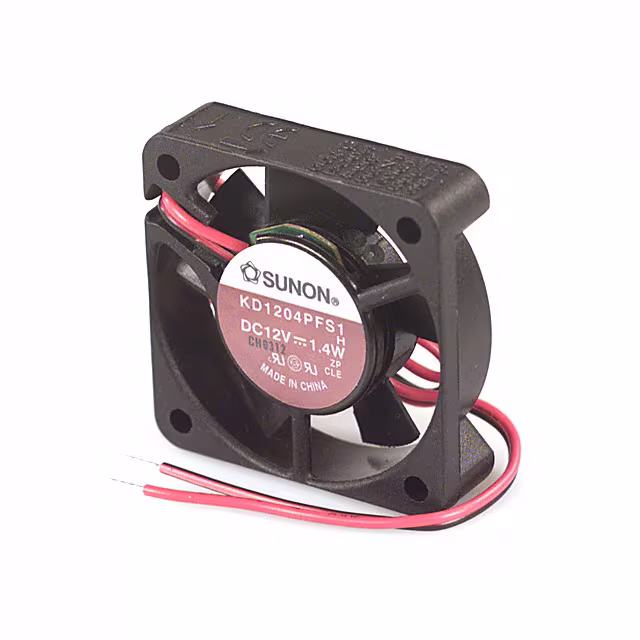

KD1204PFS1 HFAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
3,542 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 7.3 CFM (0.204m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 30.3dB(A) | 1.4 W | 7400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|

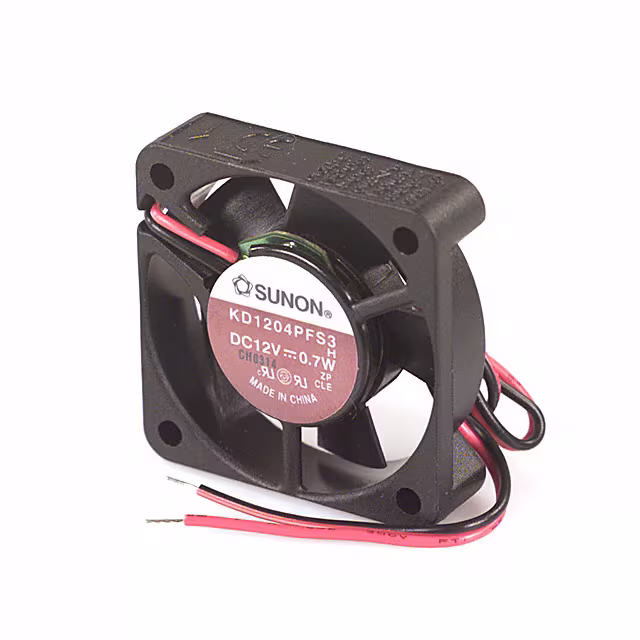

KD1204PFS3 HFAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
1,136 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 22.0dB(A) | 700 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|

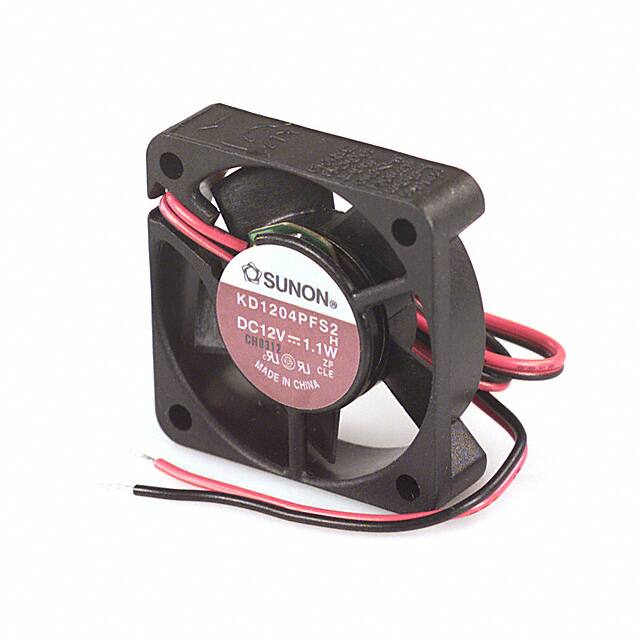

KD1204PFS2 HFAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
2,058 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 1.1 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|
KD1245PFS3 HFAN AXIAL 45X10.5MM 12VDC WIRE Sunon Fans |
2,232 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.50mm | 5.5 CFM (0.154m³/min) | - | Sleeve | Tubeaxial | - | - | 500 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
KD1245PFS2 HFAN AXIAL 45X10MM 12VDC WIRE Sunon Fans |
4,516 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 7.1 CFM (0.199m³/min) | - | Sleeve | Tubeaxial | - | - | 1.2 W | - | 2 Wire Leads | - | - | - | - |
|
|
KD1208PTS2 HFAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
2,885 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.5 CFM (1.02m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 30.0dB(A) | 2.3 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.204 lb (92.53 g) |
|
|
KD1208PTS3 HFAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
3,877 |
|
数据手册 |
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 1.6 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.204 lb (92.53 g) |
|
|
ME80201V1-000U-G99DC FAN 80X20MM Sunon Fans |
1,730 |
|
数据手册 |
ME | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 35.9 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.0dB(A) | 1.56 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MC25150V2-000U-A99DC FAN 25X10MM Sunon Fans |
4,021 |
|
数据手册 |
MC | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 14.0dB(A) | 0.3 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
ME45101V1-000U-G99DC FAN 45X10MM Sunon Fans |
1,916 |
|
数据手册 |
ME | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.8 CFM (0.330m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.5dB(A) | 1.32 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
