直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4015B-1105-365-22DC AXIAL FAN, 40 MM SQUARE, 15 M Same Sky (Formerly CUI Devices) |
1,042 |
|
数据手册 |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 12.3 CFM (0.344m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.5dB(A) | 2.52 W | 10500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG-235-253-20DC AXIAL FAN, 60 MM SQUARE, 25 M Same Sky (Formerly CUI Devices) |
1,928 |
|
数据手册 |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.3dB(A) | 0.96 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG-135-253-20DC AXIAL FAN, 60 MM SQUARE, 25 M Same Sky (Formerly CUI Devices) |
2,725 |
|
数据手册 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.3dB(A) | 0.72 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5020B-150-320-22DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
2,355 |
|
数据手册 |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 5.1 CFM (0.143m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.04 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025V-242-435FAN AXIAL 80X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,331 |
|
数据手册 |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 43.5dB(A) | 3.8 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
|
CFM-8025V-245-450FAN AXIAL 80X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,589 |
|
数据手册 |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 45.0dB(A) | 4.59 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.201 lb (91.17 g) |
|
CFM-9225V-239-420FAN AXIAL 92X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,955 |
|
数据手册 |
CFM-92V | Tray | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 4.28 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.227 lb (102.97 g) |
|
|
CFM-9225V-242-440FAN AXIAL 92X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,007 |
|
数据手册 |
CFM-92V | Tray | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.0dB(A) | 4.97 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.227 lb (102.97 g) |
|

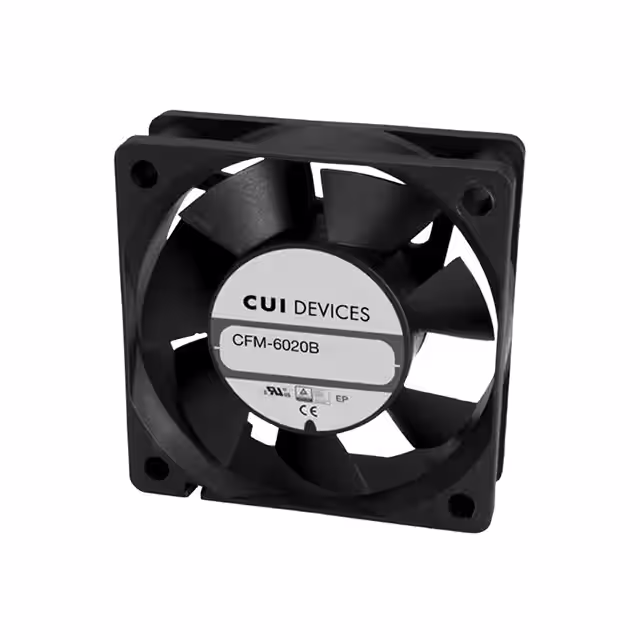

CFM-6020B-030-257-22FAN AXIAL 60X20MM BALL 5VDC WIRE Same Sky (Formerly CUI Devices) |
2,893 |
|
数据手册 |
CFM-60B | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.7dB(A) | 700 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020B-040-320-22FAN AXIAL 60X20MM BALL 5VDC WIRE Same Sky (Formerly CUI Devices) |
2,594 |
|
数据手册 |
CFM-60B | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.05 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
