直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

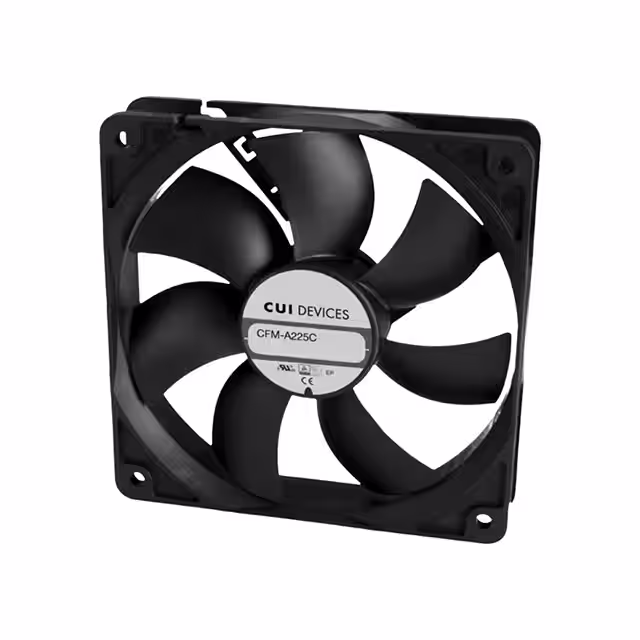

CFM-A225C-220-350-22FAN AXIAL 120X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,244 |
|
数据手册 |
CFM-120C | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.8dB(A) | 4.08 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020B-250-368-22DC AXIAL FAN, 60 MM SQUARE, 20 M Same Sky (Formerly CUI Devices) |
4,636 |
|
数据手册 |
CFM-60B | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 25.0 CFM (0.700m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.9dB(A) | 2.4 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
6025BF).jpg)
|
CFM-6015BF-265-412-22FAN AXIAL 60X15.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,450 |
|
数据手册 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 28.6 CFM (0.801m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.2dB(A) | 5.76 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225C-220-269-22FAN AXIAL 92X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,890 |
|
数据手册 |
CFM-92C | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 33.4 CFM (0.935m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.9dB(A) | 1.2 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225C-230-356-22FAN AXIAL 92X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,018 |
|
数据手册 |
CFM-92C | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.6dB(A) | 3.6 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225C-225-317-22FAN AXIAL 92X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,419 |
|
数据手册 |
CFM-92C | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.7dB(A) | 1.92 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015BF-165-428-22DC BLOWER, 51.7 X 51.25 X 14.9 M Same Sky (Formerly CUI Devices) |
4,042 |
|
数据手册 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 4.1 CFM (0.115m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.8dB(A) | 2.16 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025BF-175-439-20FAN AXIAL 60X25.4MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,954 |
|
数据手册 |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 35.9 CFM (1.01m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 6.48 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3828BF-1210-590FAN AXIAL 38X28MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,660 |
|
数据手册 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Tubeaxial | Auto Restart | 59.0dB(A) | 11.4 W | 21000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025V-242-435-20FAN AXIAL 80X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,157 |
|
数据手册 |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.5dB(A) | 3.8 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.201 lb (91.17 g) |
