直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8020BF-155-444FAN AXIAL 80X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,514 |
|
数据手册 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.9 CFM (1.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 5.4 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8020V-230-350FAN AXIAL 80X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,397 |
|
数据手册 |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 33.1 CFM (0.927m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.0dB(A) | 1.42 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|

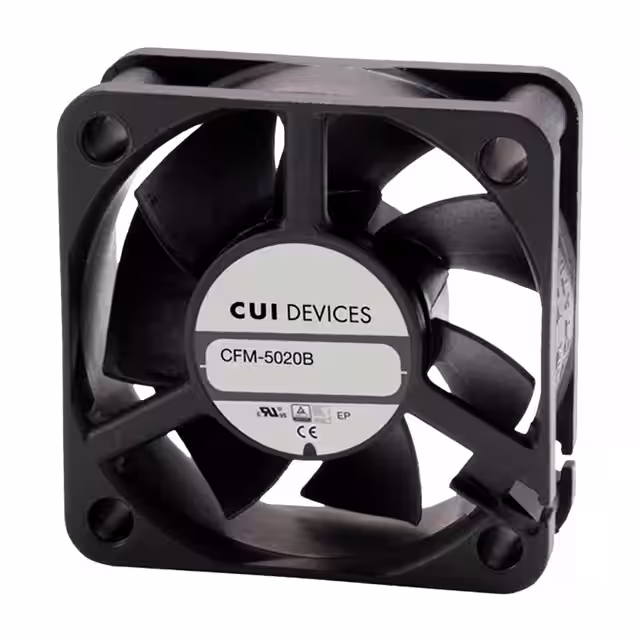

CFM-5020B-130-235-22FAN AXIAL 50X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,008 |
|
数据手册 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 8.1 CFM (0.227m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 23.5dB(A) | 600 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015BF-175-423-22FAN AXIAL 50X15.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,495 |
|
数据手册 |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 19.5 CFM (0.546m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.3dB(A) | 3.84 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020B-145-323-22FAN AXIAL 50X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,452 |
|
数据手册 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 12.1 CFM (0.338m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.3dB(A) | 1.44 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

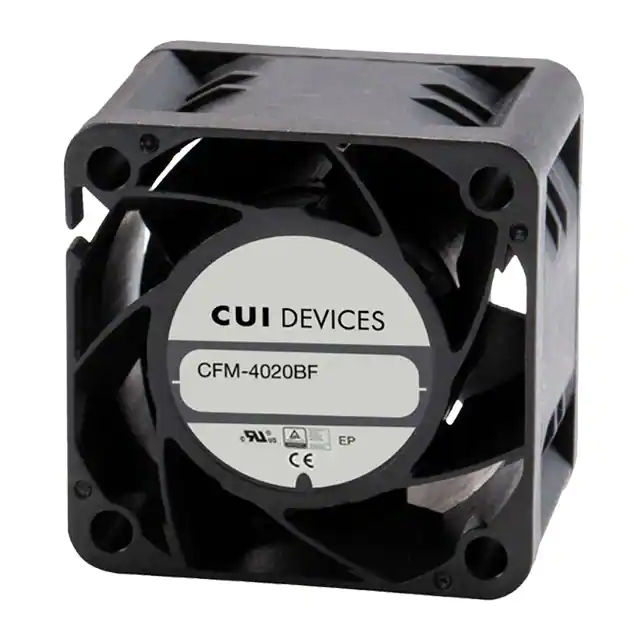

CFM-4020BF-2110-381-22FAN AXIAL 40X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,776 |
|
数据手册 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.1dB(A) | 2.88 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-5015BF-145-348-22DC BLOWER, 51.7 X 51.25 X 14.9 M Same Sky (Formerly CUI Devices) |
2,521 |
|
数据手册 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.9 CFM (0.081m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 34.8dB(A) | 1.44 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015BF-135-293-22DC BLOWER, 51.7 X 51.25 X 14.9 M Same Sky (Formerly CUI Devices) |
3,281 |
|
数据手册 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 29.4dB(A) | 600 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4020B-145-305-22DC BLOWER, 40 MM SQUARE, 20 MM, Same Sky (Formerly CUI Devices) |
3,841 |
|
数据手册 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 2.0 CFM (0.056m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 0.48 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020B-260-367-22DC AXIAL FAN, 50 MM SQUARE, 20 M Same Sky (Formerly CUI Devices) |
4,362 |
|
数据手册 |
CFM-50B | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 18.2 CFM (0.510m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.7dB(A) | 1.68 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
