直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-A225B-115-287FAN AXIAL 120X25.4MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,117 |
|
数据手册 |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart | 24.8dB(A) | 2.76 W | 1500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8020BF-255-444FAN AXIAL 80X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,244 |
|
数据手册 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 53.9 CFM (1.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 6.48 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(8020CF).jpg)
|
CFM-8020CF-145-401-22FAN AXIAL 80X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,871 |
|
数据手册 |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.2dB(A) | 3.6 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020CF-235-346-22FAN AXIAL 80X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,623 |
|
数据手册 |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020CF-225-273-22FAN AXIAL 80X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,505 |
|
数据手册 |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 24.5 CFM (0.685m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.4dB(A) | 1.2 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

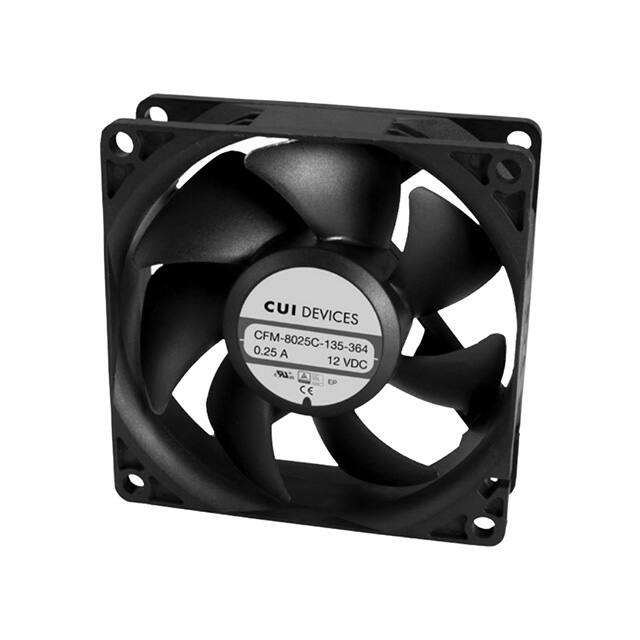

CFM-8025C-135-364-22FAN AXIAL 80X25MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,654 |
|
数据手册 |
CFM-80C | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.4dB(A) | 3.96 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025C-130-330-22FAN AXIAL 80X25MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,754 |
|
数据手册 |
CFM-80C | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020BF-295-342-22FAN AXIAL 40X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,810 |
|
数据手册 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.2dB(A) | 2.88 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(7025C).jpg)
|
CFM-7025C-230-332-22FAN AXIAL 70X25.2MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,789 |
|
数据手册 |
CFM-70C | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.20mm | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.8dB(A) | 1.44 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015BF-130-224-22FAN AXIAL 50X15.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,516 |
|
数据手册 |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 7.8 CFM (0.218m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 22.4dB(A) | 720 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
