直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-7525C-245-494-22DC BLOWER, 75.2 X 74.2 X 25 MM, Same Sky (Formerly CUI Devices) |
3,693 |
|
数据手册 |
CBM-75C | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.4dB(A) | 6.96 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-135-114-22DC AXIAL FAN, 40 MM SQUARE, 20 M Same Sky (Formerly CUI Devices) |
1,441 |
|
数据手册 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 11.4dB(A) | 0.36 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-155-212-22DC AXIAL FAN, 40 MM SQUARE, 20 M Same Sky (Formerly CUI Devices) |
3,129 |
|
数据手册 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.2dB(A) | 0.72 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-175-306-22DC AXIAL FAN, 40 MM SQUARE, 20 M Same Sky (Formerly CUI Devices) |
2,320 |
|
数据手册 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.6dB(A) | 1.32 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-979433S-125-467-20FAN BLOWER 97X33MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,956 |
|
数据手册 |
CBM-97S | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 39.5dB(A) | 4.68 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-979433S-225-467-20FAN BLOWER 97X33MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,094 |
|
数据手册 |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 39.5dB(A) | 4.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025-13-22FAN AXIAL 80X25.4MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,603 |
|
数据手册 |
CFM-80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 5.16 W | 5100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.195 lb (88.45 g) |
|
CFM-9225-23-22FAN AXIAL 92X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,264 |
|
数据手册 |
CFM-92 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.8dB(A) | 6.72 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.218 lb (98.88 g) |
|
CFM-7015C-050-406-20FAN AXIAL 70X15.5MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
2,782 |
|
数据手册 |
CFM-70C | Box | Active | 5VDC | Square - 70mm L x 70mm H | 15.50mm | - | - | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

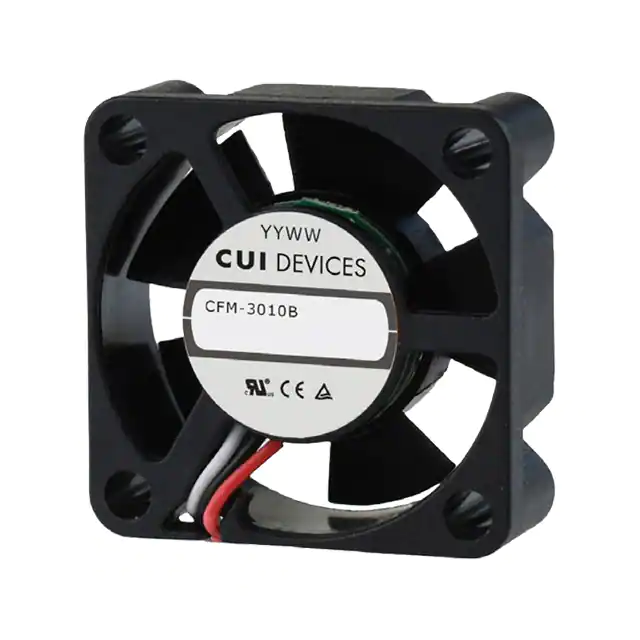

CFM-3010B-1130-373-22FAN AXIAL 30X10.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,116 |
|
数据手册 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.3dB(A) | 2.04 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
