直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-7530CF-120-282-22DC BLOWER, 75.7 X 75.7 X 30 MM, Same Sky (Formerly CUI Devices) |
3,841 |
|
数据手册 |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.2dB(A) | 0.84 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4010B-080-296-22FAN AXIAL 40X10.5MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
4,527 |
|
数据手册 |
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 29.6dB(A) | 1.2 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
6025CF).jpg)
|

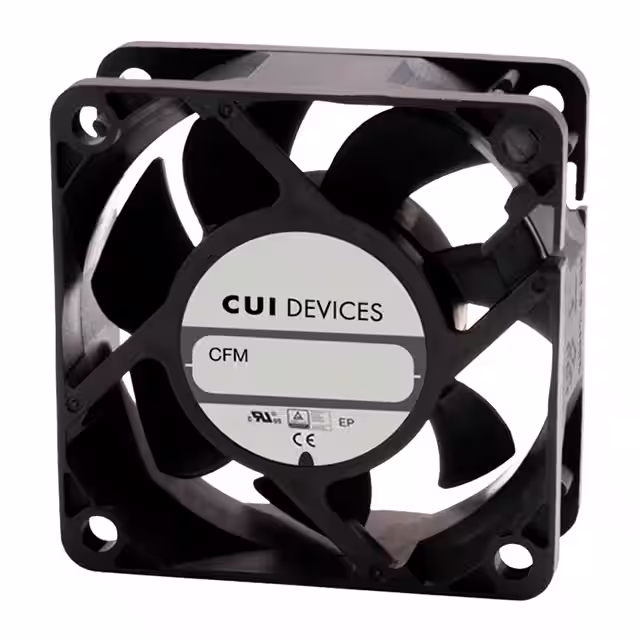

CFM-6025CF-265-408-22FAN AXIAL 60X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,504 |
|
数据手册 |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.9dB(A) | 5.52 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-979433S-230-507FAN BLOWER 97X33MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,829 |
|
数据手册 |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 18.1 CFM (0.507m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | Blower | Auto Restart | 43.5dB(A) | 8.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-979433S-125-467FAN BLOWER 97X33MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,478 |
|
数据手册 |
CBM-97S | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart | 39.5dB(A) | 4.68 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-979433S-225-467FAN BLOWER 97X33MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,903 |
|
数据手册 |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart | 39.5dB(A) | 4.8 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225C-020-350FAN AXIAL 120X25.4MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
1,705 |
|
数据手册 |
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 37.8dB(A) | 2.85 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8010-13-11FAN AXIAL 80X10.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,277 |
|
数据手册 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 10.60mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.2dB(A) | 2.88 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.094 lb (42.64 g) |
|
|
CFM-8010-13-20FAN AXIAL 80X10.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,269 |
|
数据手册 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 10.60mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.2dB(A) | 2.88 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.094 lb (42.64 g) |
(8020CF).jpg)
|
CFM-8020CF-135-346-22FAN AXIAL 80X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,669 |
|
数据手册 |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.7dB(A) | 1.8 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
