直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8020BF-145-401-20FAN AXIAL 80X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,795 |
|
数据手册 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.2dB(A) | 3.6 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020BF-245-401-20FAN AXIAL 80X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,337 |
|
数据手册 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.2dB(A) | 4.32 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-5015BF-175-459-20DC BLOWER, 51.7 X 51.25 X 14.9 M Same Sky (Formerly CUI Devices) |
1,300 |
|
数据手册 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 4.8 CFM (0.134m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 45.9dB(A) | 3.96 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6010-13-10FAN AXIAL 60X10.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,553 |
|
数据手册 |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.60mm | 24.2 CFM (0.678m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 41.4dB(A) | 3.12 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-5010B-155-313-22DC AXIAL FAN, 50 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
3,291 |
|
数据手册 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.8 CFM (0.330m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.3dB(A) | 1.56 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-1100-316-22FAN AXIAL 30X10.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,799 |
|
数据手册 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.6dB(A) | 1.32 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

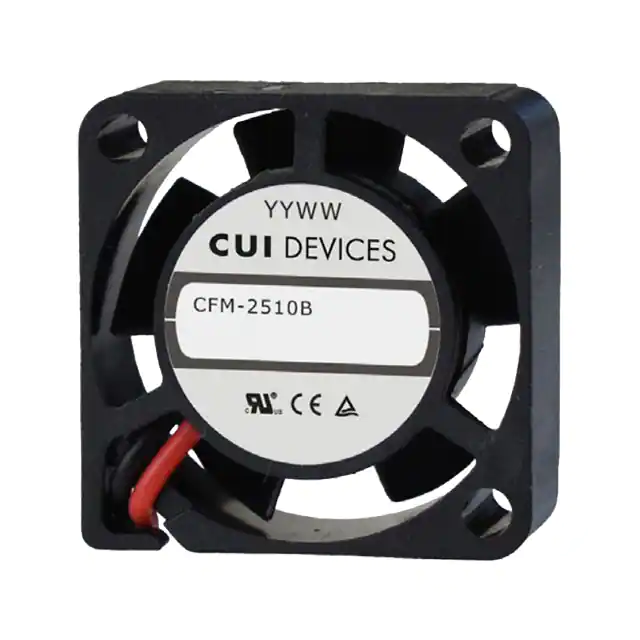

CFM-2510B-170-140-22FAN AXIAL 25X10MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,121 |
|
数据手册 |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 14.1dB(A) | 720 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2510B-0130-275-22FAN AXIAL 25X10MM BALL 5VDC WIRE Same Sky (Formerly CUI Devices) |
4,208 |
|
数据手册 |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.5 CFM (0.070m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.15 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530BF-240-454DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
1,680 |
|
数据手册 |
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Blower | Auto Restart | 45.4dB(A) | 5.52 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-220-282-22DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
2,776 |
|
数据手册 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.2dB(A) | 1.44 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
