直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-3010B-080-267-22FAN AXIAL 30X10.5MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
3,861 |
|
数据手册 |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.8dB(A) | 850 mW | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5020B-160-360DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
3,136 |
|
数据手册 |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 6.1 CFM (0.171m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Blower | Auto Restart | 36.0dB(A) | 3.24 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

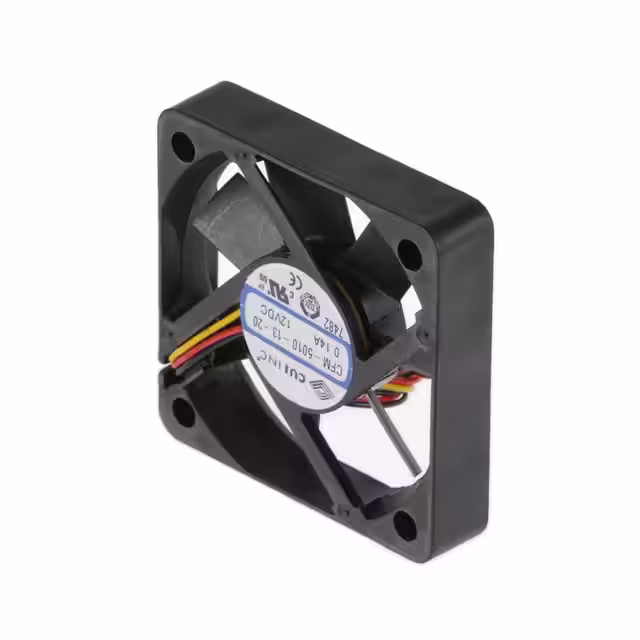

CFM-5010-13-20FAN AXIAL 50X10.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,080 |
|
数据手册 |
CFM-50 | Tray | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.60mm | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 1.68 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
(7025C).jpg)
|
CFM-7015C-150-406-22FAN AXIAL 70X15.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,108 |
|
数据手册 |
CFM-70C | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.6dB(A) | 3.96 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8015-13-22FAN AXIAL 80X15.4MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,300 |
|
数据手册 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 44.0 CFM (1.23m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.8dB(A) | 2.88 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
CFM-7010-13-11FAN AXIAL 70X10.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,179 |
|
数据手册 |
CFM-70 | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 10.60mm | 31.1 CFM (0.871m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.6dB(A) | 3.24 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.083 lb (37.65 g) |
(8020CF).jpg)
|
CFM-8015CF-240-363-22FAN AXIAL 80X15.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,288 |
|
数据手册 |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 5.04 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015CF-140-363-22FAN AXIAL 80X15.4MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,909 |
|
数据手册 |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 6.12 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025BF-165-408FAN AXIAL 60X25.4MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,958 |
|
数据手册 |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart | 40.9dB(A) | 5.04 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
6025CF).jpg)
|
CFM-6025CF-235-274-22FAN AXIAL 60X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,812 |
|
数据手册 |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.92 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
