直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-4007C-035-218-22DC BLOWER, 40 MM SQUARE, 7 MM, 5 Same Sky (Formerly CUI Devices) |
3,645 |
|
数据手册 |
CBM-40C | Box | Active | 5VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.0 CFM (0.028m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.8dB(A) | 300 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020V-245-335FAN AXIAL 60X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,742 |
|
数据手册 |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 25.5 CFM (0.714m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 39.0dB(A) | 2.09 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-6025V-231-167-11FAN AXIAL 60X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,305 |
|
数据手册 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 16.7dB(A) | 680 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-238-220-11FAN AXIAL 60X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,302 |
|
数据手册 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 22.0dB(A) | 920 mW | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-245-270-11FAN AXIAL 60X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,592 |
|
数据手册 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.0dB(A) | 1.4 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-252-312-11FAN AXIAL 60X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,058 |
|
数据手册 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 31.2dB(A) | 2.21 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|

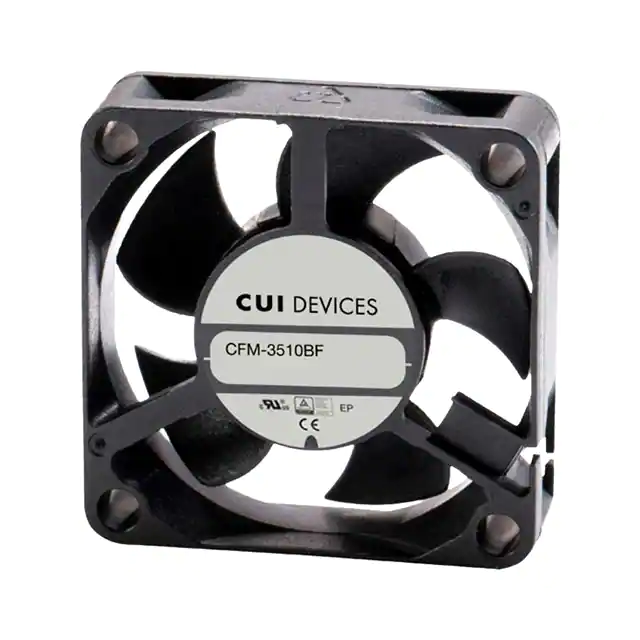

CFM-3510BF-160-188-22FAN AXIAL 35X10.3MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,027 |
|
数据手册 |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 3.9 CFM (0.109m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 18.8dB(A) | 720 mW | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-3510BF-170-222-22FAN AXIAL 35X10.3MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,544 |
|
数据手册 |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 22.3dB(A) | 1.08 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-1100-316-20FAN AXIAL 30X10.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,642 |
|
数据手册 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.6dB(A) | 1.32 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-2510B-070-140-20FAN AXIAL 25X10MM BALL 5VDC WIRE Same Sky (Formerly CUI Devices) |
2,577 |
|
数据手册 |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 14.1dB(A) | 600 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
