直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-3507CF-065-219-22DC BLOWER, 35 MM SQUARE, 10 MM, Same Sky (Formerly CUI Devices) |
1,503 |
|
数据手册 |
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 0.830 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.9dB(A) | 1 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5020C-140-305-22DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
1,197 |
|
数据手册 |
CBM-50C | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 4.1 CFM (0.115m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 30.5dB(A) | 1.08 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-3507CF-185-295-22DC BLOWER, 35 MM SQUARE, 10 MM, Same Sky (Formerly CUI Devices) |
4,475 |
|
数据手册 |
CBM-35CF | Box | Active | 12VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 1.1 CFM (0.031m³/min) | 0.500 in H2O (124.5 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.5dB(A) | 1.8 W | 8500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5020C-150-320-22DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
1,788 |
|
数据手册 |
CBM-50C | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 5.1 CFM (0.143m³/min) | 0.440 in H2O (109.6 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 32.0dB(A) | 2.04 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-3507CF-085-295-22DC BLOWER, 35 MM SQUARE, 10 MM, Same Sky (Formerly CUI Devices) |
2,514 |
|
数据手册 |
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 1.1 CFM (0.031m³/min) | 0.500 in H2O (124.5 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.5dB(A) | 1.9 W | 8500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

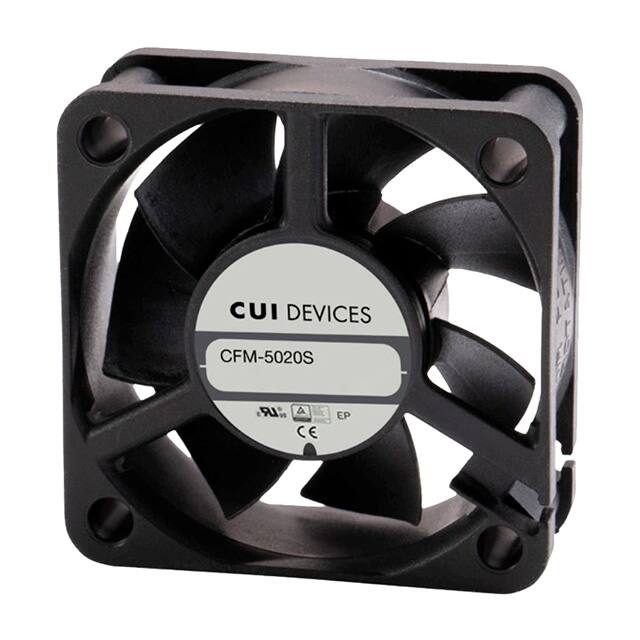

CFM-5020S-145-323-22FAN AXIAL 50X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,225 |
|
数据手册 |
CFM-50S | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 12.1 CFM (0.338m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.3dB(A) | 1.68 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020S-130-235-22FAN AXIAL 50X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,249 |
|
数据手册 |
CFM-50S | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 8.1 CFM (0.227m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 23.5dB(A) | 960 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2006CF-0150-277DC AXIAL FAN, 20 MM SQUARE, 6 MM Same Sky (Formerly CUI Devices) |
4,986 |
|
数据手册 |
CFM-20CF | Box | Active | 5VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.820 CFM (0.023m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.8dB(A) | 1 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020V-260-210-11FAN AXIAL 40X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,221 |
|
数据手册 |
CFM-40V | Tray | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.0dB(A) | 720 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-5010B-135-215DC AXIAL FAN, 50 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
1,056 |
|
数据手册 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 7.5 CFM (0.210m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart | 21.5dB(A) | 0.48 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
