直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-3010B-180-267-22FAN AXIAL 30X10.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,652 |
|
数据手册 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.8dB(A) | 1.08 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-2010CF-0120-217-22DC AXIAL FAN, 20 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
1,731 |
|
数据手册 |
CFM-20CF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.30mm | 1.1 CFM (0.031m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.7dB(A) | 750 mW | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6015BF-225-204FAN AXIAL 60X15.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,116 |
|
数据手册 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 11.0 CFM (0.308m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart | 20.5dB(A) | 960 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6015BF-245-332FAN AXIAL 60X15.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,045 |
|
数据手册 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 33.2dB(A) | 2.16 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

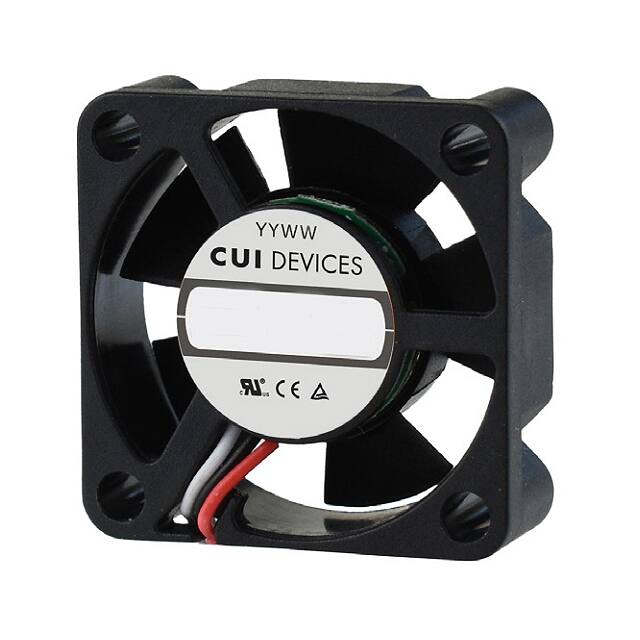

CFM-3010B-180-267FAN AXIAL 30X10.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,876 |
|
数据手册 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart | 26.8dB(A) | 1.08 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5020B-145-323FAN AXIAL 50X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,248 |
|
数据手册 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 12.2 CFM (0.342m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 32.3dB(A) | 1.44 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020B-130-235FAN AXIAL 50X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,614 |
|
数据手册 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 8.1 CFM (0.227m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart | 23.5dB(A) | 600 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

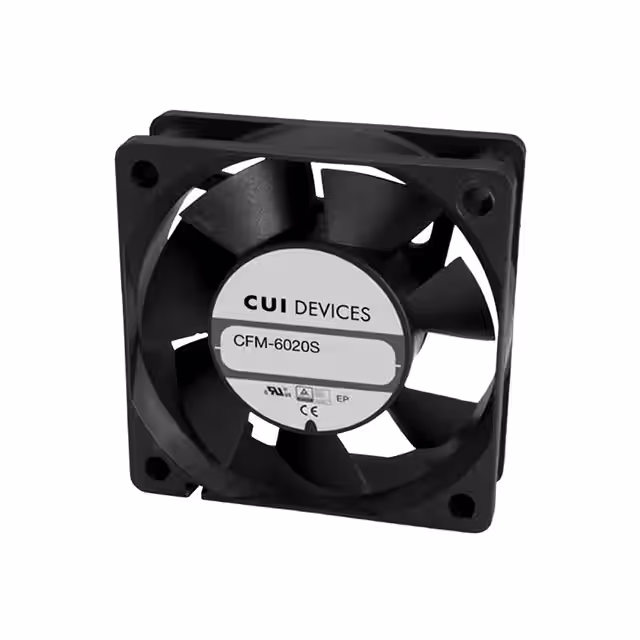

CFM-6020S-130-257-22FAN AXIAL 60X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,325 |
|
数据手册 |
CFM-60S | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.7dB(A) | 960 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020S-040-320-22FAN AXIAL 60X20MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
2,784 |
|
数据手册 |
CFM-60S | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.05 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020S-030-257-22FAN AXIAL 60X20MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
1,946 |
|
数据手册 |
CFM-60S | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.7dB(A) | 700 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
