直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6010C-130-215-22DC AXIAL FAN, 60 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
1,609 |
|
数据手册 |
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 8.5 CFM (0.238m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.5dB(A) | 720 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8015V-124-308-20FAN AXIAL 80X15MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,423 |
|
数据手册 |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.8dB(A) | 1.25 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
|
CFM-4015C-275-287-20DC AXIAL FAN, 40 MM SQUARE, 15 M Same Sky (Formerly CUI Devices) |
3,286 |
|
数据手册 |
CFM-40C | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 8.4 CFM (0.235m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.7dB(A) | 1.2 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

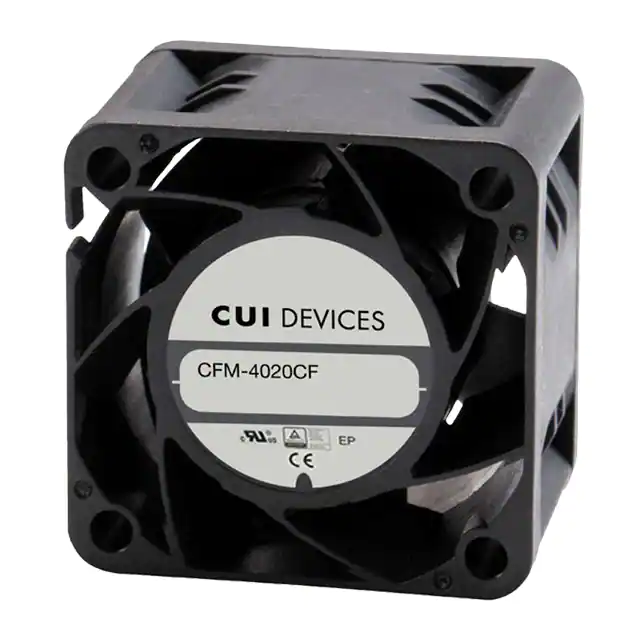

CFM-4020CF-295-342-22FAN AXIAL 40X20MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,163 |
|
数据手册 |
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.2dB(A) | 360 mW | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525C-135-416DC BLOWER, 75.2 X 74.2 X 25 MM, Same Sky (Formerly CUI Devices) |
2,958 |
|
数据手册 |
CBM-75C | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 10.2 CFM (0.286m³/min) | 0.550 in H2O (137.0 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 41.6dB(A) | 3.36 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525C-235-416DC BLOWER, 75.2 X 74.2 X 25 MM, Same Sky (Formerly CUI Devices) |
2,302 |
|
数据手册 |
CBM-75C | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 10.2 CFM (0.286m³/min) | 0.550 in H2O (137.0 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 41.6dB(A) | 3.36 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525C-125-301DC BLOWER, 75.2 X 74.2 X 25 MM, Same Sky (Formerly CUI Devices) |
1,634 |
|
数据手册 |
CBM-75C | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 30.1dB(A) | 1.2 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525C-225-301DC BLOWER, 75.2 X 74.2 X 25 MM, Same Sky (Formerly CUI Devices) |
4,264 |
|
数据手册 |
CBM-75C | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 30.1dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-195-342-22DC AXIAL FAN, 40 MM SQUARE, 20 M Same Sky (Formerly CUI Devices) |
3,422 |
|
数据手册 |
CFM-40CF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.2dB(A) | 1.92 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020C-230-217-22DC AXIAL FAN, 50 MM SQUARE, 20 M Same Sky (Formerly CUI Devices) |
3,315 |
|
数据手册 |
CFM-50C | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 9.1 CFM (0.255m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.7dB(A) | 0.72 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
