直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8020V-130-350-20FAN AXIAL 80X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,545 |
|
数据手册 |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 33.1 CFM (0.927m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 1.32 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|

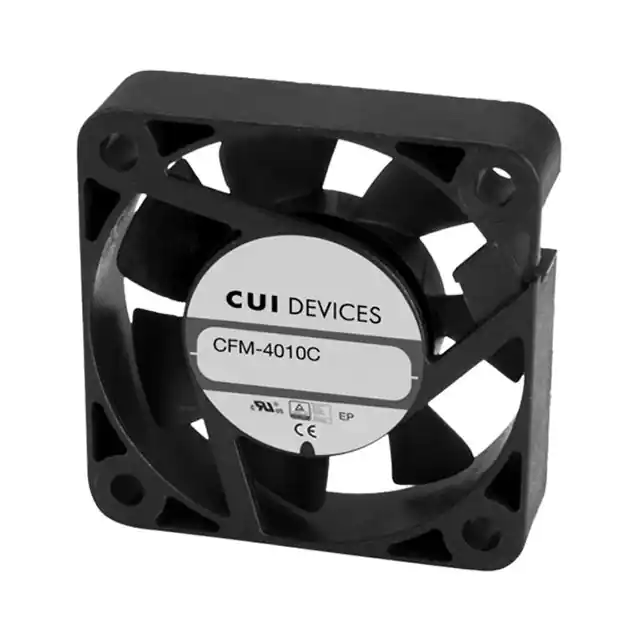

CFM-4010C-280-296-22FAN AXIAL 40X10.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,207 |
|
数据手册 |
CFM-40C | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 29.6dB(A) | 1.44 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4015C-165-256-22DC AXIAL FAN, 40 MM SQUARE, 15 M Same Sky (Formerly CUI Devices) |
3,117 |
|
数据手册 |
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 7.3 CFM (0.204m³/min) | 0.220 in H2O (55.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.6dB(A) | 0.96 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015C-175-287-22DC AXIAL FAN, 40 MM SQUARE, 15 M Same Sky (Formerly CUI Devices) |
3,968 |
|
数据手册 |
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 8.4 CFM (0.235m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.7dB(A) | 1.2 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2006CF-160-078-22DC AXIAL FAN, 20 MM SQUARE, 6 MM Same Sky (Formerly CUI Devices) |
1,486 |
|
数据手册 |
CFM-20CF | Box | Active | 12VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.330 CFM (0.009m³/min) | 0.020 in H2O (4.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 7.9dB(A) | 370 mW | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-240-454DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
3,181 |
|
数据手册 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 45.4dB(A) | 5.52 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-140-454DC BLOWER, 75.7 X 75.7 X 30 MM, Same Sky (Formerly CUI Devices) |
3,322 |
|
数据手册 |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.640 in H2O (159.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 48.1dB(A) | 4.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010C-170-361-22DC AXIAL FAN, 50 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
2,069 |
|
数据手册 |
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 14.0 CFM (0.392m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.5dB(A) | 1.8 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015V-127-320-20FAN AXIAL 80X15MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,430 |
|
数据手册 |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.79 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
|
CFM-6010C-140-278-22DC AXIAL FAN, 60 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
2,541 |
|
数据手册 |
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 12.2 CFM (0.342m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 1.44 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
