直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

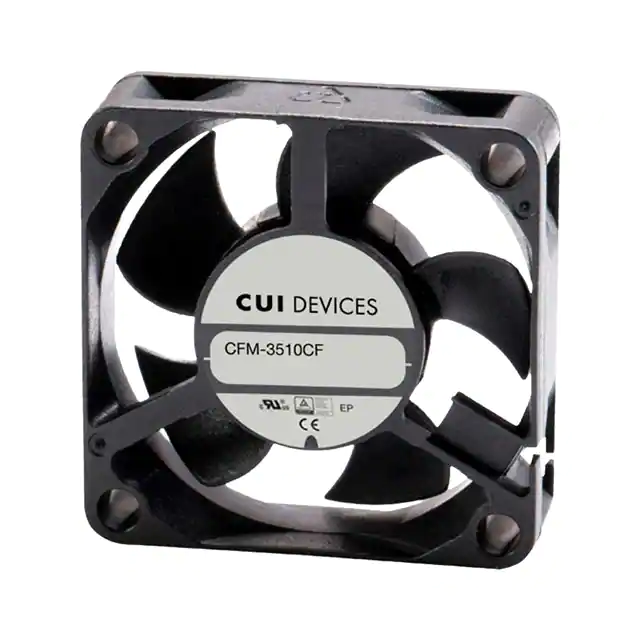

CFM-3510CF-190-277-22FAN AXIAL 35X10.3MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,061 |
|
数据手册 |
CFM-35CF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 5.9 CFM (0.165m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 27.7dB(A) | 1.44 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-7530CF-230-404DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
3,410 |
|
数据手册 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 9.9 CFM (0.277m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 40.4dB(A) | 3.36 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-130-404DC BLOWER, 75.7 X 75.7 X 30 MM, Same Sky (Formerly CUI Devices) |
3,869 |
|
数据手册 |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 10.1 CFM (0.283m³/min) | 0.330 in H2O (82.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 40.4dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010C-155-313-22DC AXIAL FAN, 50 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
4,112 |
|
数据手册 |
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.8 CFM (0.330m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.3dB(A) | 1.56 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010C-135-215-22DC AXIAL FAN, 50 MM SQUARE, 10 M Same Sky (Formerly CUI Devices) |
3,956 |
|
数据手册 |
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 7.5 CFM (0.210m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.5dB(A) | 0.48 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2507CF-1100-240-22DC AXIAL FAN, 25 MM SQUARE, 7 MM Same Sky (Formerly CUI Devices) |
1,631 |
|
数据手册 |
CFM-25CF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.00mm | 2.2 CFM (0.061m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 24.1dB(A) | 1.32 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015V-247-290-11FAN AXIAL 50X15MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,001 |
|
数据手册 |
CFM-50V | Tray | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 0.82 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.083 lb (37.65 g) |
|
|
CFM-5015V-258-330-11FAN AXIAL 50X15MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,113 |
|
数据手册 |
CFM-50V | Tray | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.23 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.083 lb (37.65 g) |
|
CFM-4010C-265-251-20FAN AXIAL 40X10.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,479 |
|
数据手册 |
CFM-40C | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.1dB(A) | 1.2 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-220-282-20DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
2,638 |
|
数据手册 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 28.2dB(A) | 1.44 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
