电动执行器/气缸
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L12-30-210-6-SL12-S MICRO LINEAR ACTUATOR |
2,237 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | Limit Switches | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

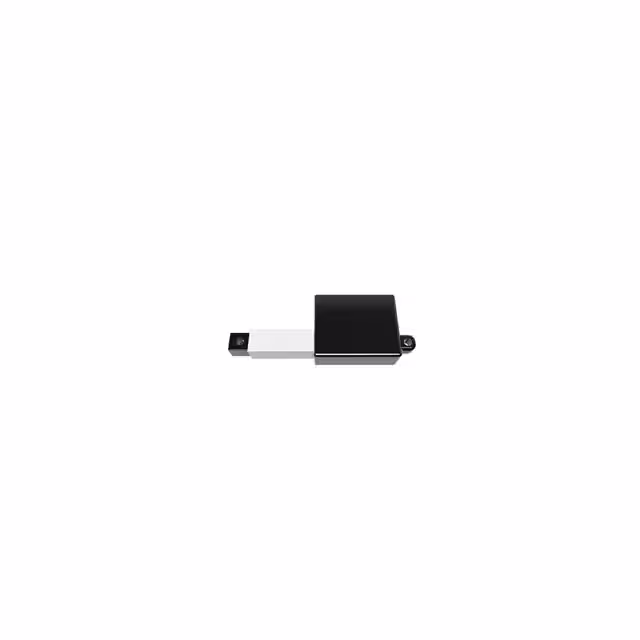

P8-25-49-3-STP8-ST Micro Stepper Actuator |
1,905 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 0.984" (25.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 49 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
P8-75-49-3-STP8-ST Micro Stepper Actuator |
1,455 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 2.953" (75.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 49 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-50-35-12-SL16-S MINIATURE LINEAR ACTUATOR |
4,075 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
P16-50-256-12-SP16-S LINEAR ACTUATOR |
1,988 |
|
数据手册 |
P16 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 67.44lbf (300.0N) | 122.40lbf (500.0N) | 0.19 in/s (4.8 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 256 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
P16-50-22-12-SP16-S LINEAR ACTUATOR |
4,344 |
|
数据手册 |
P16 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 11.24lbf (50.0N) | 122.40lbf (500.0N) | 1.81 in/s (46.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 22 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
P16-50-64-12-SP16-S LINEAR ACTUATOR |
2,757 |
|
数据手册 |
P16 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 20.23lbf (90.0N) | 122.40lbf (500.0N) | 0.71 in/s (18.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 64 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-50-150-12-PL16-P MICRO LINEAR ACTUATOR |
3,754 |
|
数据手册 |
L16 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 44.96lbf (200.0N) | 56.20lbf (250.0N) | 0.32 in/s (8.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | - | 150 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
T16-100-64-12-ST16-S MICRO LINEAR ACTUATOR |
1,501 |
|
数据手册 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 20.23lbf (90.0N) | 122.40lbf (500.0N) | 0.71 in/s (18.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | Limit Switches | 64 | - | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
P16-100-256-12-PP16-P MICRO LINEAR ACTUATOR |
3,244 |
|
数据手册 |
P16 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 67.44lbf (300.0N) | 122.40lbf (500.0N) | 0.19 in/s (4.8 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | - | 256 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P16-100-22-12-PP16-P MICRO LINEAR ACTUATOR |
2,717 |
|
数据手册 |
P16 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 11.24lbf (50.0N) | 122.40lbf (500.0N) | 1.81 in/s (46.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | - | 22 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L12-30-100-6-PL12-P MICRO LINEAR ACTUATOR |
2,855 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | - | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L16-140-35-12-PL16-P MICRO LINEAR ACTUATOR |
1,121 |
|
数据手册 |
L16 | Retail Package | Active | Linear Actuator | Brushed | 5.512" (140.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | - | 35 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-10-100-6-PL12-P MICRO LINEAR ACTUATOR |
4,044 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 0.394" (10.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | - | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
T16-200-256-12-ST16-S MICRO LINEAR ACTUATOR |
3,856 |
|
数据手册 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 7.874" (200.00mm) | 67.44lbf (300.0N) | 122.40lbf (500.0N) | 0.19 in/s (4.8 mm/s) | 20% | 12VDC | Ball Screw | ±0.80mm | - | Limit Switches | 256 | - | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
L12-30-210-12-PL12-P MICRO LINEAR ACTUATOR |
2,151 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.20mm | - | - | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-100-210-12-PL12-P MICRO LINEAR ACTUATOR |
2,184 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | - | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-100-210-6-PL12-P MICRO LINEAR ACTUATOR |
3,468 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | - | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P16-150-256-12-PP16-P MICRO LINEAR ACTUATOR |
1,789 |
|
数据手册 |
P16 | Retail Package | Active | Linear Actuator | Brushed | 5.906" (150.00mm) | 67.44lbf (300.0N) | 122.40lbf (500.0N) | 0.19 in/s (4.8 mm/s) | 20% | 12VDC | Ball Screw | ±0.60mm | - | - | 256 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P16-150-64-12-PP16-P MICRO LINEAR ACTUATOR |
1,544 |
|
数据手册 |
P16 | Retail Package | Active | Linear Actuator | Brushed | 5.906" (150.00mm) | 20.23lbf (90.0N) | 122.40lbf (500.0N) | 0.71 in/s (18.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.60mm | - | - | 64 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
