电动执行器/气缸
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ12-100-12-PPQ12-P MICRO LINEAR ACTUATOR |
2,663 |
|
数据手册 |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 11.24lbf (50.0N) | - | 0.39 in/s (10.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | - | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
PQ12-100-6-SPQ12-S MICRO LINEAR ACTUATOR |
1,292 |
|
数据手册 |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 11.24lbf (50.0N) | - | 0.39 in/s (10.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
PQ12-30-12-PPQ12-P MICRO LINEAR ACTUATOR |
1,469 |
|
数据手册 |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 4.05lbf (18.0N) | - | 1.10 in/s (28.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | - | 30 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
PQ12-63-12-SPQ12-S MICRO LINEAR ACTUATOR |
2,599 |
|
数据手册 |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 10.12lbf (45.0N) | - | 0.59 in/s (15.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | Limit Switches | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-100-35-12-SL16-S MINIATURE LINEAR ACTUATOR |
2,471 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | Limit Switches | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-100-63-12-SL16-S MINIATURE LINEAR ACTUATOR |
2,947 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | Limit Switches | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-140-35-12-SL16-S MINIATURE LINEAR ACTUATOR |
2,322 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 5.512" (140.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Limit Switches | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-30-150-12-SL16-S MINIATURE LINEAR ACTUATOR |
1,770 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 44.96lbf (200.0N) | 56.20lbf (250.0N) | 0.32 in/s (8.0 mm/s) | 20% | 12VDC | Ball Screw | - | - | Limit Switches | 150 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

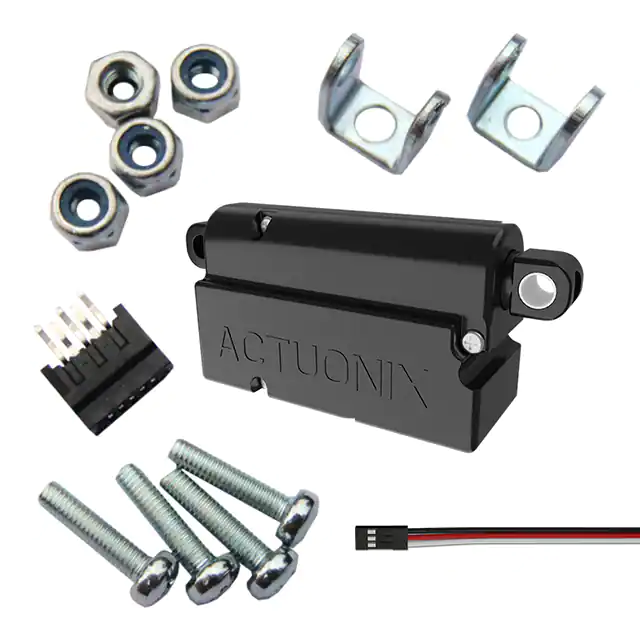

PQ12-30-6-RPQ12-R MICRO LINEAR SERVO |
4,886 |
|
数据手册 |
PQ12 | Bulk | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 4.05lbf (18.0N) | - | 1.10 in/s (28.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | RC Linear Servo | 30 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

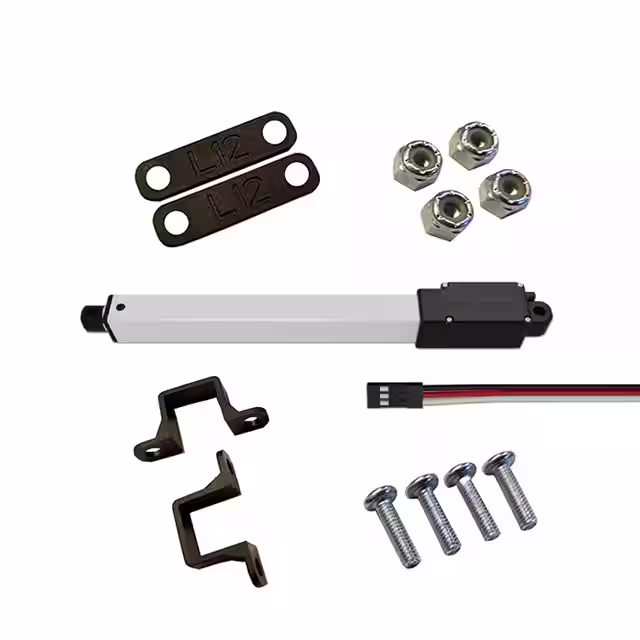

L12-100-210-6-RL12 -R MICRO LINEAR SERVO |
2,120 |
|
数据手册 |
L12 | Bulk | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

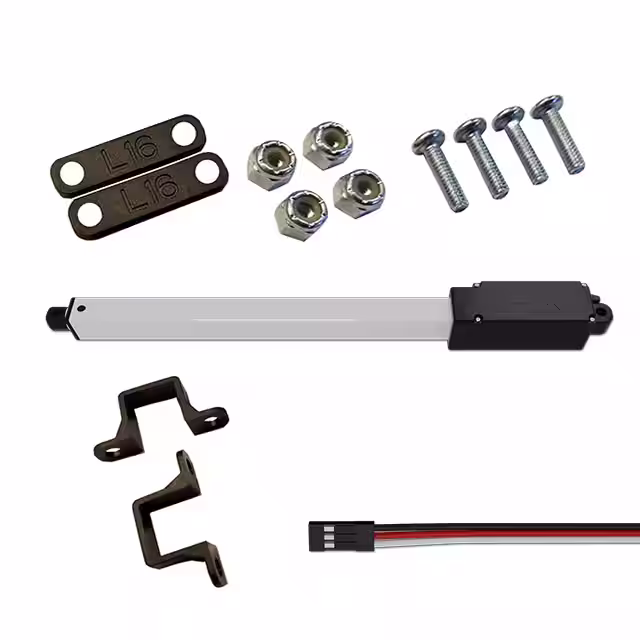

L16-140-35-6-RL16-R MINIATURE LINEAR SERVO |
2,943 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 5.512" (140.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-140-150-6-RL16-R MINIATURE LINEAR SERVO |
3,354 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 5.512" (140.00mm) | 44.96lbf (200.0N) | 56.20lbf (250.0N) | 0.32 in/s (8.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 150 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L12-50-50-6-RL12 -R MICRO LINEAR SERVO |
2,943 |
|
数据手册 |
L12 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | RC Linear Servo | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-30-63-12-SL16-S MINIATURE LINEAR ACTUATOR |
3,653 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 12VDC | Ball Screw | - | - | Limit Switches | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L12-50-210-12-SL12-S MICRO LINEAR ACTUATOR |
4,438 |
|
数据手册 |
L12 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-30-35-12-SL16-S MINIATURE LINEAR ACTUATOR |
2,231 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 12VDC | Ball Screw | - | - | Limit Switches | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L12-10-50-12-SL12-S MICRO LINEAR ACTUATOR |
4,842 |
|
数据手册 |
L12 | Bulk | Active | Linear Actuator | Brushed | 0.394" (10.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | Limit Switches | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-140-63-12-SL16-S MINIATURE LINEAR ACTUATOR |
4,518 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 5.512" (140.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Limit Switches | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L16-140-63-6-RL16-R MINIATURE LINEAR SERVO |
3,062 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 5.512" (140.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

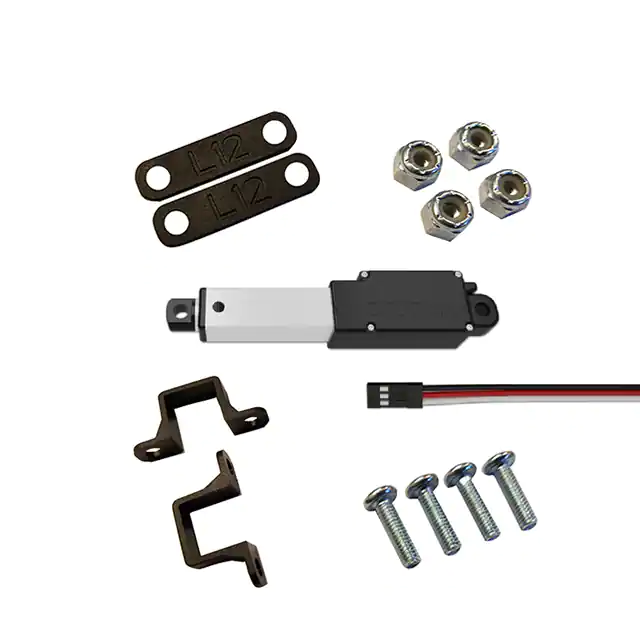

L12-30-50-6-RL12 -R MICRO LINEAR SERVO |
4,758 |
|
数据手册 |
L12 | Bulk | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | Integrated Controller | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
