电动执行器/气缸
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L16-50-150-12-SL16-S MINIATURE LINEAR ACTUATOR |
2,947 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 44.96lbf (200.0N) | 56.20lbf (250.0N) | 0.32 in/s (8.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 150 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L12-50-210-6-RL12 -R MICRO LINEAR SERVO |
4,514 |
|
数据手册 |
L12 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | RC Linear Servo | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

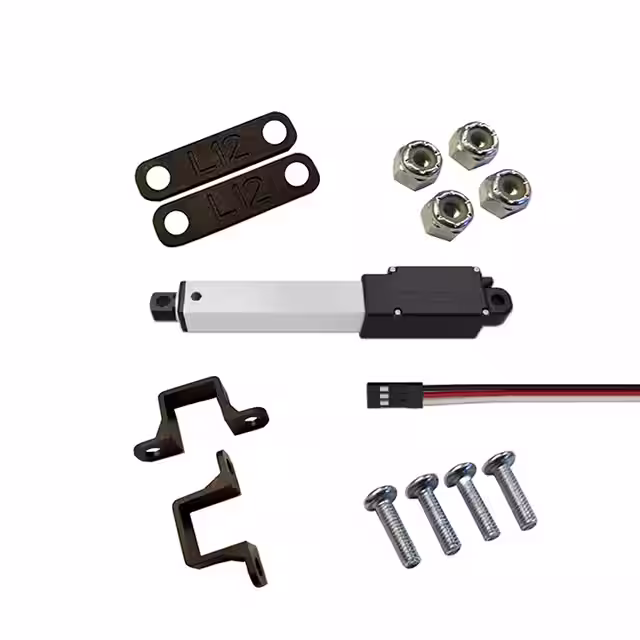

L12-50-100-6-RL12 -R MICRO LINEAR SERVO |
4,731 |
|
数据手册 |
L12 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | RC Linear Servo | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

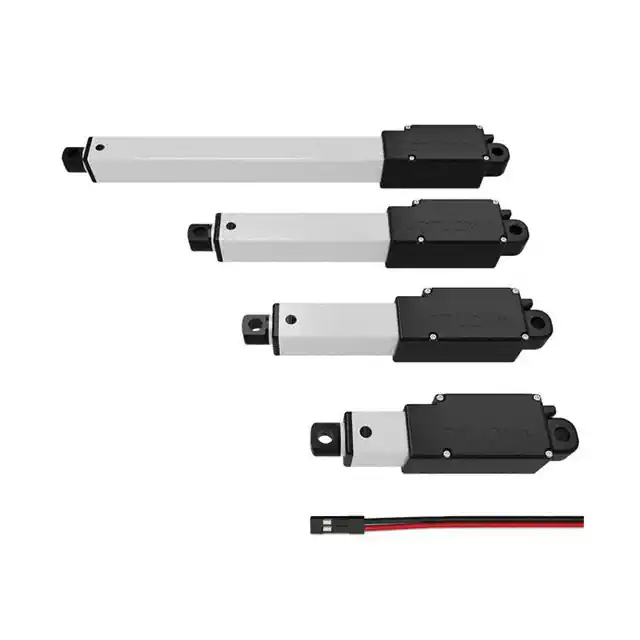

L12-100-210-6-SL12-S MICRO LINEAR ACTUATOR |
1,114 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | Limit Switches | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-30-100-6-SL12-S MICRO LINEAR ACTUATOR |
2,376 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-100-50-6-SL12-S MICRO LINEAR ACTUATOR |
3,539 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | Limit Switches | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-10-50-6-SL12-S MICRO LINEAR ACTUATOR |
1,567 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 0.394" (10.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | Limit Switches | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-50-50-6-SL12-S MICRO LINEAR ACTUATOR |
4,221 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | Limit Switches | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-100-100-6-SL12-S MICRO LINEAR ACTUATOR |
3,402 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-50-210-6-SL12-S MICRO LINEAR ACTUATOR |
3,347 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | Limit Switches | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-30-50-6-SL12-S MICRO LINEAR ACTUATOR |
1,531 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | Limit Switches | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-10-100-6-SL12-S MICRO LINEAR ACTUATOR |
4,614 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 0.394" (10.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-50-100-6-SL12-S MICRO LINEAR ACTUATOR |
1,479 |
|
数据手册 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

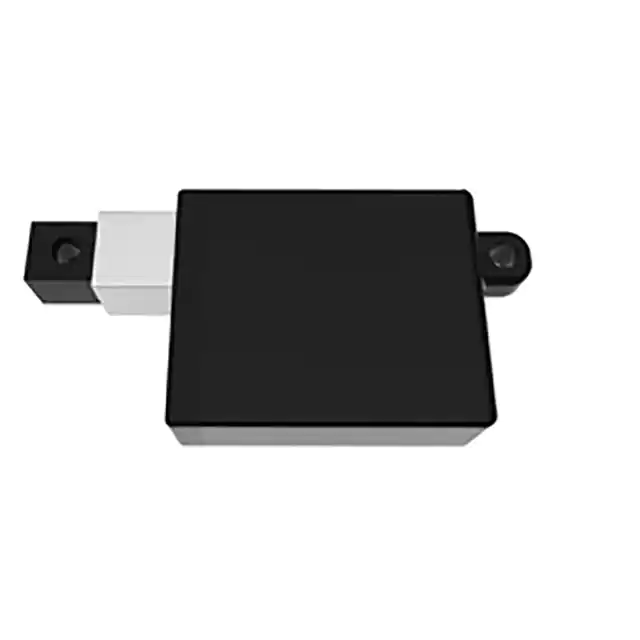

P8-10-49-3-STSTEPPER MTR HYB LINEAR ACT 3.9V |
4,553 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 0.394" (10.00mm) | - | 44.96lbf (200.0N) | - | 100% | 3VDC | Ball Screw | - | - | Includes Controller | 49 | - | Wire Leads | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|

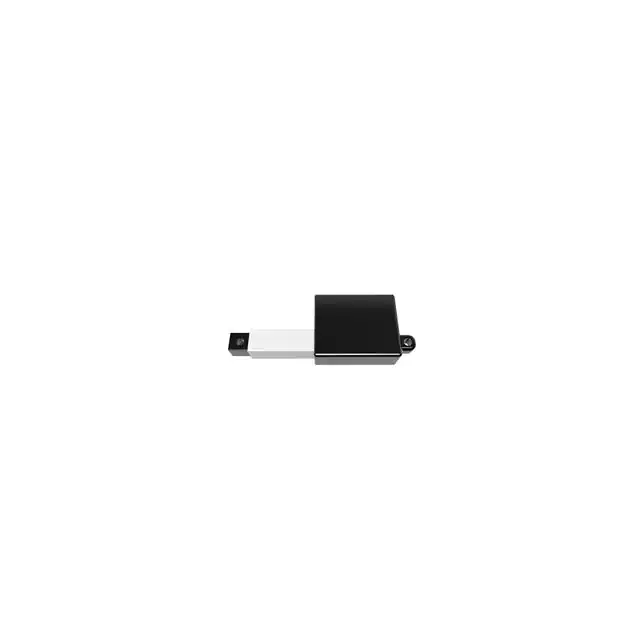

P8-25-165-3-STP8-ST Micro Stepper Actuator |
1,326 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 0.984" (25.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 165 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
P8-50-165-3-STP8-ST Micro Stepper Actuator |
3,974 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 1.969" (50.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 165 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
P8-10-165-3-STP8-ST Micro Stepper Actuator |
2,890 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 0.394" (10.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 165 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
P8-50-49-3-STP8-ST Micro Stepper Actuator |
1,532 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 1.969" (50.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 49 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
P8-100-49-3-STP8-ST Micro Stepper Actuator |
4,419 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 3.937" (100.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 49 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|

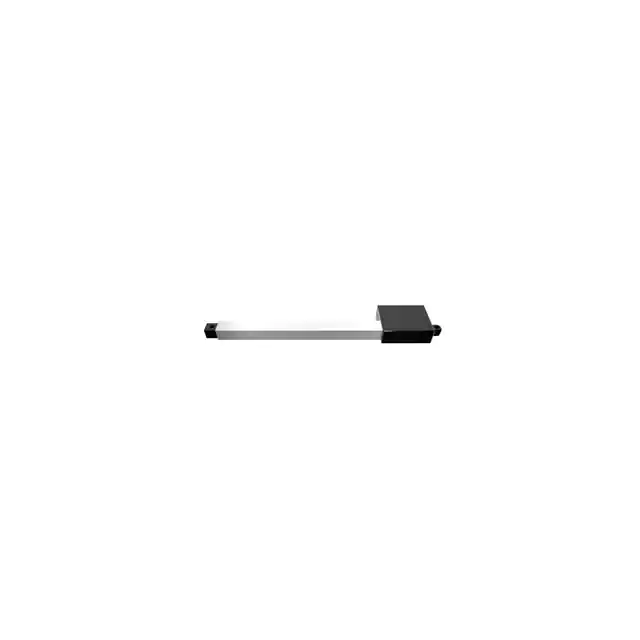

P8-100-165-3-STP8-ST Micro Stepper Actuator |
1,773 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 3.937" (100.00mm) | - | 44.96lbf (200.0N) | - | 100% | 4.2VDC | Ball Screw | - | - | Includes Controller | 165 | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
