DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

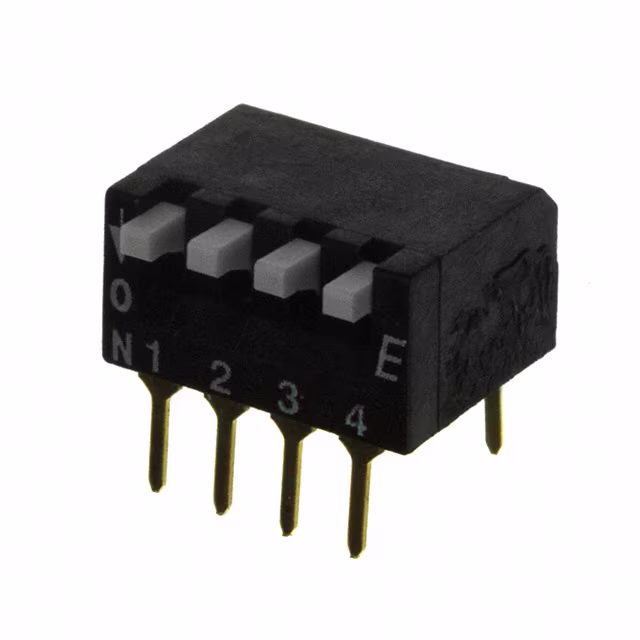

KAR04LAGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
4,856 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

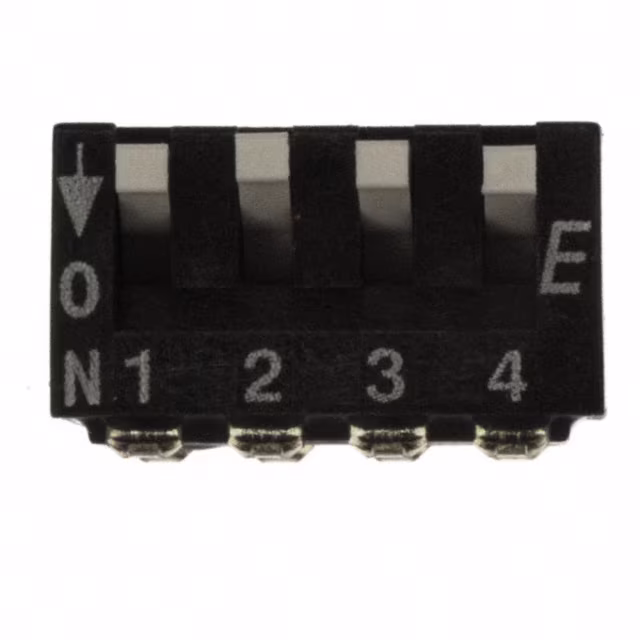

KAR04LGGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
4,099 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

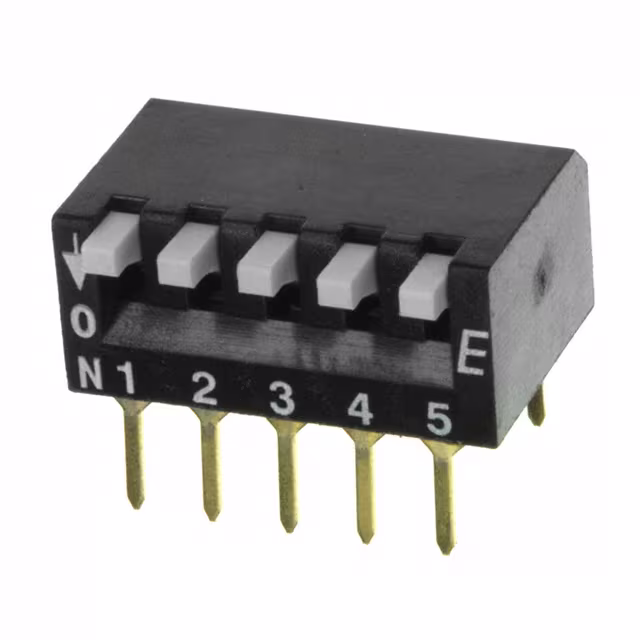

KAR05LAGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
4,929 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

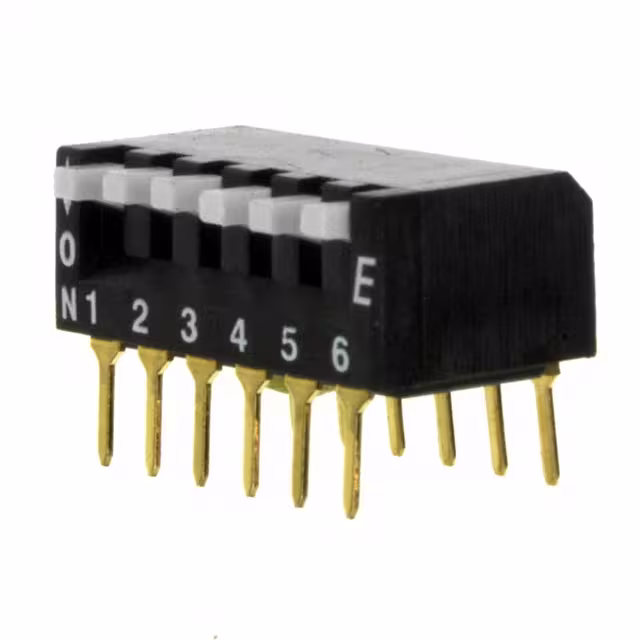

KAR06LAGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
3,348 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
KAR06LGGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
4,954 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

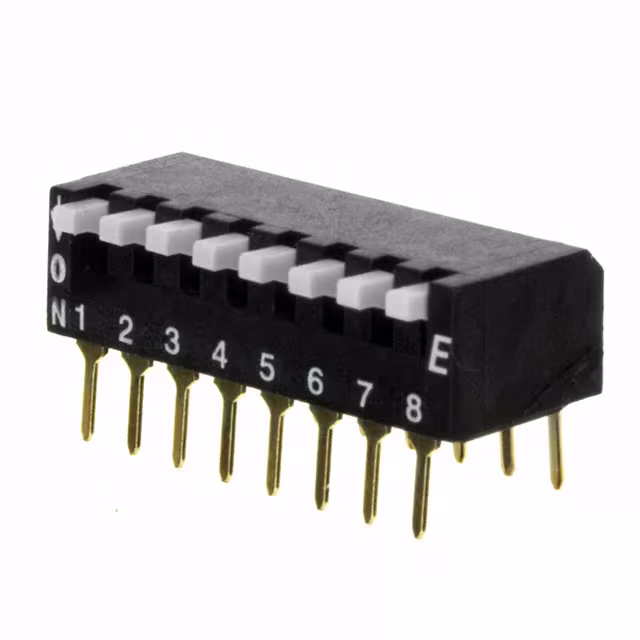

KAR08LAGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
1,724 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

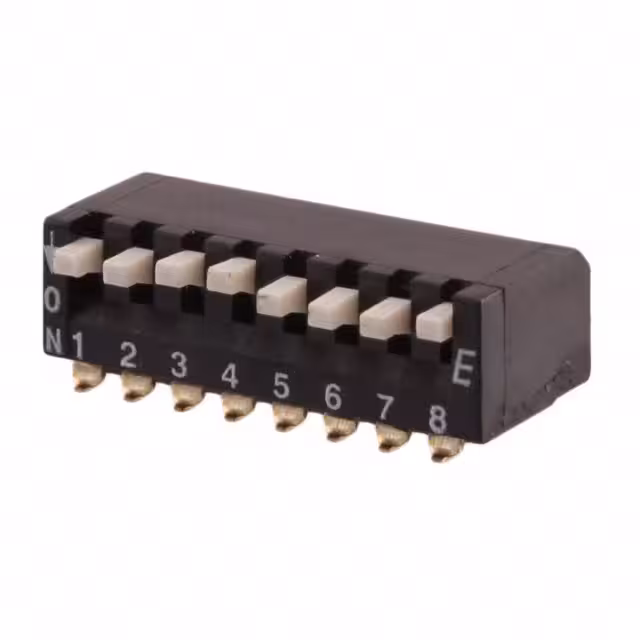

KAR08LGGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
4,761 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

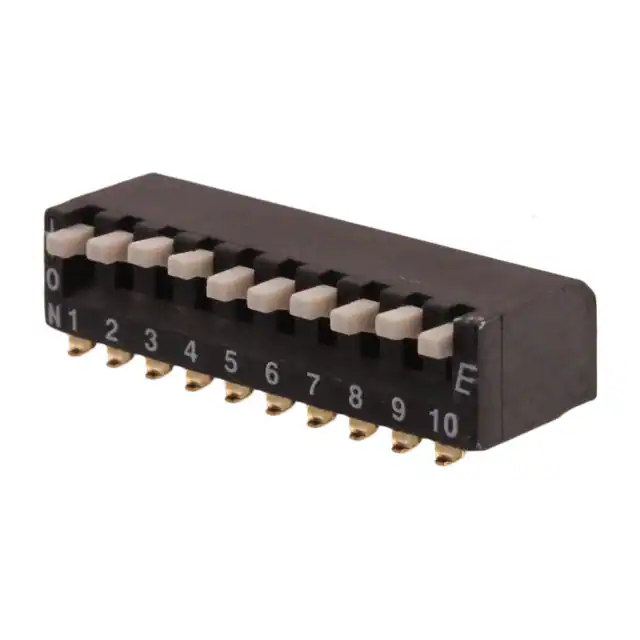

KAR10LGGTSWITCH PIANO DIP SPST 0.025A 24V E-Switch |
1,633 |
|
数据手册 |
KAR | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
KAS1102ETSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
4,883 |
|
数据手册 |
KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

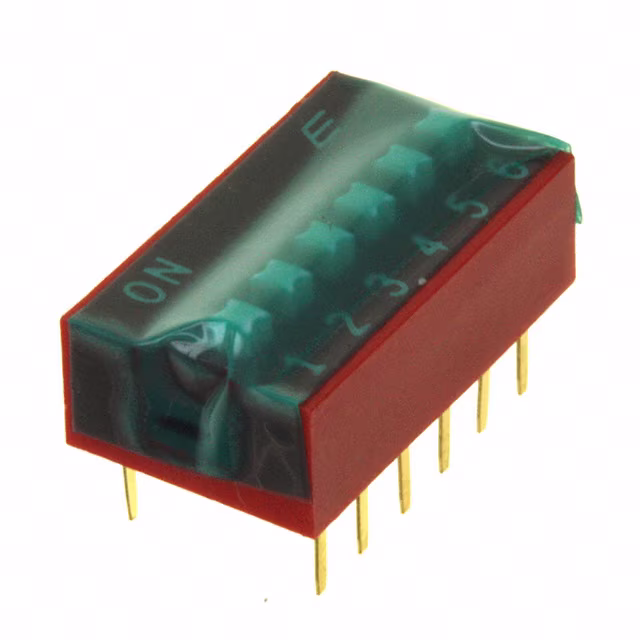

KAS1106ETSWITCH SLIDE DIP SPST 0.025A 24V E-Switch |
2,515 |
|
数据手册 |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
